ASTRA 121 Replacement - Cover for mounting foot
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ASTA-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Replacement part for ASTRA 121 – mounting foot cover

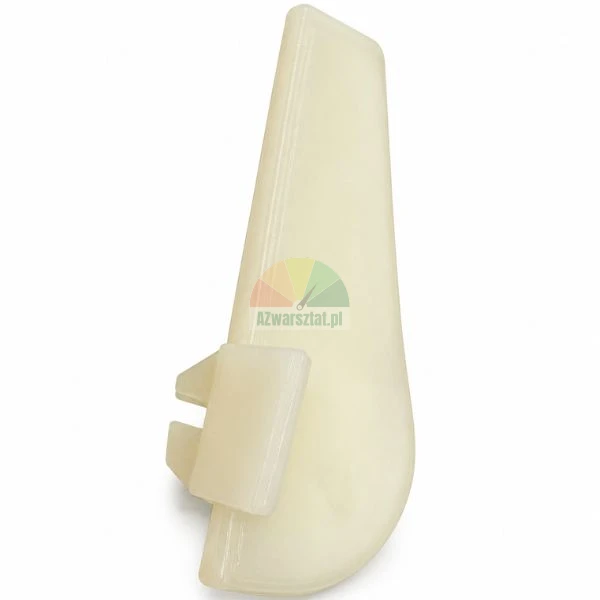

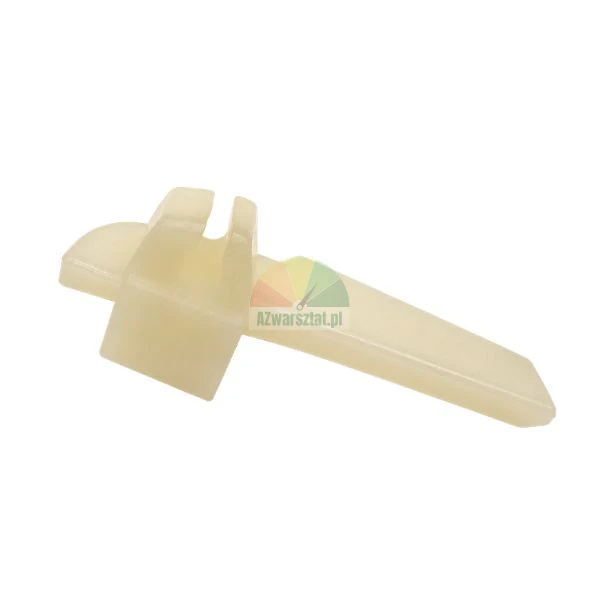

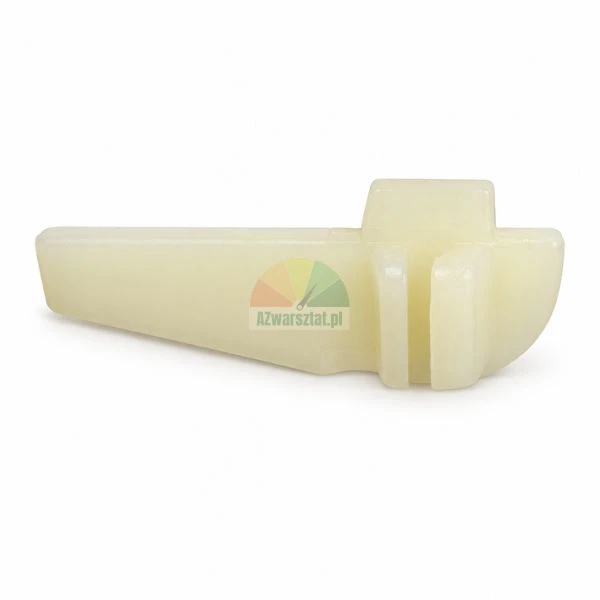

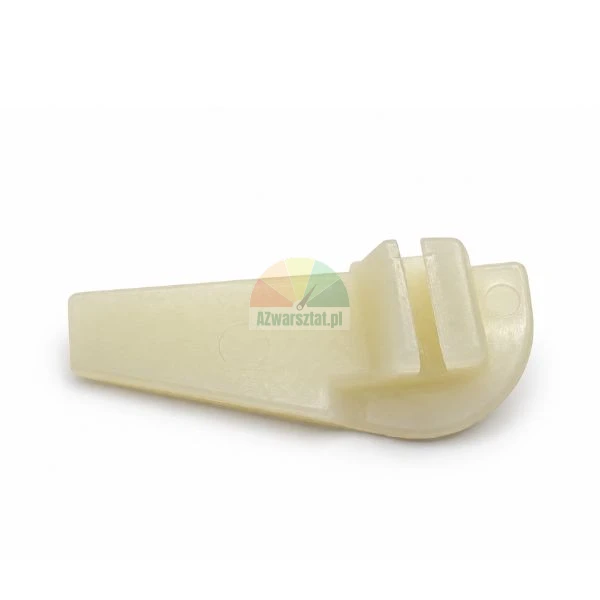

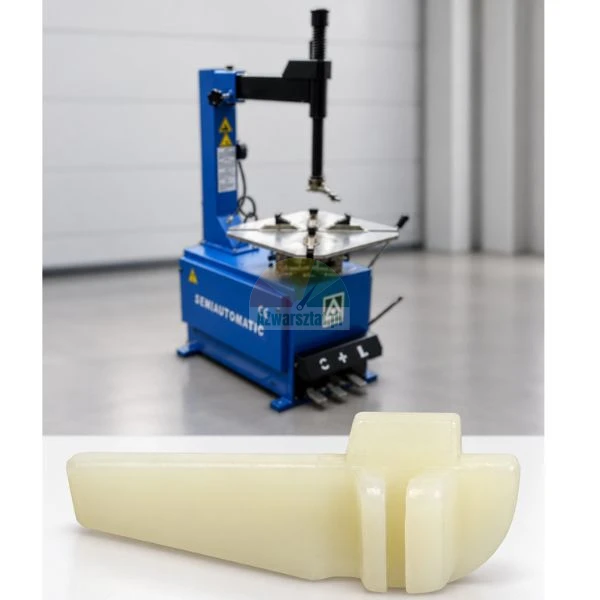

A plastic cover fitted onto the mounting foot of the ASTRA 121 tyre changer. The component operates directly at the point of contact between the mounting foot and the rim, forming a protective layer that separates the metal part of the head from the surface of the rim.
The cover is contoured to fit the mounting foot and features side clips to hold it securely in place. It reduces the risk of scratching painted and alloy rims when sliding the mounting blade under the foot and rotating the mounting table.
This is not a complete mounting foot. It is a replaceable protective cover fitted over the existing foot on the ASTRA 121 tyre changer.
Technical specifications
- Part type: protective cover for mounting foot
- Material: plastic
- Colour: light, translucent
- Fastening: profiled clips that slide onto the foot
- Intended use: ASTRA 121 tyre changer
- Version: replacement
When does the cover need replacing?
In practice, wear often begins with the development of play in the clips. The cover may then shift relative to the foot as the foot passes over the rim flange, even if it does not yet appear cracked from the outside. An early sign is a change in the cover’s position after a few demounting cycles, or a noticeable clicking sound when pressing the foot against the rim.
Replacement is also required if the sliding surface is worn, the guide edge is rounded, or the side latches are cracked or deformed. Damage to the part that runs over the rim flange is particularly dangerous — even a slight displacement of the cover there can expose the metal of the tyre bead.
If recurring, arched scratches appear on the rims in the area where the head operates, one should not limit the investigation to the mounting paste and the operator’s technique. The cause may be a worn cover, its displacement, or contact between the rim and the exposed metal edge of the bead seat.
Implications for other components
Working with a damaged cover accelerates the wear of the mounting foot itself. The metal edge may become polished, develop burrs or become deformed at the point of contact with the rim. Such a burr then damages the new cover from the inside and increases the risk of damage to subsequent rims.
If the cover is not held securely in place, pressing it down further during fitting will not solve the problem — it may simply push the component out of its catches and cause it to fall out whilst the table is rotating. After fitting the replacement, check that the cover fits snugly against the rim flange along its entire length and that there is no noticeable lateral movement.
Selection and fitting
Before ordering, compare the shape of the foot on your machine with the profile shown in the photographs. Among similar tyre changers, there may be covers that look similar but have a different spacing or shape of the clips.
During fitting, the cover should fit onto the foot without the need for trimming, reaming or bending the clips. If excessive force is required, or if the cover remains twisted after fitting, this indicates a mismatch in the profile or damage to the base foot.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
