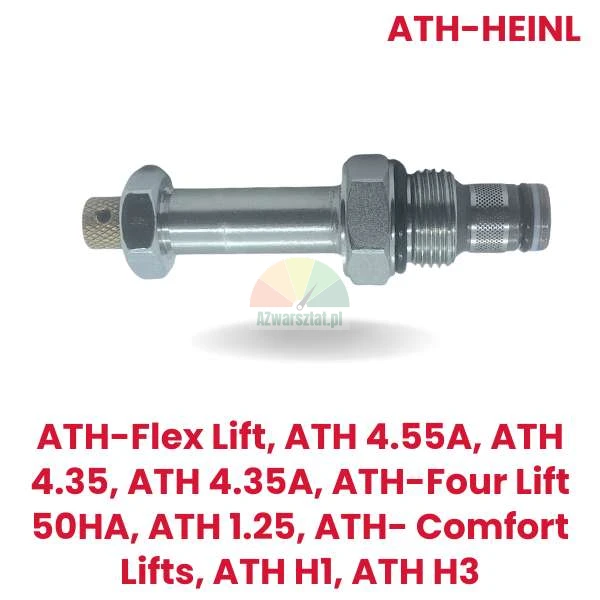

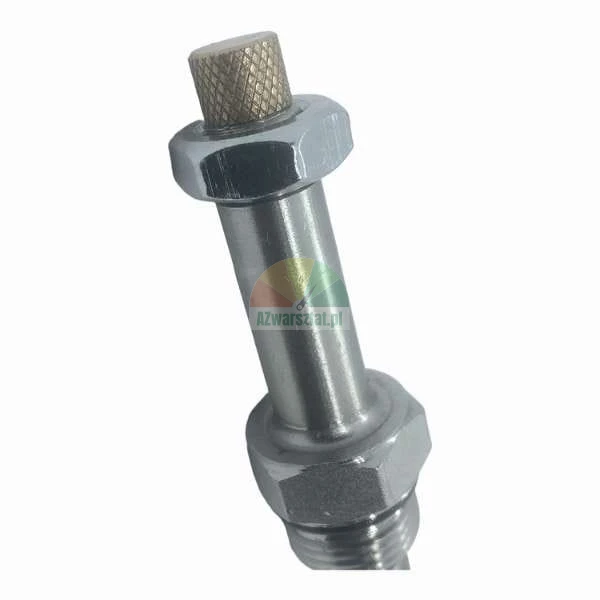

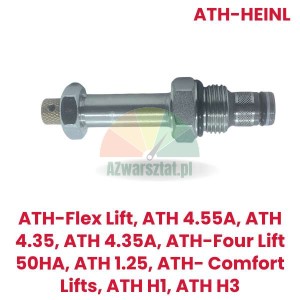

ATH-Heinl replacement: lowering valve for vehicle lifts
High-quality replacement lowering valve for ATH-Heinl vehicle lifts. A key component of the hydraulic system that enables controlled and safe lowering of the vehicle. Ideal if the original valve fails or needs to be replaced.
Compatible with popular models: ATH-Flex Lift, ATH 4.55A, ATH 4.35, ATH 4.35A, ATH-Four Lift 50HA, ATH 1.25, ATH-Comfort Lifts, ATH H1, ATH H3.
Made of durable, corrosion-resistant materials, the valve ensures reliable operation and a long service life. Thanks to the precise fit, no modifications are required for installation - the valve fits directly in place of the original.
Indispensable in emergency situations - enables the lift to be lowered quickly and safely, protecting personnel and vehicle from an uncontrolled fall.
Application and compatibility
- ATH-Flex Lift
- ATH 4.55A
- ATH 4.35
- ATH 4.35A
- ATH-Four Lift 50HA
- ATH 1.25
- ATH-Comfort Lifts
- ATH H1
- ATH H3
Product features
- Type: Lowering valve
- Material: Stainless steel / corrosion-resistant metal
- Application: ATH-Heinl hydraulic vehicle lifts
- Safety: Stable and controlled lowering of the vehicle
- Installation: Easy to install without modification

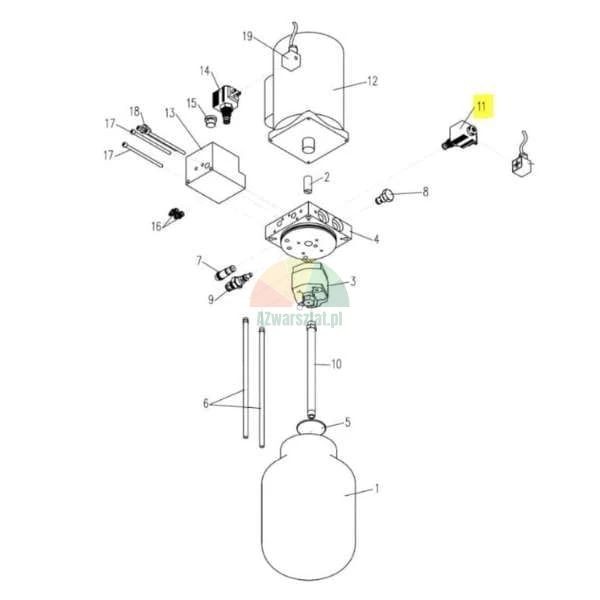

The valve corresponds to position No. 11 on the technical diagram of the ATH-Heinl hydraulic lift system.
An economical and effective solution for workshops that value safety, reliability and fast service. A product tested and recommended by professional service technicians.
Do you have questions or need help selecting parts? Contact our technical department - we will be happy to advise you!
