ATH-Heinl replacement: light barrier (transmitter + receiver) DSH3000
The DSH3000 light barrier is a high-quality replacement for the original ATH-Heinl sensors for use on vehicle lifts, tyre changers and wheel balancers. The set consists of a transmitter and a receiver that form an optical line for obstacle detection - a key component of safety and automatic stop systems.
Compatible with many models of workshop machines - ideal as a replacement for the ATH-Heinl DSH3000 light barrier. Guarantees reliability, precision and ease of installation.
Product highlights:
- Complete set: transmitter and receiver in one package, ready for installation.
- Precise detection: the photoelectric light barrier works reliably even in difficult workshop conditions.
- Safety: immediate shutdown of the machine if the light beam is interrupted.
- Durability and robustness: the robust housing protects the electronics from damage and dirt.
- Easy to install: the compact design and mounting holes allow fast attachment.
- Direct replacement: fully compatible with the original DSH3000.
Technical specifications:
- Type: light barrier (photocell)
- Set composition: Transmitter + receiver
- Cable length: approx. 5 metres
- Sensor housing dimensions: approx. 34 mm x 20 mm x 10 mm
- Mounting type: With screws (2 mounting holes)
- Leads: 4-wire cable (brown, blue, white, black)
- Direction of operation: Sensors facing each other - form an optical line
When you choose the DSH3000 light barrier, you are investing in operational reliability, operational safety and ease of integration into your existing workshop machine system.
Application:
The product is used in:
- ATH-Heinl two-post lifts,
- wheel mounting machines (tyre changers),
- wheel balancers,
- other workshop equipment requiring precise obstacle detection.
Why is it worth it?
- High quality workmanship - durable housing and robust cables
- Direct replacement - fits models with original DSH3000
- Safety - ensures correct operation of the emergency stop system
- Versatile - compatible with a wide range of workshop equipment
The ideal choice for workshops and service centres looking for proven, durable and accurate replacement parts for workshop machinery.
Product photo:

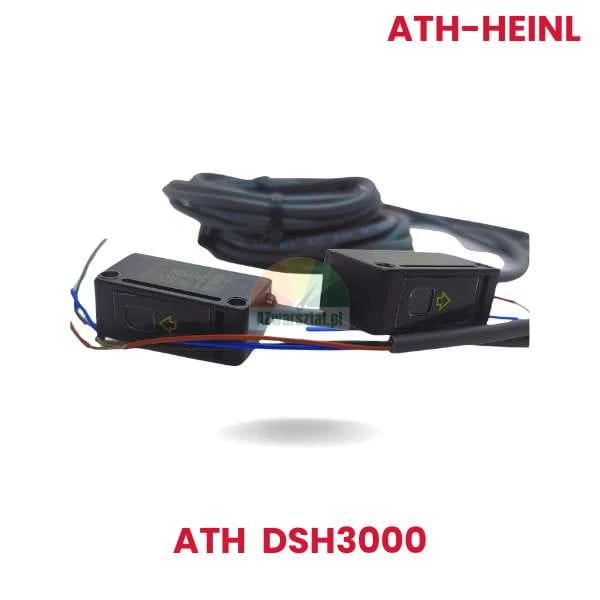

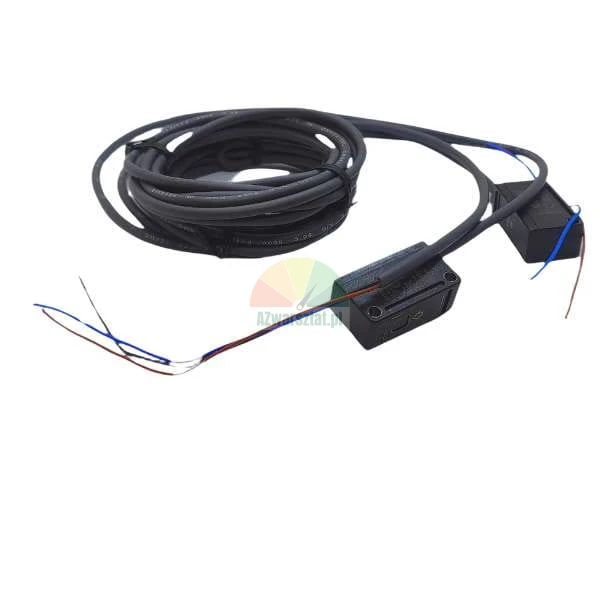

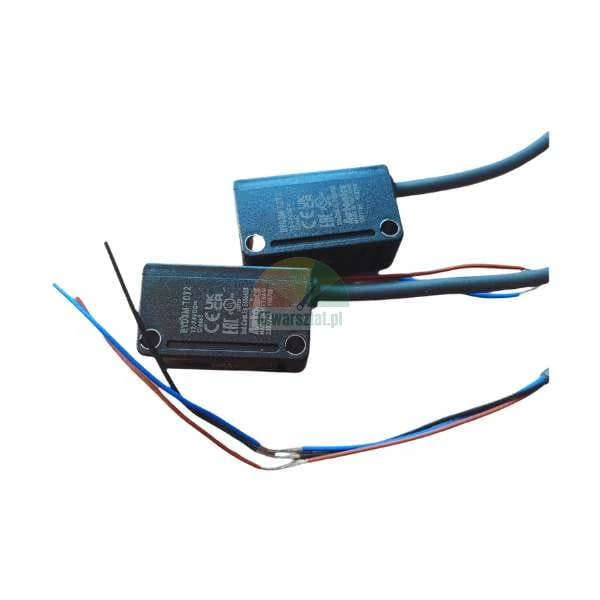

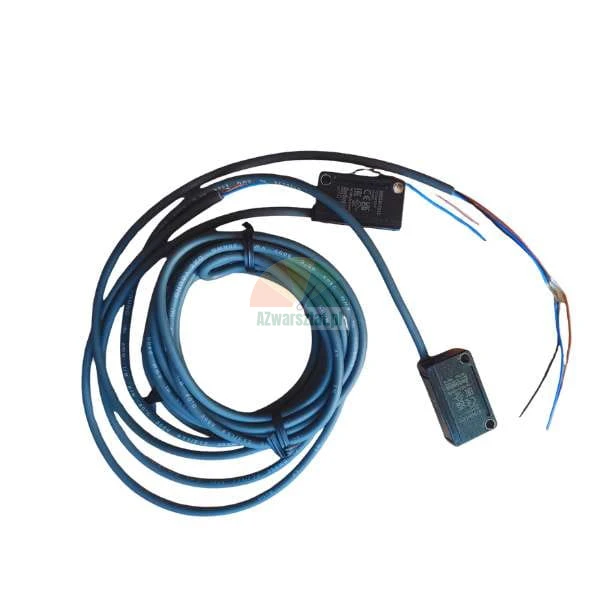

Below is a picture of the DSH3000 light barrier kit - transmitter and receiver. The dimensions of a single sensor are approximately 34 mm x 20 mm x 10 mm.
