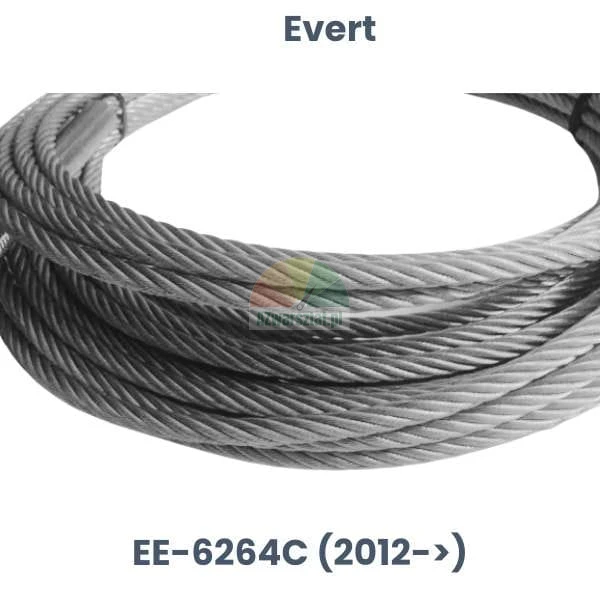

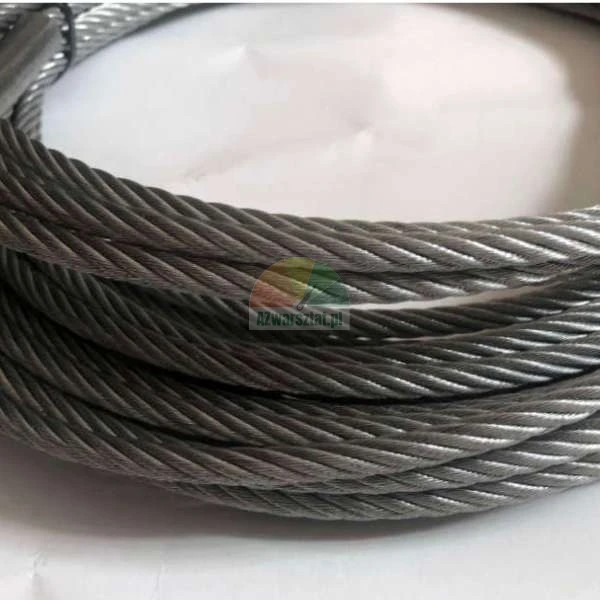

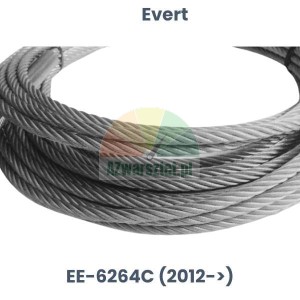

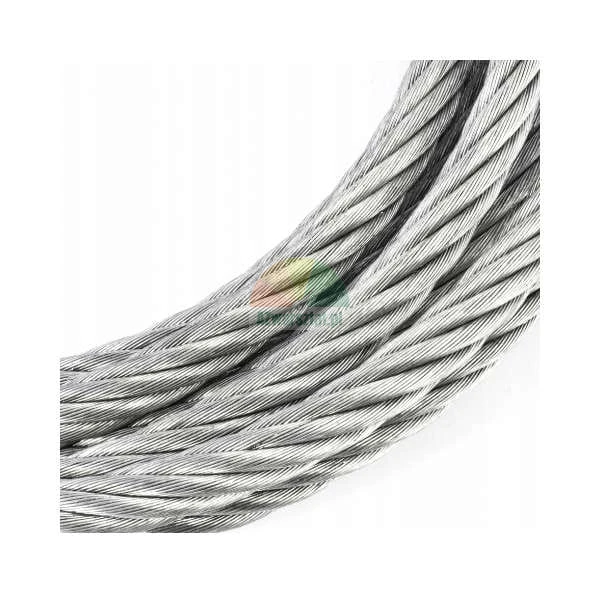

Steel cable for Evert EE-6264C vehicle lift
We offer a high quality replacement steel cable designed for Evert EE-6264C two-post lifts (models manufactured after 2012). The product ensures reliability, safety and full compatibility with original Evert components, meeting the highest quality standards.
The cable is intended for lifts with a load capacity of up to 4000 kg and a lifting height of 1900 mm. Our cables are fully certified - they comply with the Machinery Directive 2006/42/EC and EN ISO 12100, ensuring safe use and trouble-free inspections.
- Intended for: Evert EE-6264C lifts (manufactured after 2012)
- Original number: D3CBB3
- Material: high-strength steel
- EU Declaration of Conformity with applicable European standards included with each cable
- Correct length and diameter - guarantee of a perfect fit
- New product, ready to fit
- Ensures smooth and safe lifting of vehicles
Installation Tip:
2 steel cables are used in each EE-6264C lift. For maximum safety, we recommend replacing both cables at the same time. The price is for one piece - if you want to replace the set, add 2 pieces to your basket!
Why choose our replacement?
- Quality guaranteed - proven, tested and certified product
- Fast shipping from our warehouse in Poland
- Professional technical support
- Competitive price
Regular inspection and replacement of the steel cable significantly prolongs the service life of the lift and minimises the risk of failure during operation. The lifting equipment should be regularly inspected by a competent person, in accordance with applicable regulations and EN ISO 9927-1. By choosing our certified cables, you are assured of safety and compliance with technical and legal requirements.
Product image

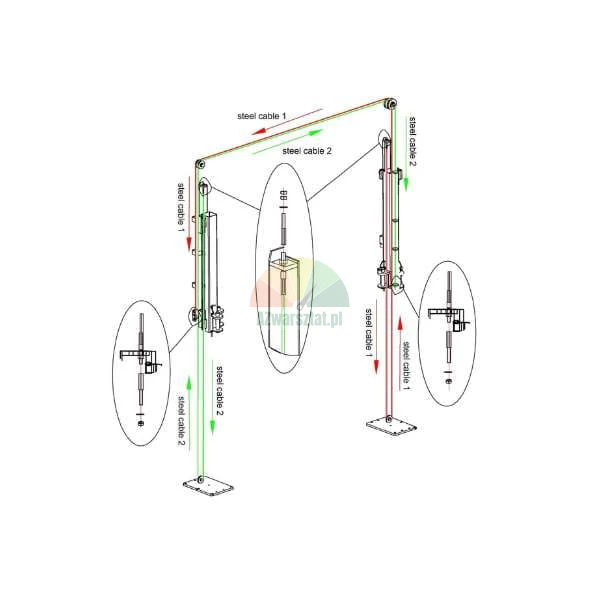

Picture shows: Cable routing diagram
If you have questions about compatibility or installation, please contact our customer service department - we will be happy to help!
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
