Launch replacement: TLT 240SCA/E40 steel elevator rope
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: launch-0003
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

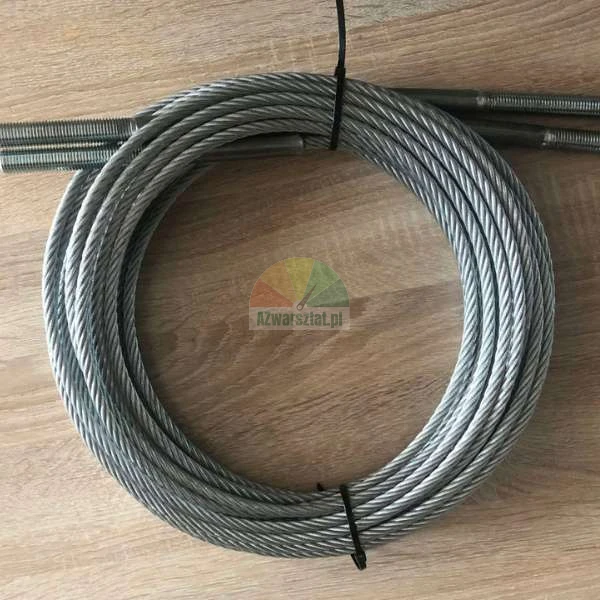

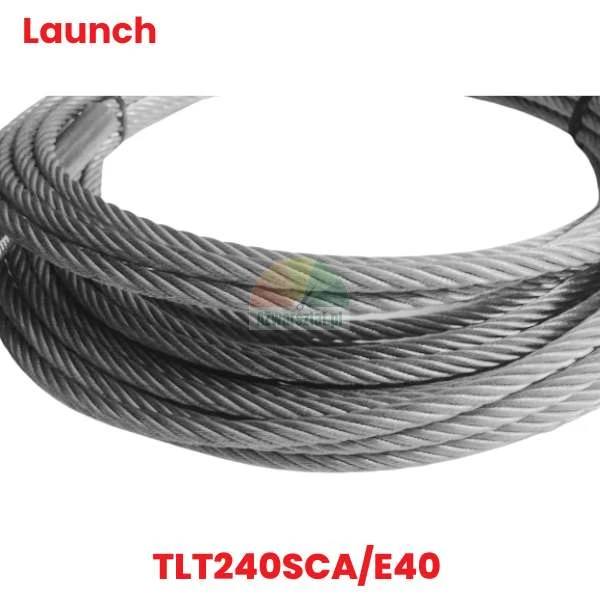

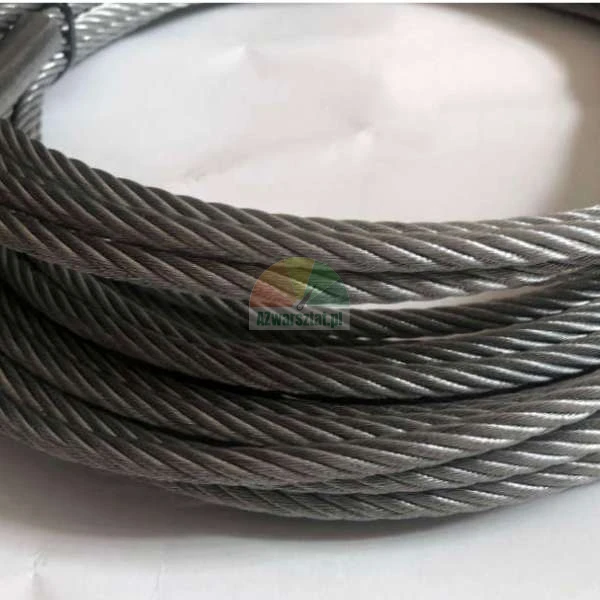

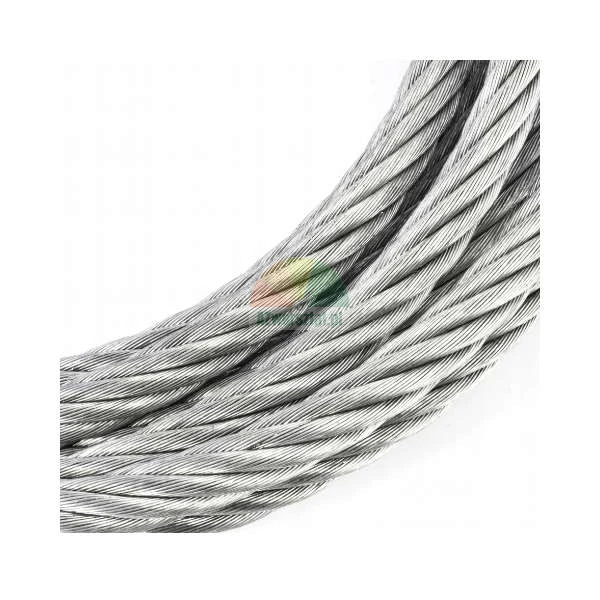

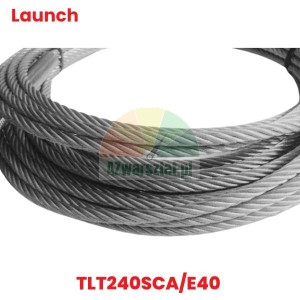

High quality steel cable for the Launch TLT 240SCA/E40 vehicle lift.
We present a professional replacement steel cable dedicated to Launch brand vehicle lifts. The product has been manufactured to the highest quality standards, ensuring its durability and reliability in workshop conditions. The cable is fully compatible with the TLT 240SCA/E40 vehicle lift model.
Safety and Certification
Safety in your workshop is our top priority. Our cables are not only a sturdy construction element, but also a guarantee of peace of mind during technical inspections.
Certified product: With the purchased cable, you receive an EU Declaration of Conformity confirming compliance with the applicable European standards. As a result, our cables pass the regular inspection of the lifting equipment by a competent person without any problems.
The cables comply with the following directives and standards:
- Machinery Directive 2006/42/EC
- Technical Standard EN ISO 12100
Operating and installation recommendations

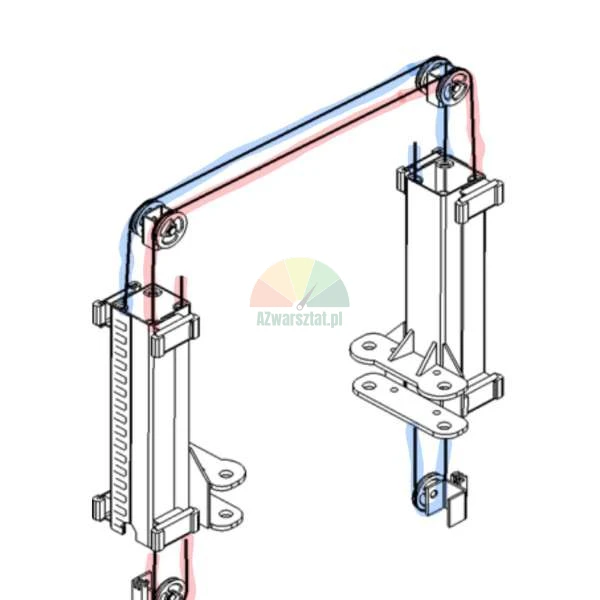

Important note: The price is for one piece of cable. Remember that there are two synchronising cables in the lift.
In order to keep the system evenly tensioned and safe to operate, it is best to replace the cables in pairs. Old cables may be stretched, making it difficult to calibrate the vehicle lift after replacing only one side. If you are planning a service, we recommend purchasing two pieces.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)

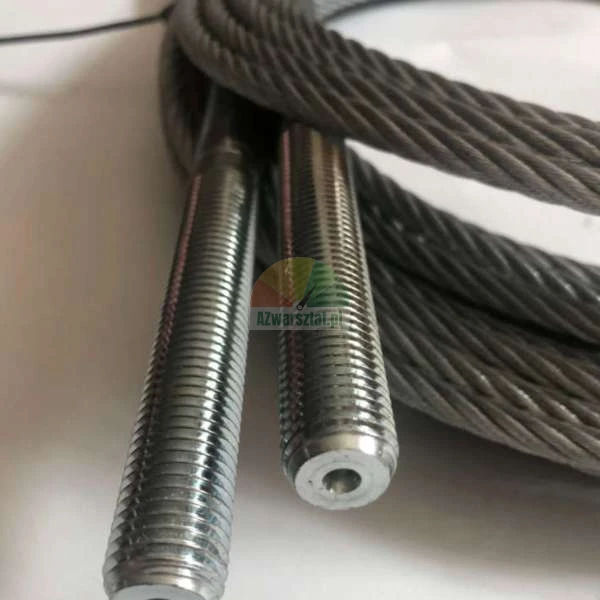

- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?

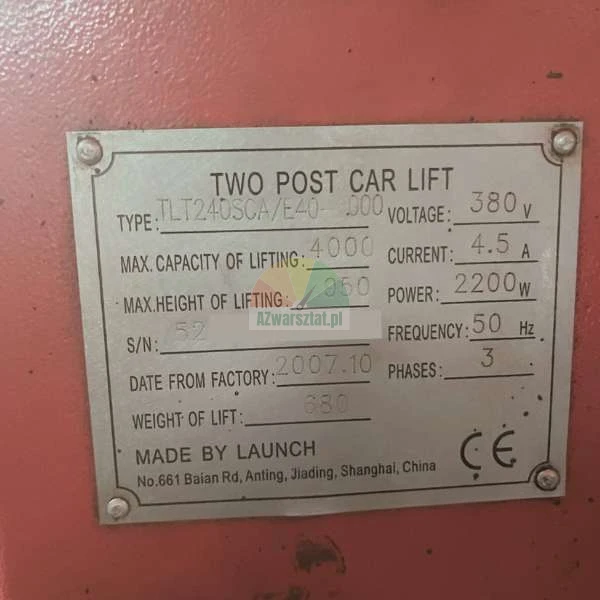

- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
