Lifting steel cable QJY 2.40B (8800mm)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: poem0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

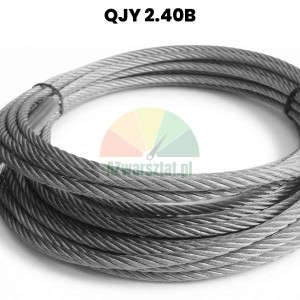

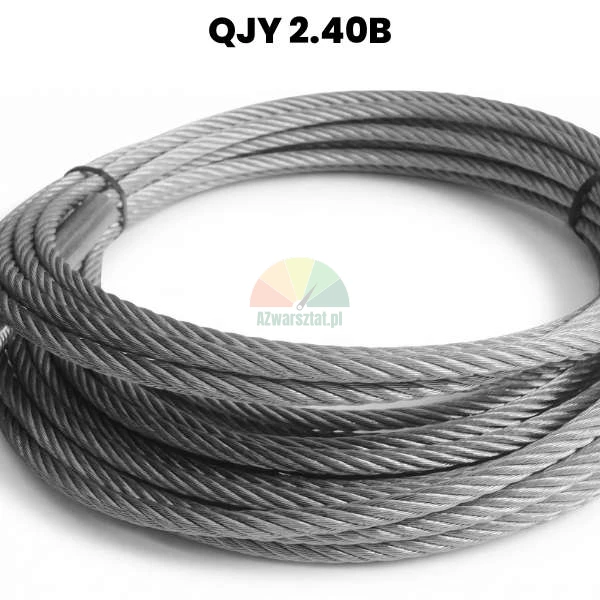

QJY 2.40B steel lifting cable (8800 mm)
Ensure your workshop is as safe and reliable as possible with a high-grade steel lifting cable, designed for two-post lifts. In the azworkshop.eu shop you will find parts that guarantee long and trouble-free operation of your workshop equipment.
Technical specifications
- Lift model: QJY 2.40B
- Overall length: 8.8 m (8800 mm)
- Length of tensioning thread (A-side): 20 cm
- Length of fixing thread (B-side): 5 cm
- Material: High-quality steel, abrasion- and tension-resistant
Precision craftsmanship and durability

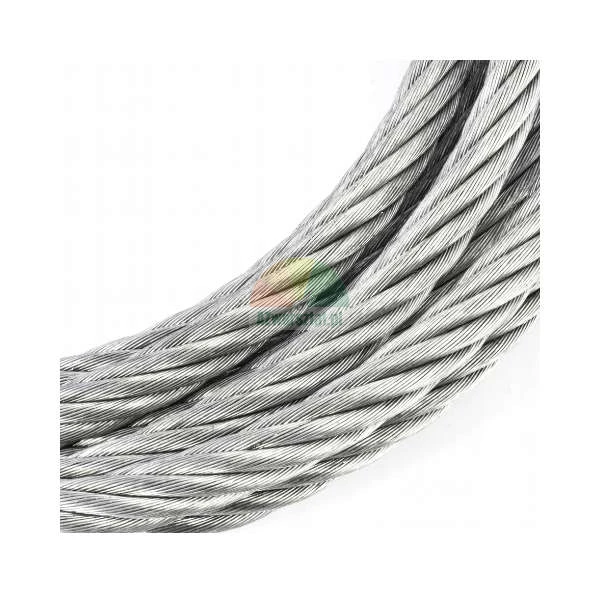

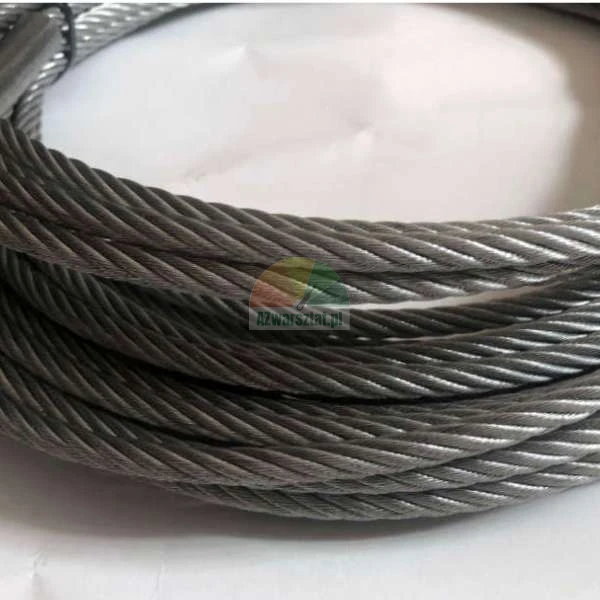

The cable has been designed for the extreme loads faced by vehicle lifts in professional mechanical workshops on a daily basis. The appropriate weave of steel fibres ensures high flexibility and exceptional resistance to breakage. Precision threaded ends in lengths of 20 cm and 5 cm allow trouble-free installation and precise calibration of the tension.
Important service tip: Regular inspection of the condition of the lifting cables and their lubrication significantly increases the service life of the entire lift mechanism. For safety reasons and to maintain the correct synchronisation of the lifting carriages, we recommend always replacing the cables in pairs!
Why choose parts from azworkshop.eu?
As specialists in tyre service and workshop equipment, we know very well how important high-quality components are. We make sure that every part in our range meets strict standards. By choosing our QJY 2.40B lift cable, you are investing in a proven product that will effectively safeguard the continuity and smooth running of your service operations.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)

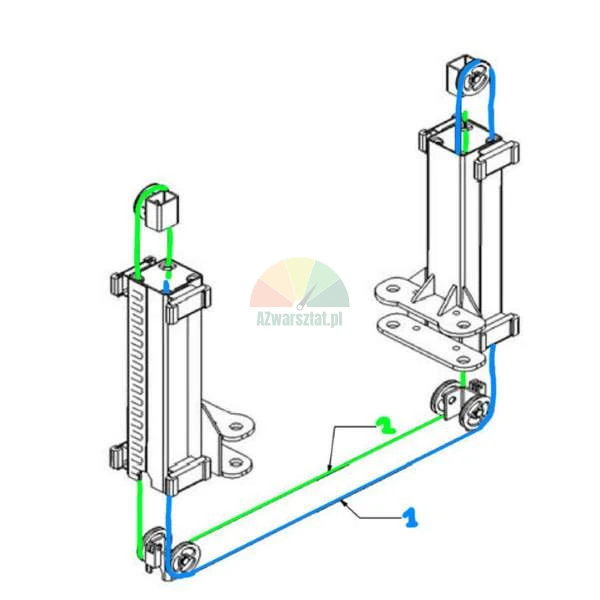

The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
