Genuine ATH-Heinl Lift Slide (Aristo / Pure Lifts)
Ensure your equipment operates stably and safely with top-quality spare parts. The AZ Warsztat shop (azwarsztat.pl) presents an original guide slide designed for ATH-Heinl two-post lifts, with a particular focus on the popular Aristo and Pure Lifts ranges.
Compatibility:
- Aristo LM 240
- Aristo LA 240
- ATH-Pure Lift 2.40
- ATH-Pure Lift 2.40A
Specification and design of the component

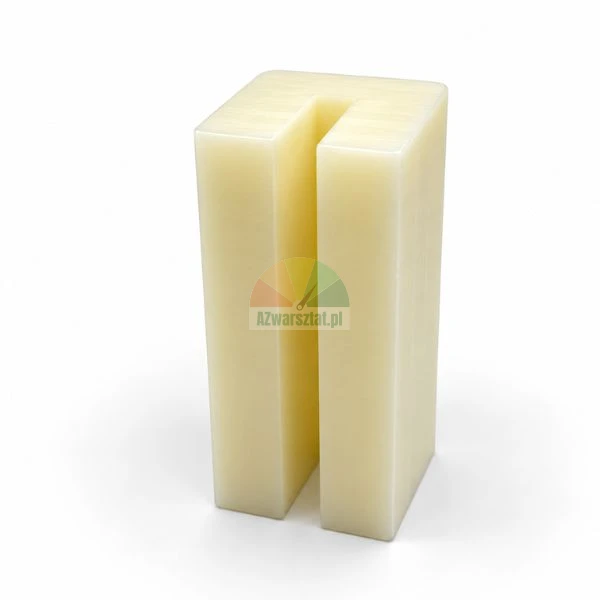

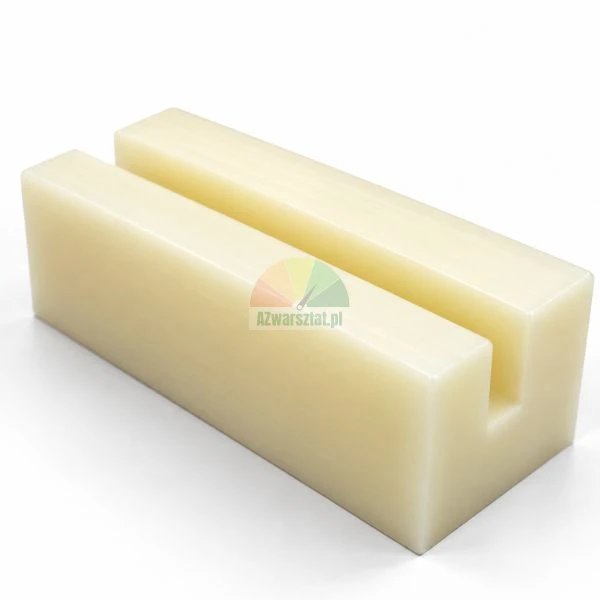

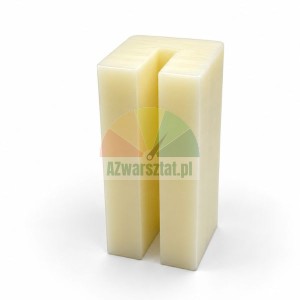

The slide (also known as a slide block) is an extremely important component of the lifting system. The product shown in the photographs features a distinctive cut-out that precisely encloses the guide rail, preventing excessive play. It is made from a highly abrasion-resistant plastic, capable of withstanding heavy loads during intensive workshop use.
Important technical information: Properly functioning slides eliminate direct, dangerous metal-on-metal friction between the lifting carriage and the interior of the column. Replacing them in good time protects expensive structural components from wear and tear and ensures smooth, quiet operation of the equipment.
Application and installation (see diagram)

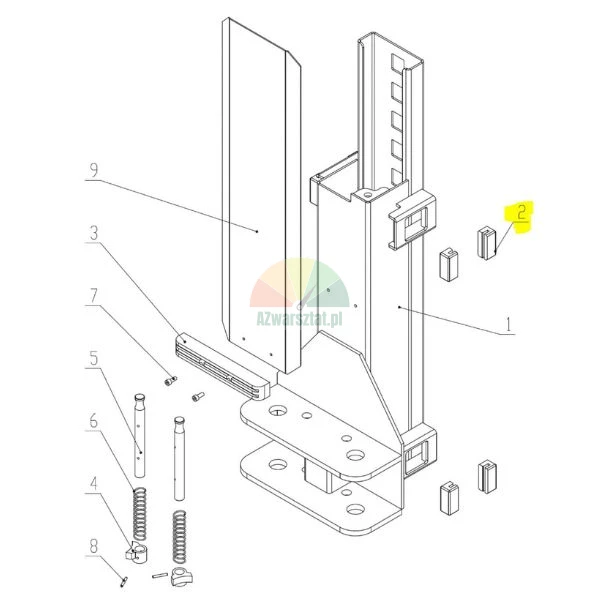

As shown in the attached diagram from the manual (part marked with number 2), the slides are fitted directly onto the frame of the lifting trolley. As this is a fully original product, you can be sure of a perfect fit and quick and easy installation without the need for any modifications.
We recommend replacing all the slides on the trolley at the same time. Replacing only individual slides may lead to an uneven distribution of forces and premature wear of the new components.
Choose the experts at AZ Warsztat
When you shop at azwarsztat.pl, you’re choosing a tried-and-tested range of products for car lifts, tyre changers and wheel balancers. Invest in the safety of your tyre service centre or garage by choosing top-class genuine spare parts.
