ATH-Heinl replacement: Brake resistor for wheel balancers W22, W42, W62, W82

High-quality replacement brake resistor for ATH-Heinl wheel balancers, compatible with the W22, W42, W62 and W82. Guarantees reliable operation, precise wheel balancing and operational safety.

The brake resistor is responsible for effectively stopping the rotating wheel at the end of the measurement. This is a key element influencing balancing accuracy as well as the comfort and safety of operation.

The product features an aluminium housing with a heat sink, which ensures efficient heat dissipation and a long service life. An ideal choice for workshops looking for a proven replacement at a reasonable price.

Technical specifications:

Power: 100 W
Resistance: 15-16 Ω (designation: 16RJ)
Housing material: aluminium with heat sink
Mounting: 4 mounting holes - easy installation
Overall length (with terminals): approx. 75-83 mm
Base length: approx. 50-60 mm
Base width: approx. 20-29 mm
Mounting hole spacing: 40-45 mm

Compatibility: ATH-Heinl wheel balancers: W22, W42, W62, W82 - no modification required.

Application:

The brake resistor is used in wheel balancers, where it is responsible for the controlled stopping of the shaft once the measurement is completed. Replacing a worn resistor is a quick way to restore full machine performance and ensure operational safety.

Why is it worth it?

Compatible with popular ATH-Heinl models
Robust design and long service life
Efficient cooling thanks to the aluminium housing with heat sink
Easy installation without modification
Safe and precise operation

Ideal for service centres and workshops that want to keep their wheel balancers in full working order without incurring the high costs of original parts.

Product photo:

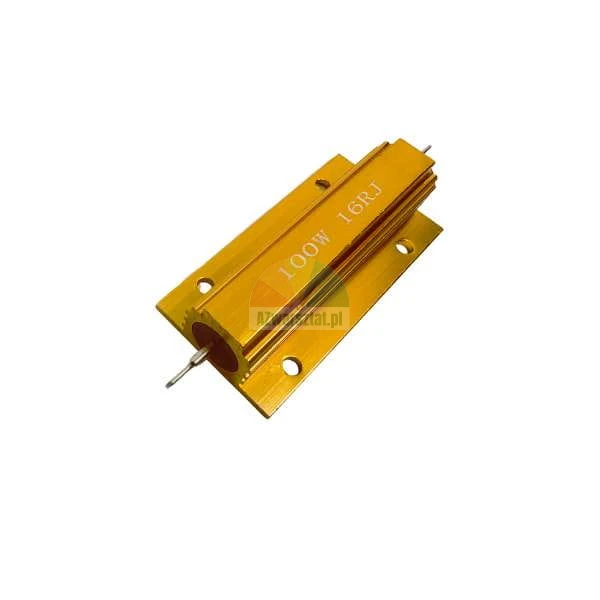

The picture shows a brake resistor with an overall length of approximately 75-83 mm, a base length of approximately 50-60 mm and a base width of approximately 21-29 mm. The 4 mounting holes for easy installation are visible.

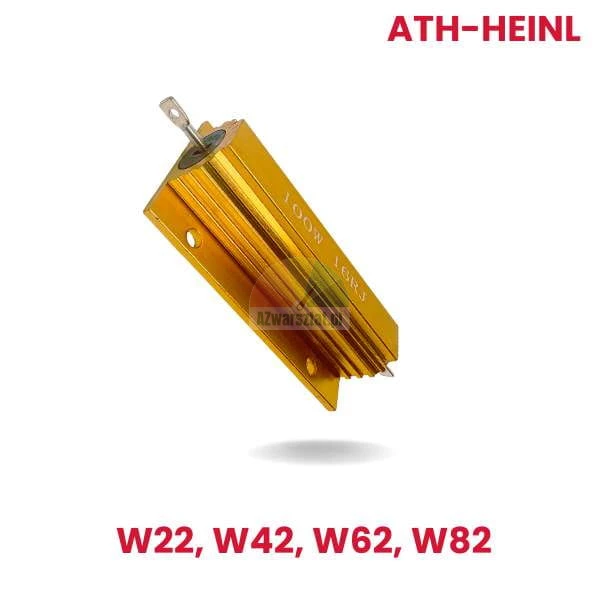

Brake resistor for ATH-Heinl wheel balancer
