Replacement ATH-Heinl: Mini Bike Lift
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-105
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Replacement for ATH-Heinl: Mini Motorcycle Lift
The Bike Lift mini motorcycle lift is a professional and compact solution for motorcycle workshops and individual users. It is a robust alternative to the ATH-Heinl brand models, offering high build quality, stability and comfortable handling.
Ideal for use with tyre changers, wheel balancers and vehicle lifts equipped with a motorcycle adapter!
Product highlights:
- Lifting capacity: up to 500 kg - safe lifting of motorcycles and quads
- Lifting height: from 9 cm to 40 cm - ideal for most service work

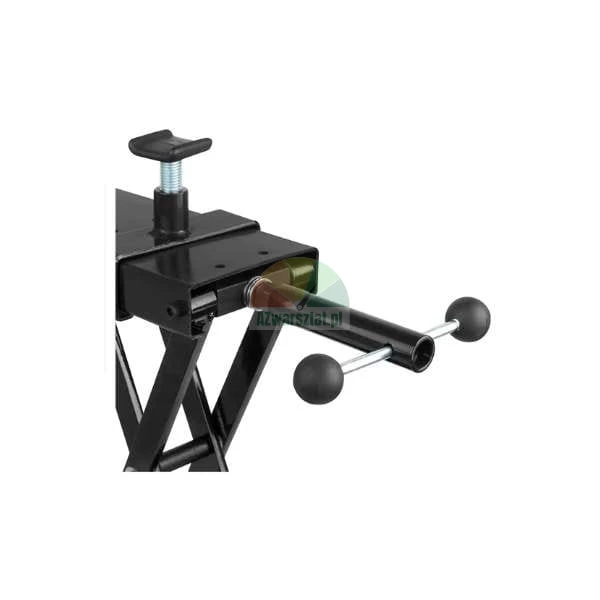

- Hand crank: enables precise and smooth lifting

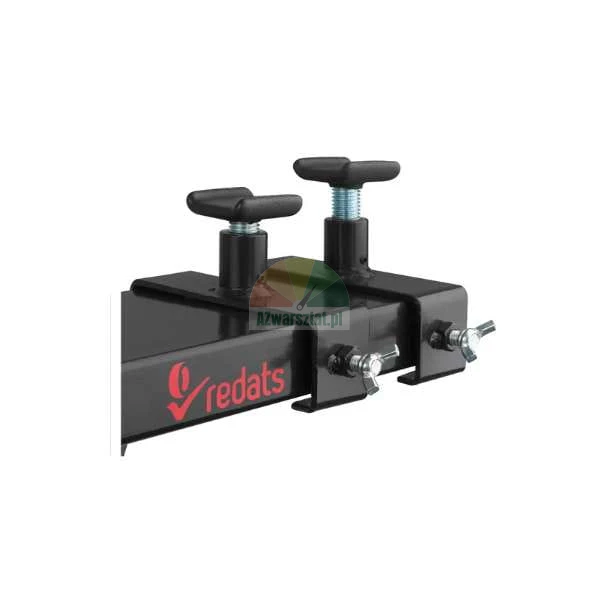

- Adjustable supports: with rubber pads to protect the motorcycle frame

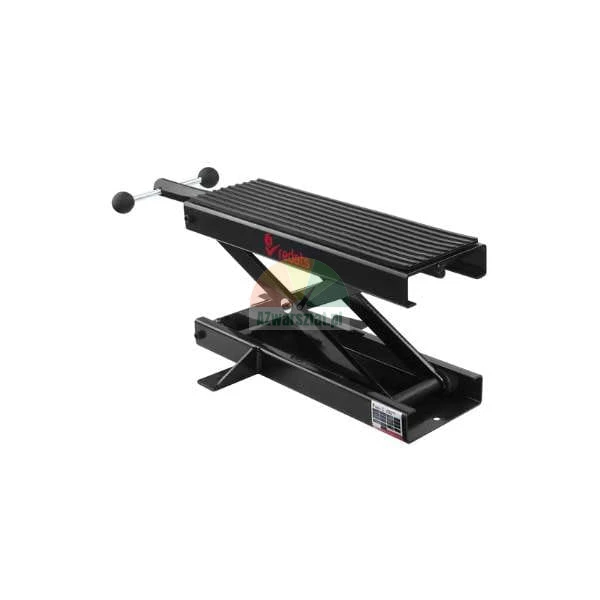

- Non-slip mat: included in the set - increases work safety
- Sturdy construction: made of high quality steel - durable and reliable
Lift dimensions:
- Overall length: 45 cm
- Base width: 15 cm
- Width of working surface: 30 cm
- Minimum height: 9 cm
- Maximum height: 40 cm
Thanks to its compact dimensions and easy handling, the lift is ideal for both the professional workshop and the home garage.
Application:
The lift is designed for use with tyre changers, wheel balancers and vehicle lifts equipped with a motorcycle adapter. Ideal for servicing, repairing, maintaining and replacing wheels on motorcycles and quads.
A replacement for ATH-Heinl at an attractive price - high quality without compromise!

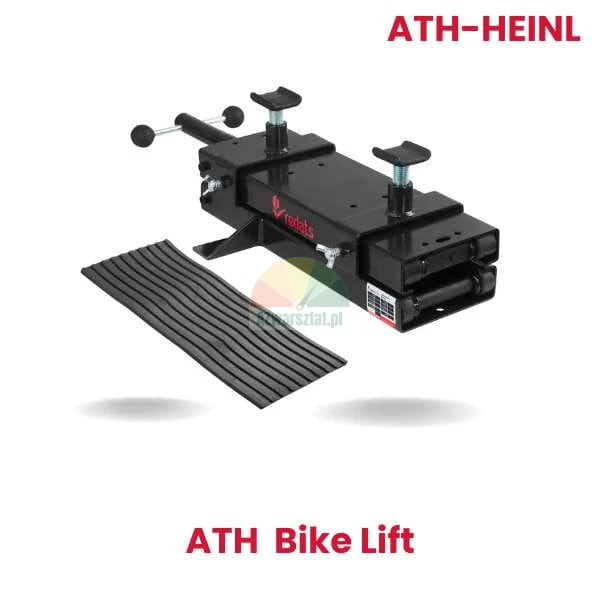

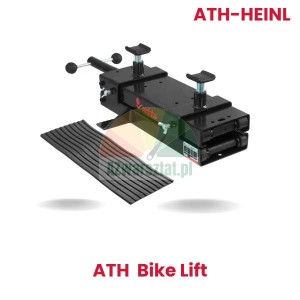

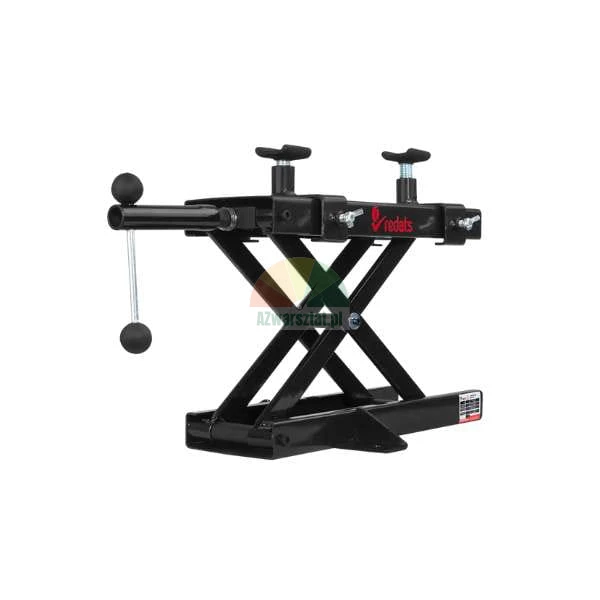

Product photo:
Pictured: Mini Bike Lift - length 45 cm, base width 15 cm, working surface width 30 cm, height adjustable from 9 cm to 40 cm.
