Twin Busch replacement: steel elevator cable for TW236M, TW242A, TW242E, TW236PE, TW242PE
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: twin-2
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

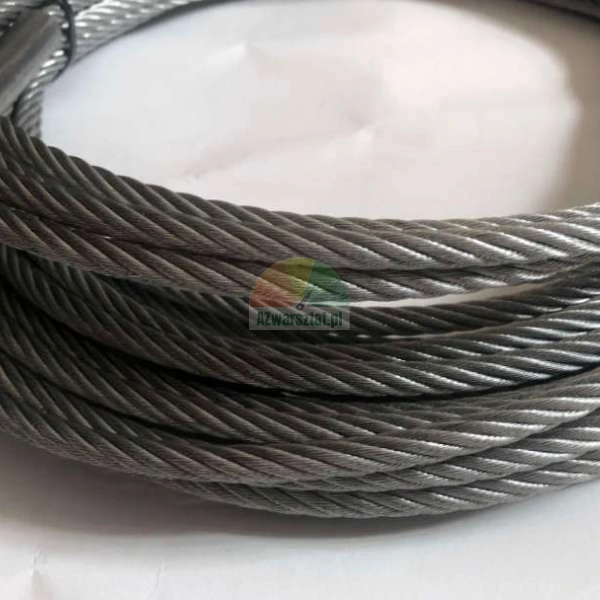

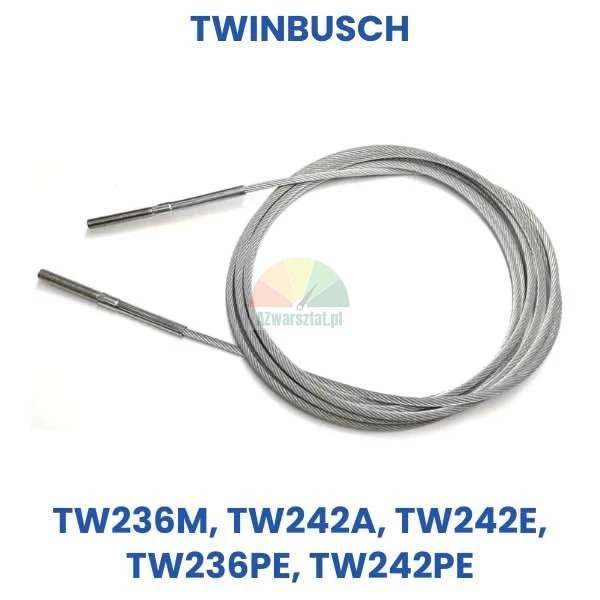

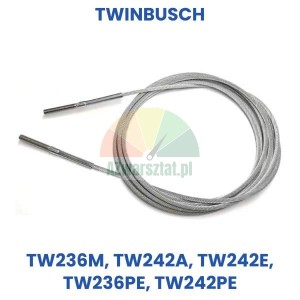

Replacement steel cable for TWINBUSCH TW236M, TW242A, TW242E, TW236PE, TW242PE two-post lifts
High quality replacement steel cable for TWINBUSCH two-post lifts: TW236M, TW242A, TW242E, TW236PE, TW242PE. Replacement for the original TWINBUSCH cable with number E-HEB0018 - ideal for replacing a worn or damaged cable in your workshop.
Application: The cable is a key element of the synchronisation system of the two-post lift - it is responsible for the even lifting of the platform and the safety of the equipment's operation. Suitable for garages, tyre repair shops and anywhere reliability and safety is important.

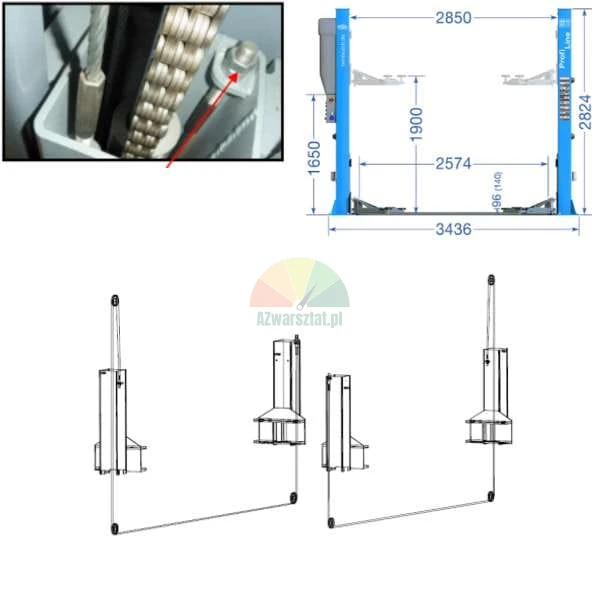

Compatibility: The cable fits lifts with the following dimensions: overall width 3436 mm, height 2824 mm, distance between posts 2574 mm. So you can be sure that the replacement will work perfectly with your machine!
Key product features:
- High build quality - tensile and wear resistant steel
- Fully compatible with the listed TWINBUSCH lift models
- Replacement for original E-HEB0018
- Easy installation - compatible with the factory cable routing diagram
- Compliant with applicable European standards
Each cable is supplied with an EU Declaration of Conformity in accordance with applicable European standards.
Compliance and safety
- Compliance with the Machinery Directive 2006/42/EC
- Compliance with EN ISO 12100
When you choose our replacement, you receive a product that ensures complete safety of use and a guarantee of compliance with European technical standards!
Installation
Cable replacement should be carried out by qualified personnel, in accordance with the lift manufacturer's instructions. Regular inspection of the lifting equipment by a competent person, in accordance with applicable regulations and EN ISO 9927-1, is recommended. Thanks to its precision workmanship and certification, the product ensures long-lasting and trouble-free operation.
Sample item dimensions:
Length: approx. 6.5 m, Diameter: 10 mm (please refer to the equipment instructions for details).
Product safety
Manufacturer
Metalmex-Instal Sp. z o.o.
ul. Łęgska 3
87-800 Włocławek, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
