109 cm hydraulic cylinder with handle
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-SILO-0002
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

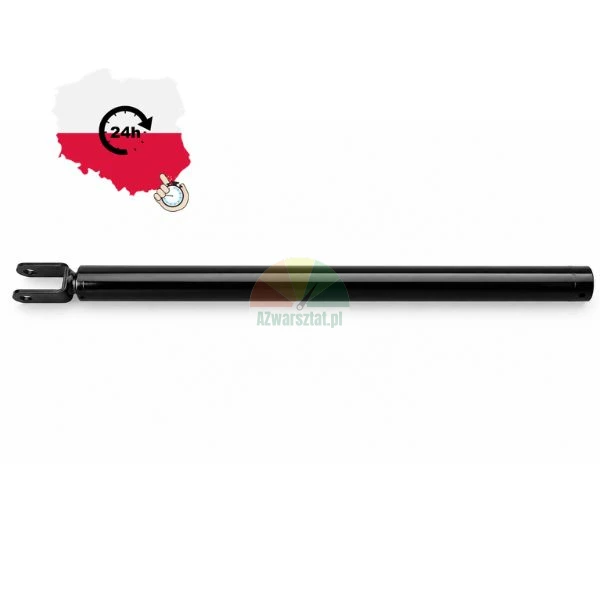

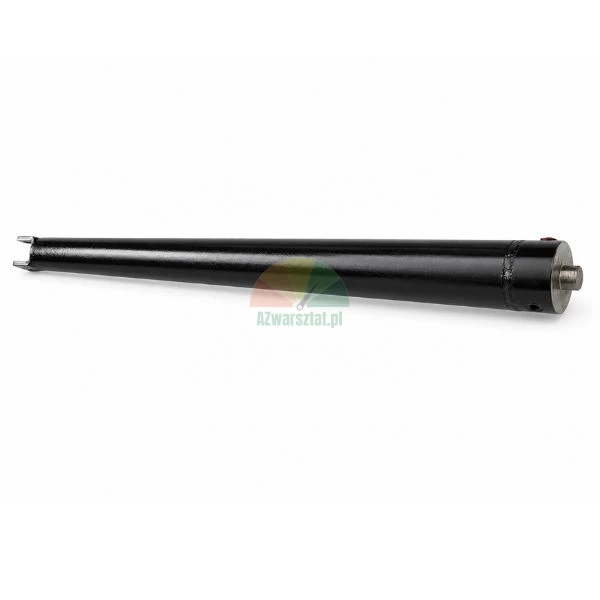

109 cm hydraulic cylinder with bracket
Are you looking for reliable and durable spare parts for your workshop? Our 109 cm hydraulic cylinder is a high-quality component, designed for heavy-duty use in vehicle lifts and professional workshop equipment. It ensures smooth and safe operation of the machine, which is crucial for any workshop committed to providing high-quality services.
The cylinder’s reinforced construction and precision welds ensure high resistance to operating pressure and mechanical damage. The use of top-quality seals significantly extends the unit’s service life, minimising the risk of costly downtime in the workshop.
Technical specifications and dimensions
Before purchasing, we encourage you to check the dimensions carefully to ensure that the cylinder will fit your equipment without any issues. Below are the detailed technical parameters taken from the specifications:

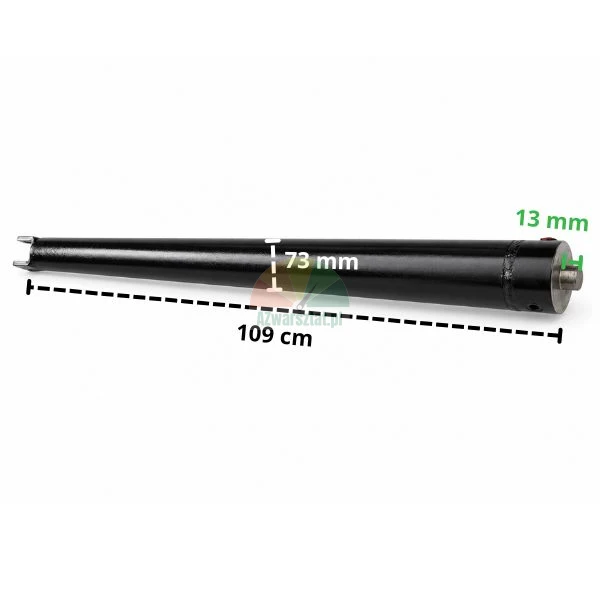

- Overall length: 109 cm
- Outer diameter of the cylinder: 73 mm

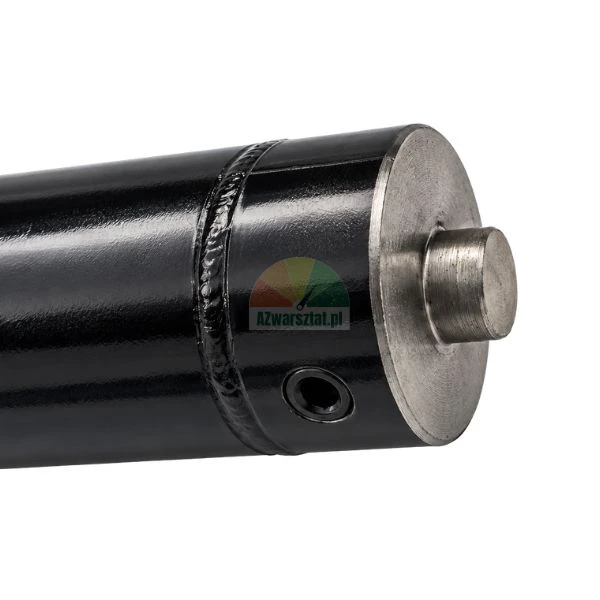

- Width/diameter of upper stud: 13 mm

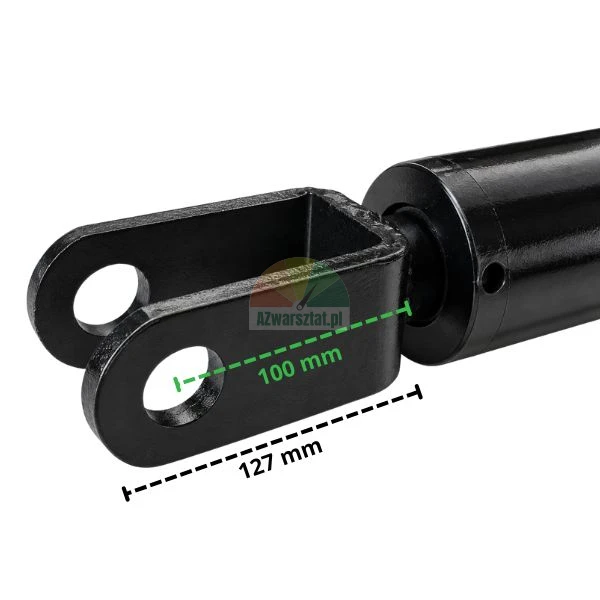

- Total length of the bracket (ear): 127 mm
- Distance from the centre of the mounting hole to the base of the cylinder: 100 mm
Application and installation

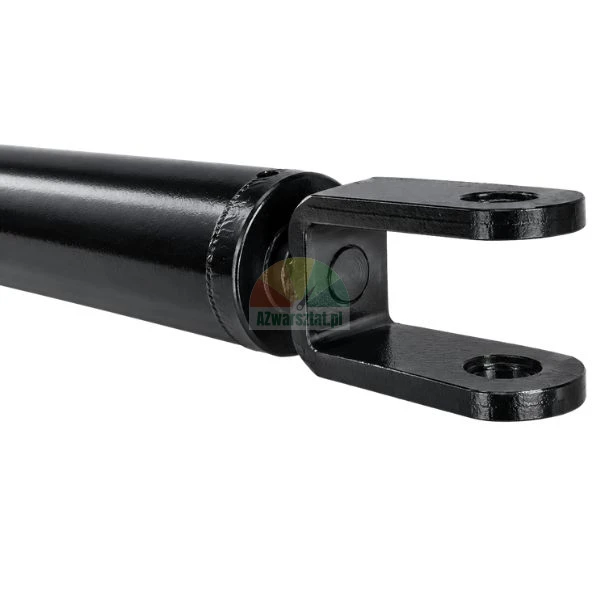

This product is ideal as a reliable replacement part for vehicle lifts. The integrated fork-type bracket facilitates the correct and stable mounting of the cylinder in the machine frame, ensuring the correct distribution of forces when lifting vehicles. By choosing tried-and-tested components from our range, you are investing in the full operational efficiency and maximum safety of your machinery fleet.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
