11-litre hydraulic oil reservoir for vehicle lifts
This high-quality 11-litre hydraulic oil reservoir is an essential component of hydraulic systems, used primarily in the power units of two-post, scissor and four-post lifts, as well as in many other workshop machines. Made from thick, semi-transparent plastic, it allows for quick and easy checking of the hydraulic fluid level without having to unscrew the cap.
Choose proven solutions for your workshop! The use of high-quality material effectively protects the reservoir from cracks and the harmful effects of workshop chemicals. The product provides excellent sealing and fits perfectly with the most popular hydraulic pumps and power units. Trust the experts – you’ll find the best spare parts at azworkshop.eu.
Key parameters and dimensions:
Before purchasing, please check the tank dimensions against the specifications below:
- Tank capacity: 11 litres

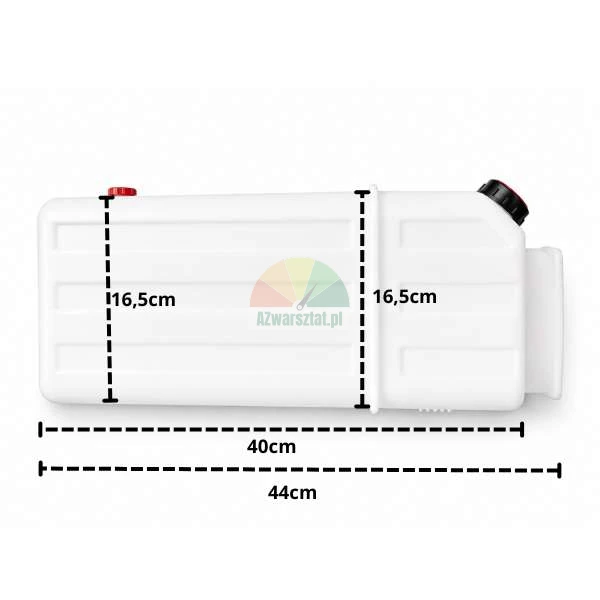

- Overall length (including connection): 44 cm
- Body length: 40 cm
- Cross-section (height x width): 16.5 cm x 16.5 cm

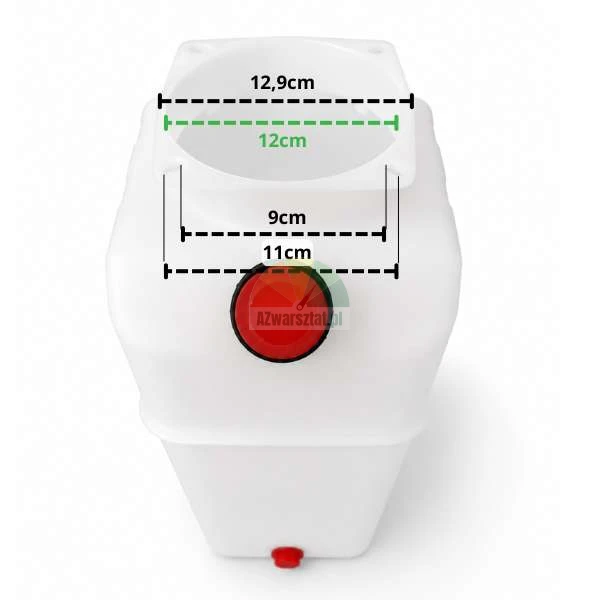

- External width of mounting flange: 12.9 cm
- Internal hole diameter: 12 cm
- Spacing of mounting holes: 9 cm x 11 cm

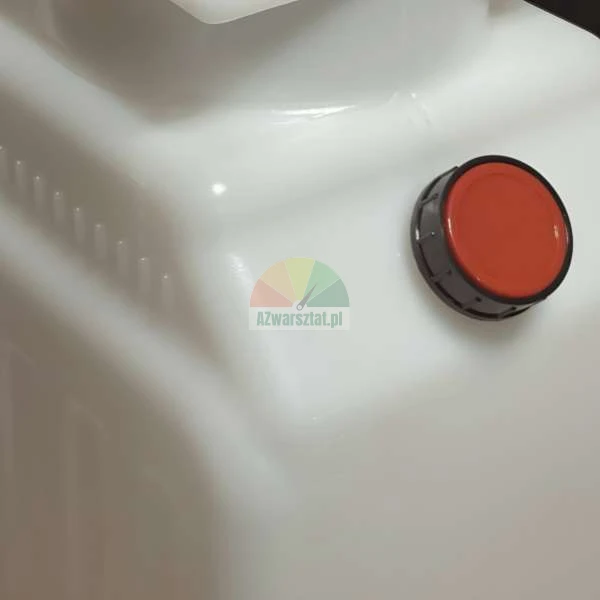

The set includes a sealed filler cap (which also acts as a vent). The robustly constructed mounting flange ensures a stable and secure connection to the pump body, preventing any leaks or pressure drops in the unit’s hydraulic system.
