24mm chain guide wheel for a two-post lift
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-KOLO-0006
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Chain guide wheel for a two-post lift – 25mm

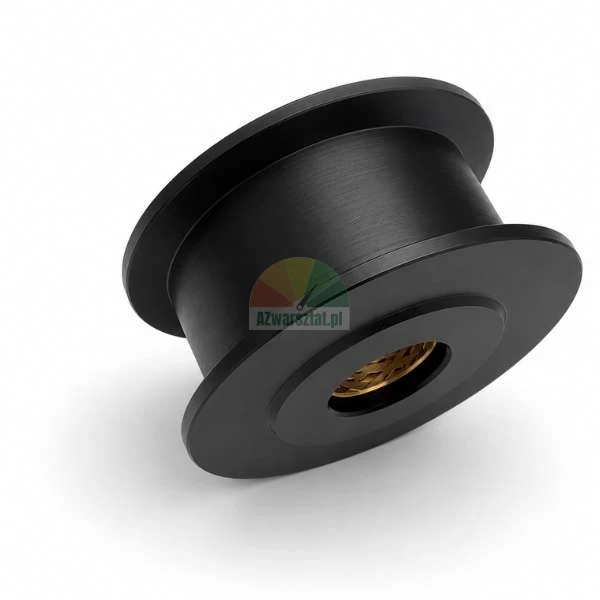

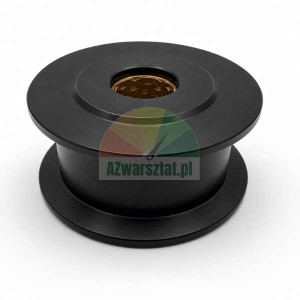

A high-quality chain guide wheel (pulley), designed specifically for professional two-post vehicle lifts. The use of robust alloys and precision manufacturing ensure safe, quiet and trouble-free operation of the vehicle lifting system in any modern car workshop.

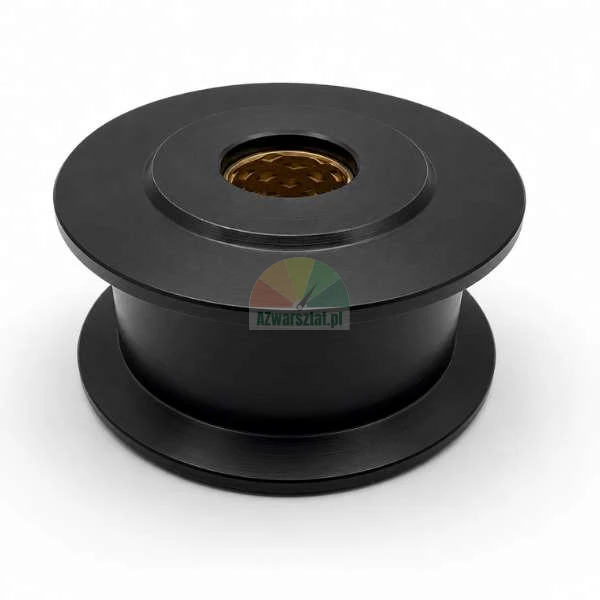

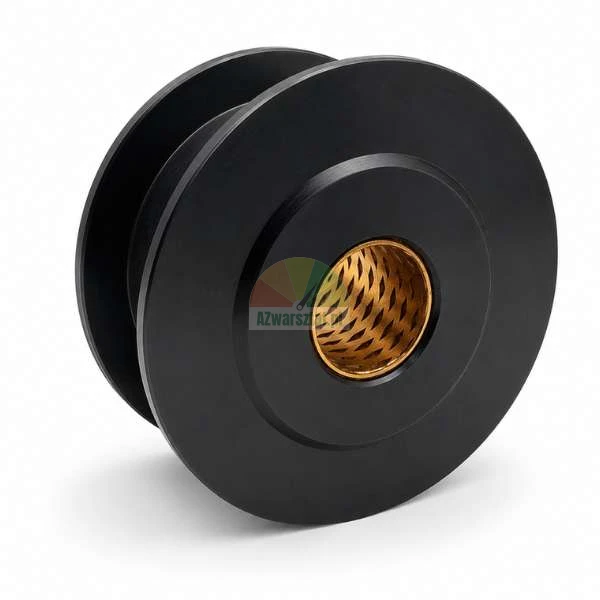

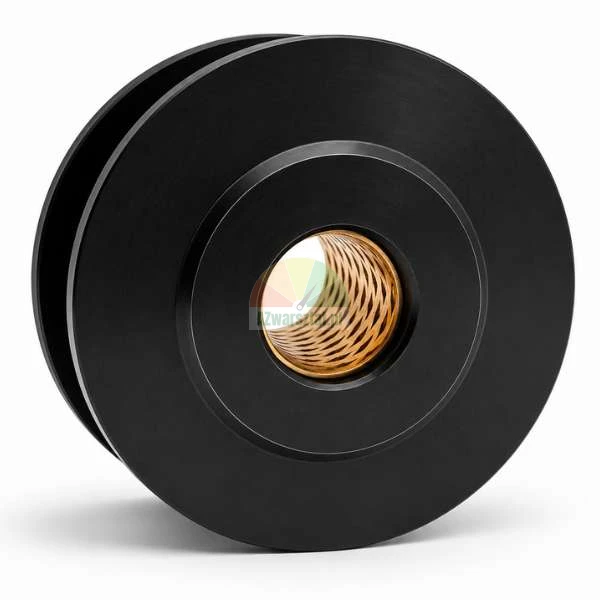

Extended service life thanks to optimal lubrication: This pulley is fitted with a pressed-in brass/bronze sliding sleeve featuring a unique structure. The internal grooves (mesh) visible in the photographs act as a reservoir and lubrication channels, ensuring continuous, excellent lubrication of the pin and minimising the risk of seizure.

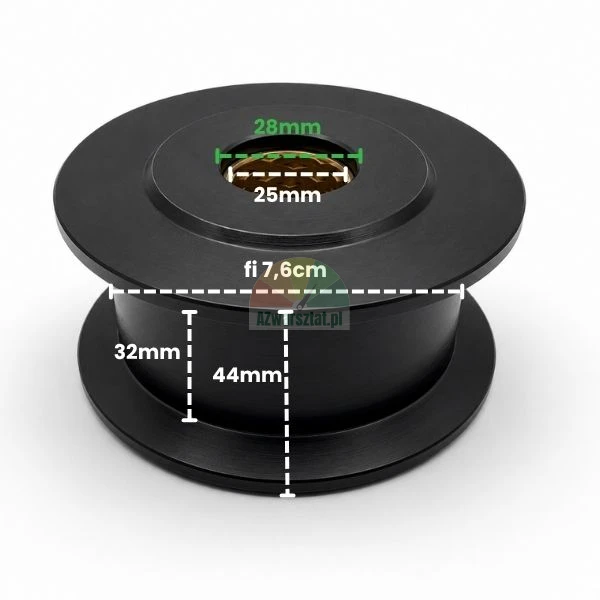

Dimensions and technical specifications:
To be 100% certain that the product will fit your machine, please check the specifications of the old part against the following list of dimensions before purchasing:
- Internal diameter (pin bore): 25 mm
- Outer diameter of the slide sleeve: 28 mm
- Diameter of the pulley at the bottom of the groove: 76 mm (7.6 cm)
- Working width (width of the chain groove): 32 mm
- Total wheel width: 44 mm
By choosing products from azworkshop.eu, you are investing in tried-and-tested spare parts for tyre repair and mechanical workshops. Ensure the reliability of your vehicle lifts by fitting only the highest-quality components!
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
