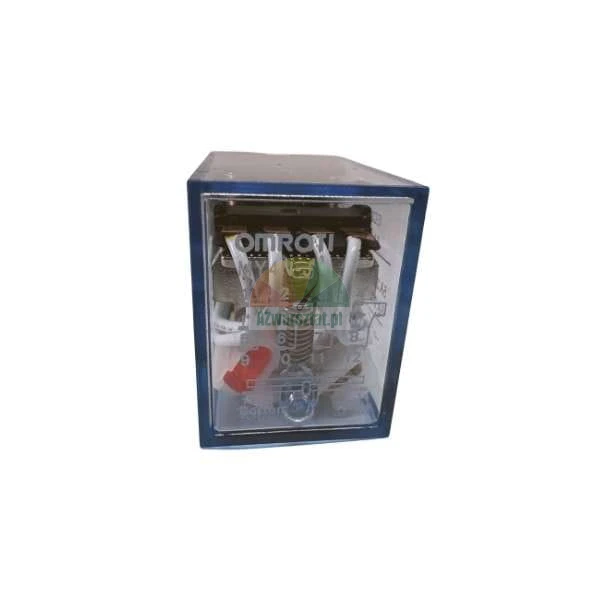

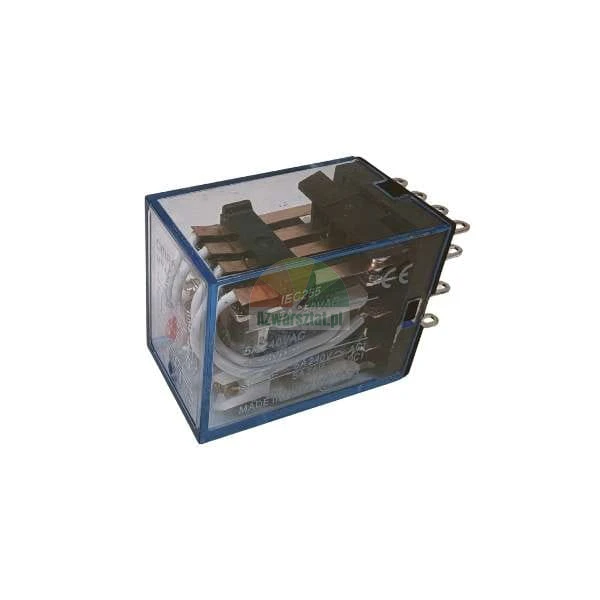

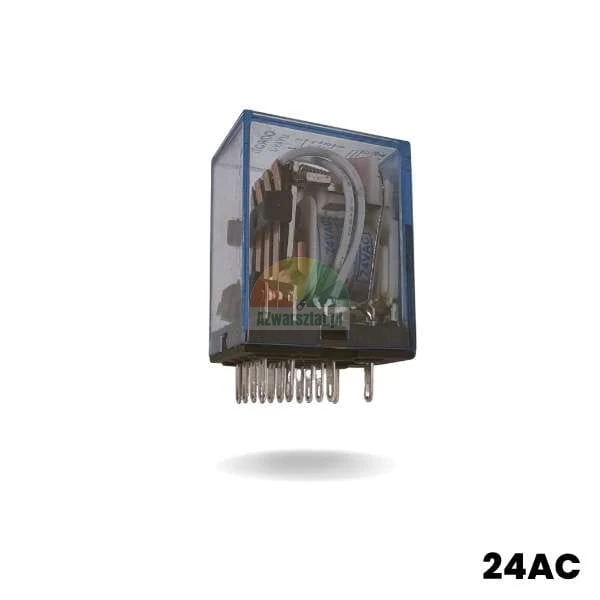

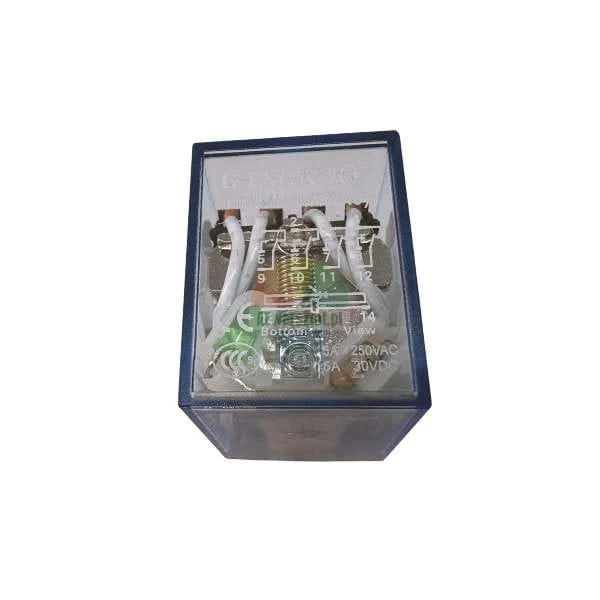

Auxiliary / Power Relay 24V AC

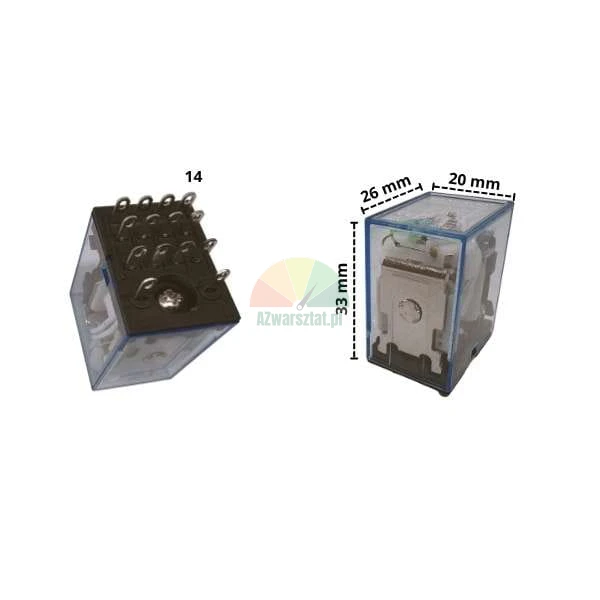

Height: 33 mm
Width: 26 mm
Depth: 20 mm
Number of leads: 14
The 24V AC auxiliary/power relay is a reliable automation component for use in workshop machines such as vehicle lifts. Thanks to its universal design, high-quality workmanship and compact dimensions, it is ideal as a spare part in equipment requiring precise control of electrical circuits.
The 24V AC relay is a key component in control systems – it guarantees fast, reliable and safe switching of circuits even under heavy loads!
Key product features:
- Coil supply voltage: 24V AC (50–60 Hz)
- Contact rating: up to 16A (AC1)
- Contact type: 1 x changeover contact (AgSnO2)
- Number of pins/connections: 14
- Power consumption: approx. 1 VA
- Housing: transparent – allows visual inspection of status
- Mounting: for DIN rail EN 60715
- High mechanical and electrical durability
- Compact dimensions – easy installation even in confined spaces
The 24V AC auxiliary relay is the perfect choice for service and retrofit applications – it guarantees reliable operation and safe maintenance of workshop machinery. Thanks to its compact design and easy DIN rail mounting, it is convenient to install and service.
Choose the tried-and-tested 24V AC relay and ensure the safety and operational reliability of your machines – even under demanding workshop conditions!
