Auxiliary / power relay 24V DC - 14 pins
The 24V DC auxiliary/power relay is a versatile and reliable automation component for controlling and protecting electrical circuits in workshop machines such as wheel assemblers, wheel balancers and car jacks. Thanks to its robust construction and high-quality materials, it ensures safe load switching, isolation between the control circuit and the power consumer and long-lasting, stable operation even under demanding conditions.
The ideal choice for service and industrial applications where reliability, safety and precision count!
Product highlights:
- Coil voltage: 24V DC
- Rated current: up to 10A
- Peak current: up to 20A
- Contact voltage: 5A 240V AC / 5A 28V DC
- Contact type/pins: 14 pins
- Contact material: silver alloy
- Operation indication: LED
- Operation time: less than 25 ms
- Rated frequency: 50 Hz / 60 Hz
- Electrical life: over 10 W times
- Mounting: on a DIN rail or in a socket
- Connections: screw terminals or to socket
- Operating temperature: -25°C to +55°C
- Compact dimensions: easy installation in control cabinets
Relay dimensions:
- Height: 33 mm
- Width: 26 mm
- Depth: 20 mm

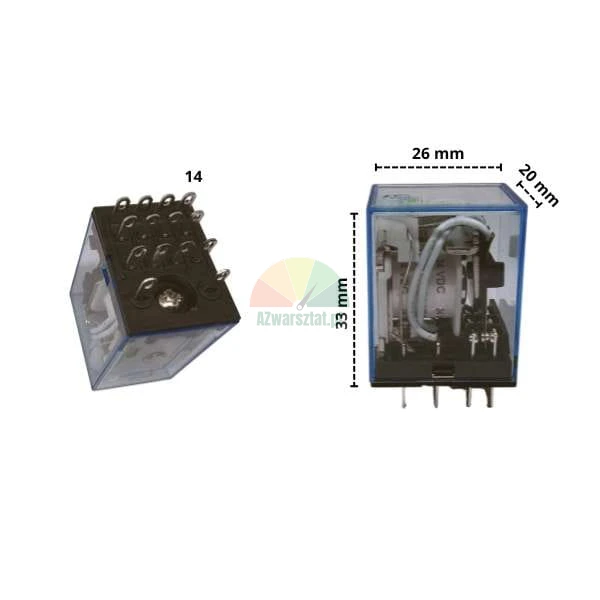

Pictured: 24V DC auxiliary relay - view with dimensions (height 33 mm, width 26 mm, depth 20 mm).
Replacing an auxiliary relay is a quick and easy way to restore machine performance in the event of a control system failure!
Application
- Automation of workshop machinery
- Control of car lifts
- Wheel balancing and assembly machines
- Safety and signalling systems
- Other machines requiring reliable electrical control
The offered relay is a proven solution for professional services and workshops that value reliability, ease of installation and versatility of application. Its compact dimensions and high wear resistance make it suitable for any professional workshop machine.
