Chain guide roller assembly with pin for a lift

Secure payment

30 days to return

Fast shipping

€81.43

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

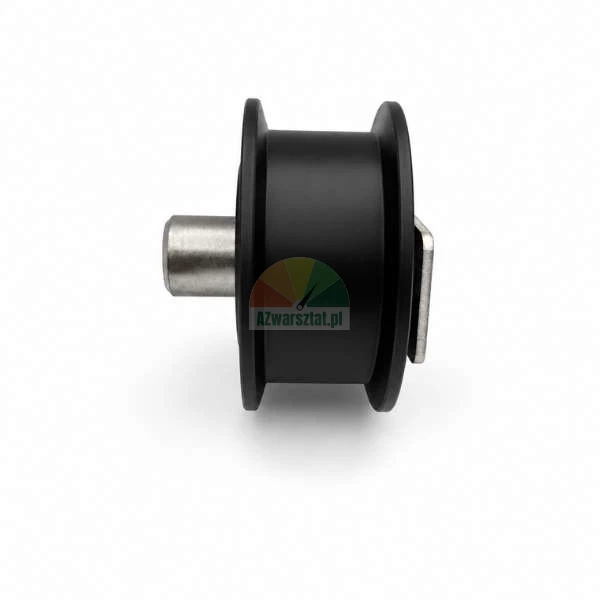

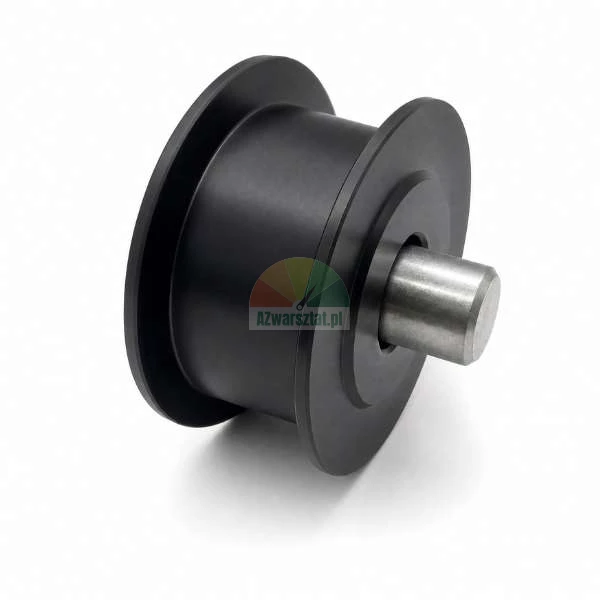

Chain guide roller set with pin for a vehicle lift

At AZ Workshop, you will find a top-quality chain guide roller set complete with a dedicated pin, designed for professional vehicle lifts. This component plays a key role in the lifting mechanism, ensuring smooth and stable chain guidance, which directly contributes to the safety and reliability of the entire unit.

The set has been designed for continuous operation under the heaviest loads. The roller is fitted with a factory-fitted, self-lubricating bronze bushing, which noticeably minimises friction and significantly extends the component’s service life.

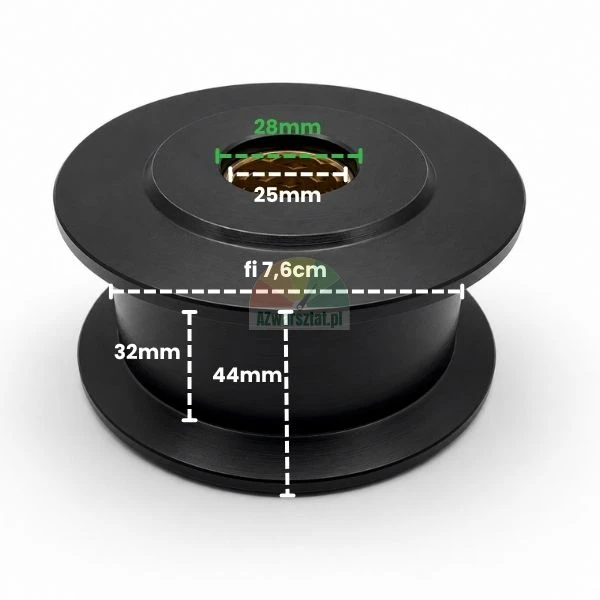

Technical specifications of the roller:

Outer diameter (total): 76 mm (7.6 cm)
Internal width (chain clearance): 32 mm
Total roller width: 44 mm
Inner bore diameter (with bushing fitted): 24 mm
Internal bore diameter (without bushing): 28 mm

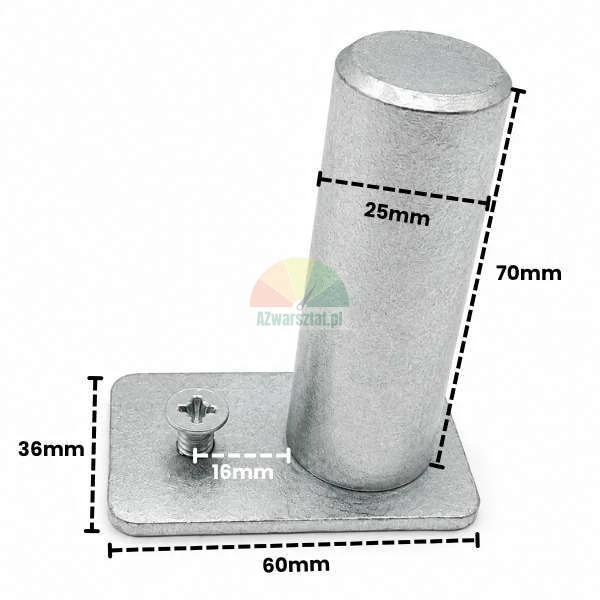

Technical specifications of the pin:

Shaft diameter: 25 mm
Working length of the shank: 70 mm
Dimensions of the rectangular base: 60 mm x 36 mm
Distance from the centre of the fixing hole to the edge of the shank: 16 mm

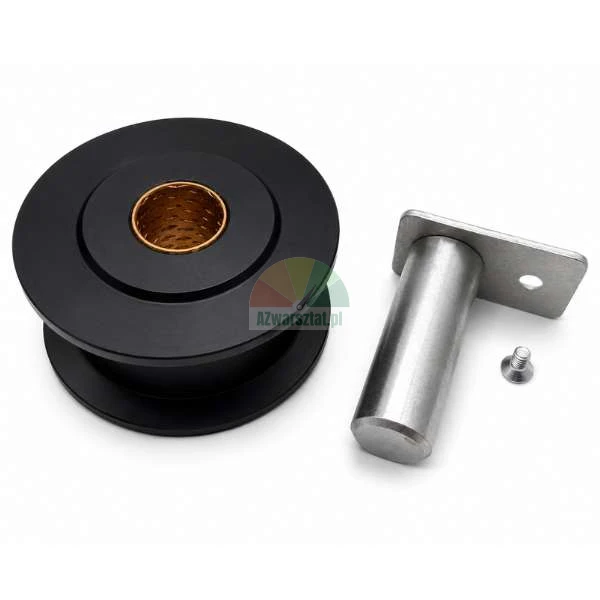

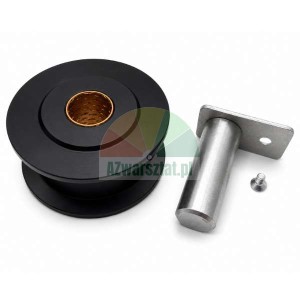

Contents of the set: a sturdy guide roller with a sliding bushing, a reinforced steel pin with a mounting base, and a matching countersunk screw.

Before purchasing, we recommend removing the worn part and carefully comparing its dimensions with the specifications given above and in the photographs to ensure that the set is fully compatible with your vehicle lift.

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
