Complete 3.0 kW, 380 V hydraulic power unit for a car lift
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-AGRE-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

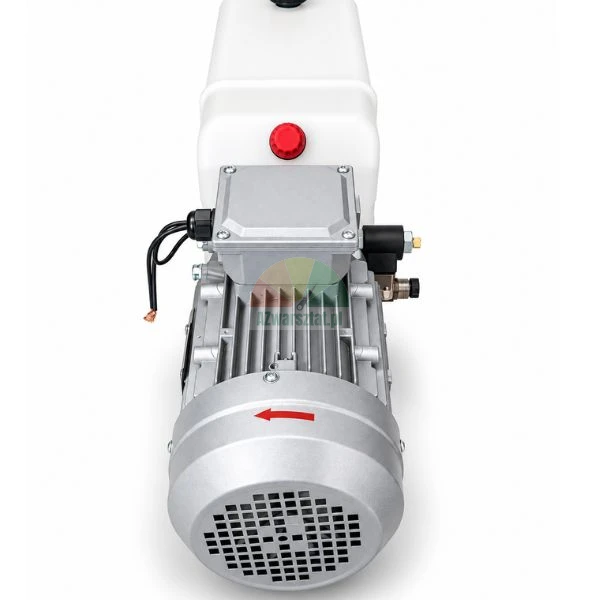

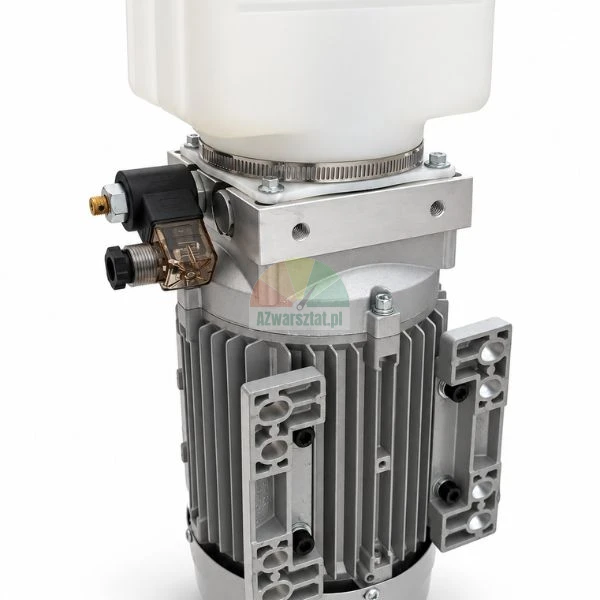

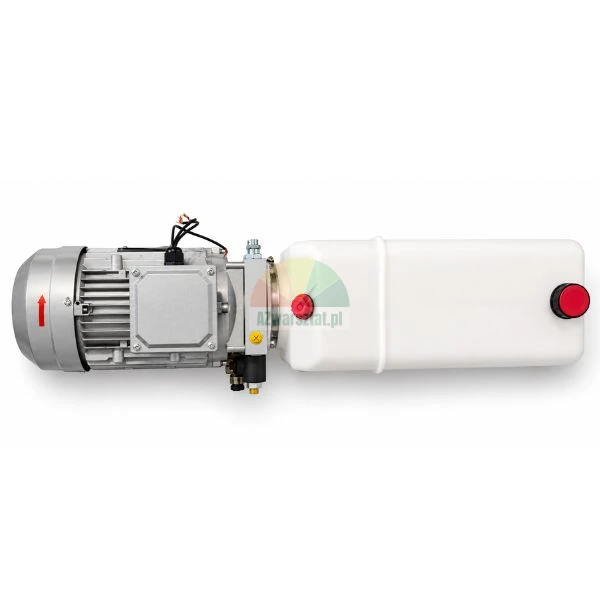

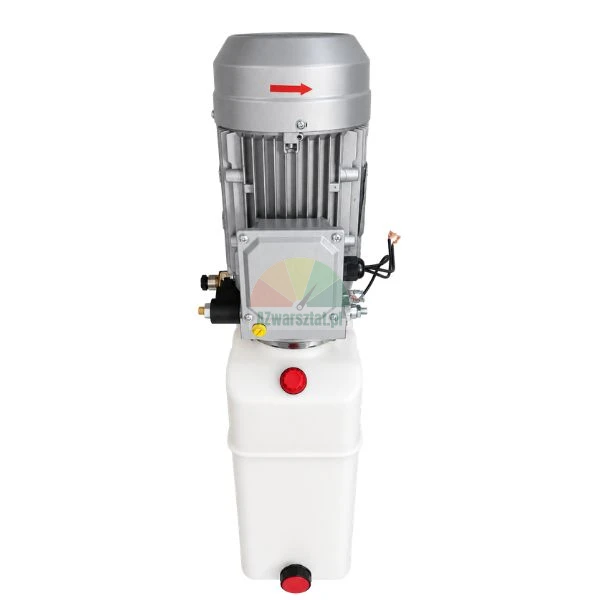

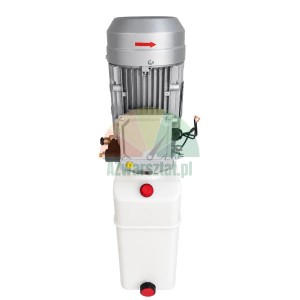

Complete 3.0 kW 380 V Hydraulic Power Unit for a Car Lift
Ensure your car lift delivers top performance and trouble-free operation with a professional hydraulic power unit from azworkshop.eu. This unit has been designed for intensive use in car workshops and professional tyre service centres.
Important information: The power unit shown here is a fully complete kit, ready for quick installation. It is an ideal and versatile replacement part for most professional two-post and scissor lifts available on the market.

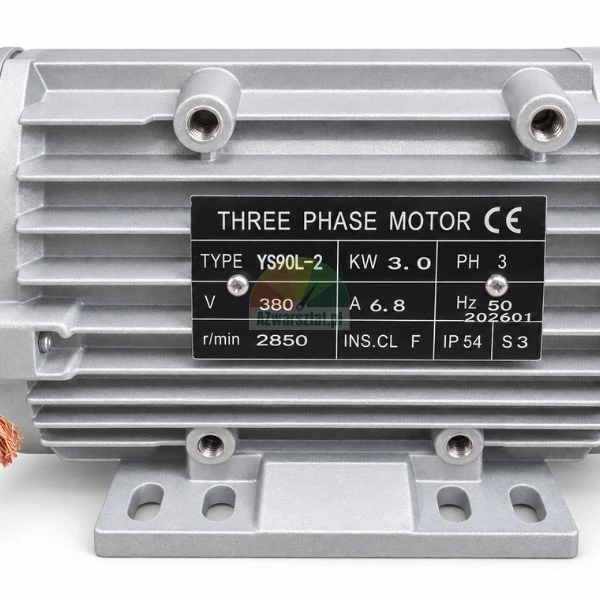

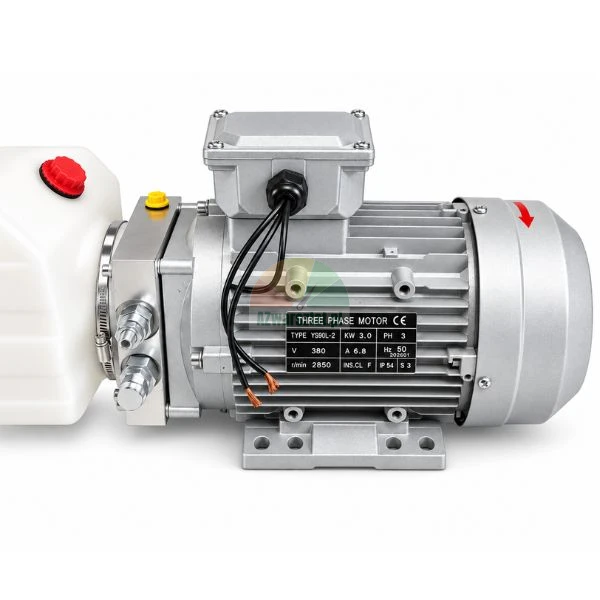

Technical specifications of the motor:
- Motor type: Three-phase (Model number: YS90L-2)
- Rated power: 3.0 kW
- Voltage: 380 V (3-phase supply / PH 3)
- Current: 6.8 A
- Frequency: 50 Hz
- Rotational speed: 2850 rpm
- Insulation class: F (INS.CL F)
- Enclosure protection rating: IP 54
- Operating mode: S3

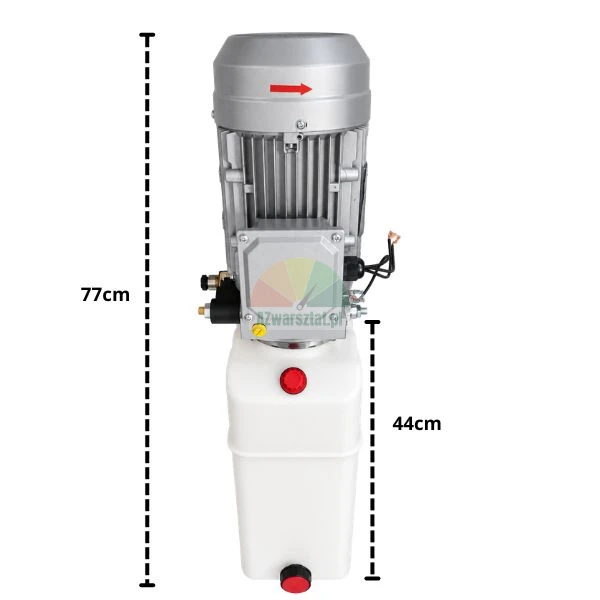

Unit dimensions:
- Total height of the unit: 77 cm
- Oil tank height: 44 cm
The robust design, bearing the CE mark, and the ergonomic, durable tank make it much easier to monitor the oil level on a day-to-day basis. By choosing equipment from AZ Workshop, you are investing in reliability and safety for many years to come.
