DIN rail mounting bracket with screw clamps
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-CZAS-0018
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

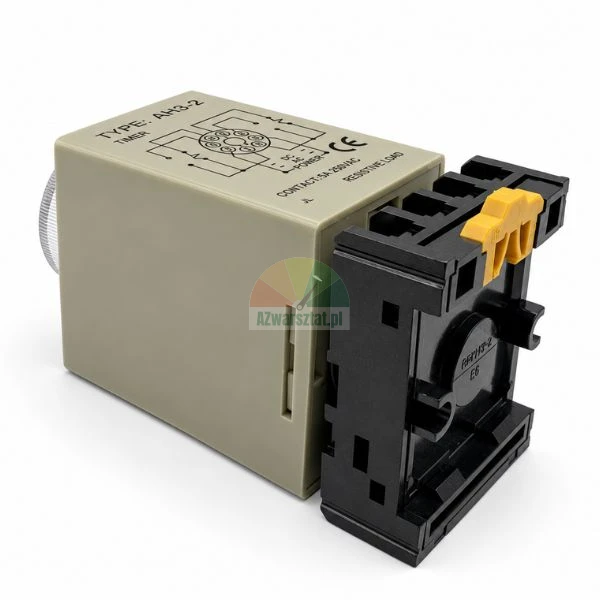

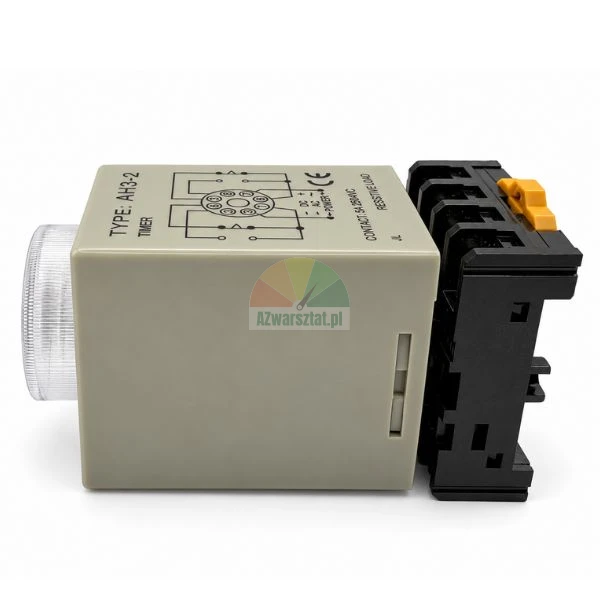

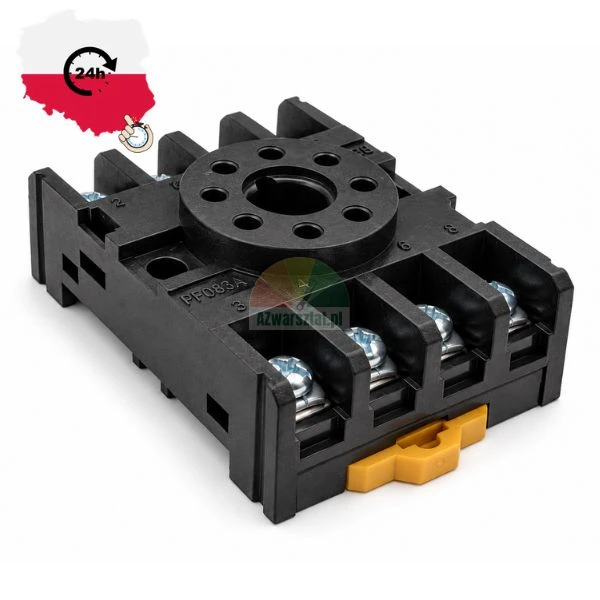

DIN rail mounting bracket with screw terminals for time relays

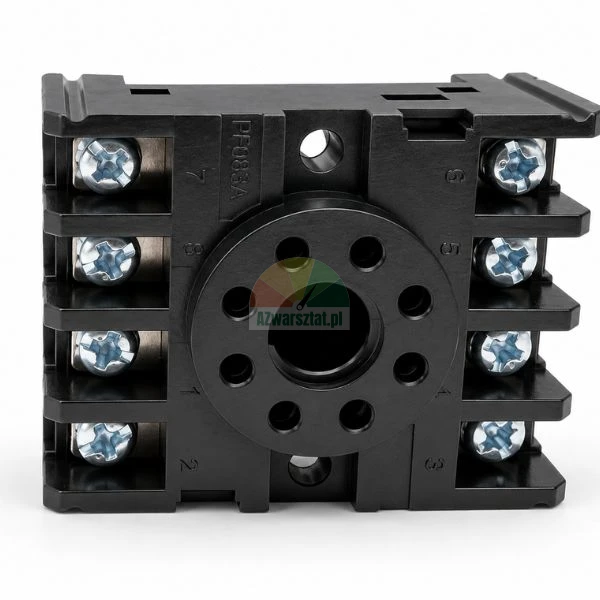

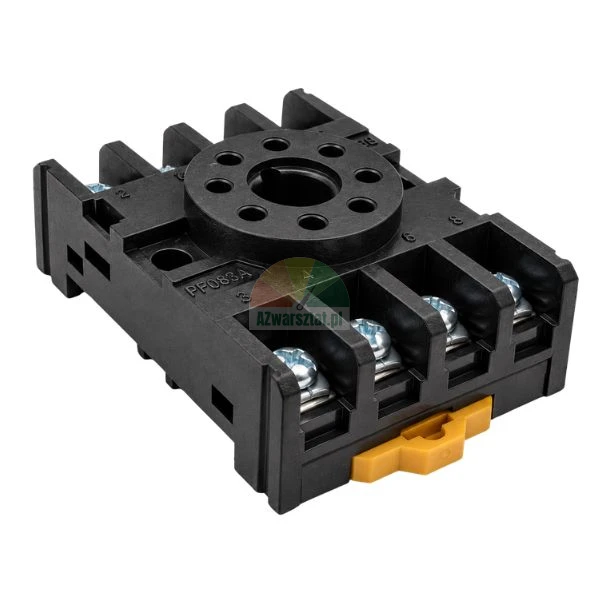

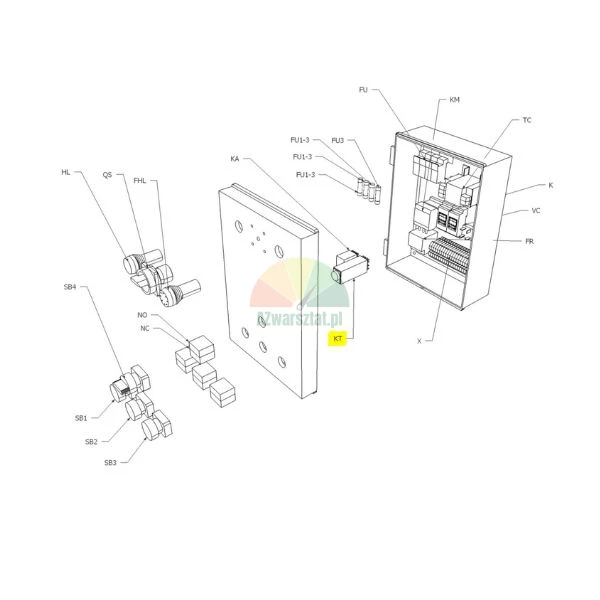

The base is used to connect and mount a time relay within a control system. It has eight screw terminals for connecting wires and a latch at the bottom of the housing for mounting on a DIN rail.
The terminal block is marked with terminal numbers 1–8; therefore, wires must be connected in accordance with the wiring diagram for the specific timer. The numbering of the terminal block must correspond to the timer’s terminals — connections must not be made solely on the basis of the position of the terminals.
Compatibility
The base is compatible with the following time relays:
- P-CZAS-0014
- P-CZAS-0015
- P-CZAS-0016
- P-CZAS-0017
Technical specifications
| Mounting type | DIN rail |
| Terminal type | Screw |
| Number of terminals | 8 |
| Terminal designations | 1–8 |

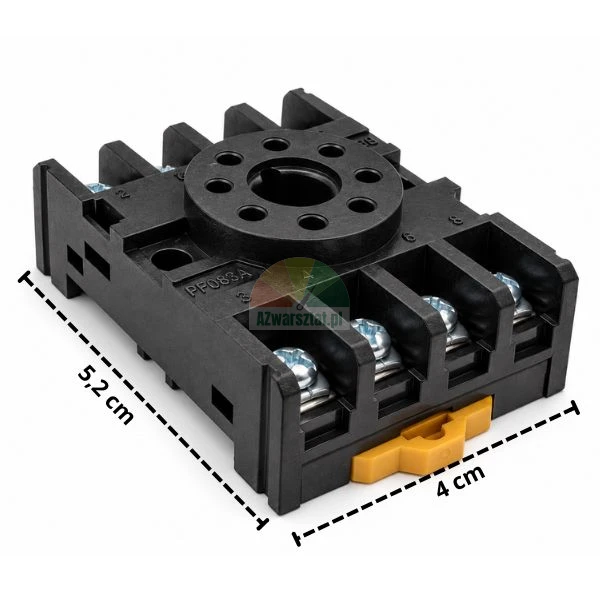

| Dimensions as shown in the photo | approx. 5.2 × 4 cm |
Installation and maintenance instructions
Before connecting the wires, check that the markings on the relay correspond to the numbering on the base. In time relays, mixing up the power supply terminals, control input and output contacts may cause the system to malfunction, and applying voltage to the wrong terminal may damage the relay or components of the controller.
Screw terminals should grip the wire securely and without any play. A loose wire increases the resistance of the connection; the first signs may include erratic operation of the relay, momentary signal dropouts or a single terminal becoming hot, before visible scorching of the casing occurs.
When replacing a relay, ensure that its terminals fit into the socket without being forced in at an angle. Any play in the socket, bent contacts or the relay being only partially inserted will increase the resistance of the connection and may transmit vibrations to the terminals and wires.

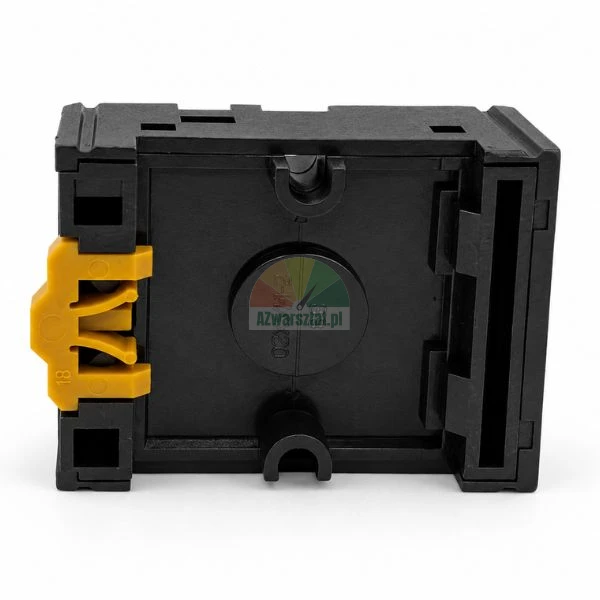

The yellow latch allows the socket to be secured on the DIN rail. Before connecting the wires, check that the socket is correctly seated on the rail; the tension in the wires should not exert force on the latch or cause the entire socket to tilt.
Important: the base acts as an intermediary between the relay and the installation. It does not replace circuit protection or surge suppression components. Load parameters must be taken from the documentation for the time relay used and the entire control system.
