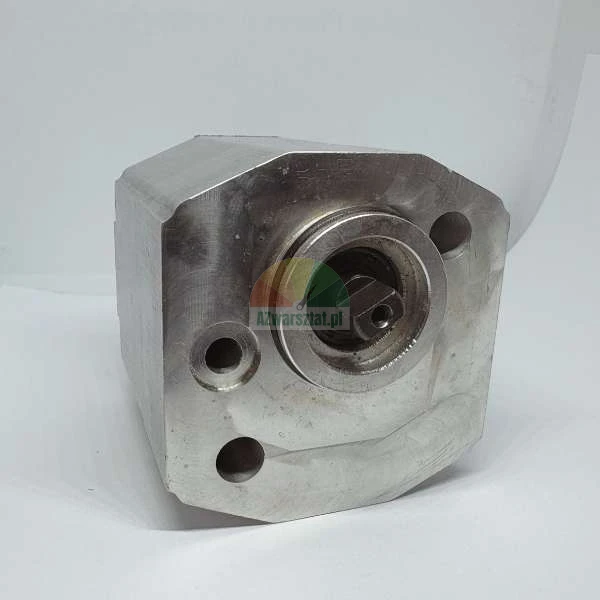

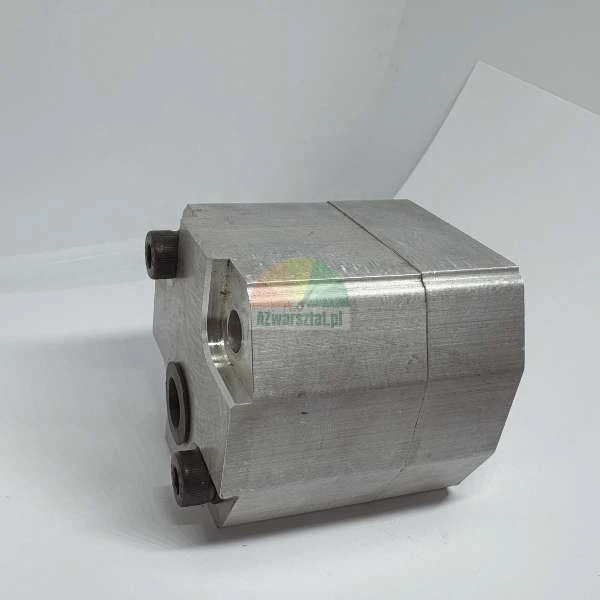

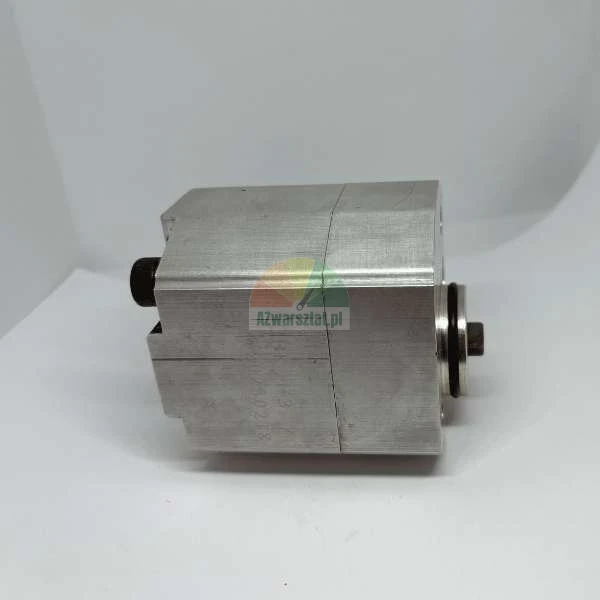

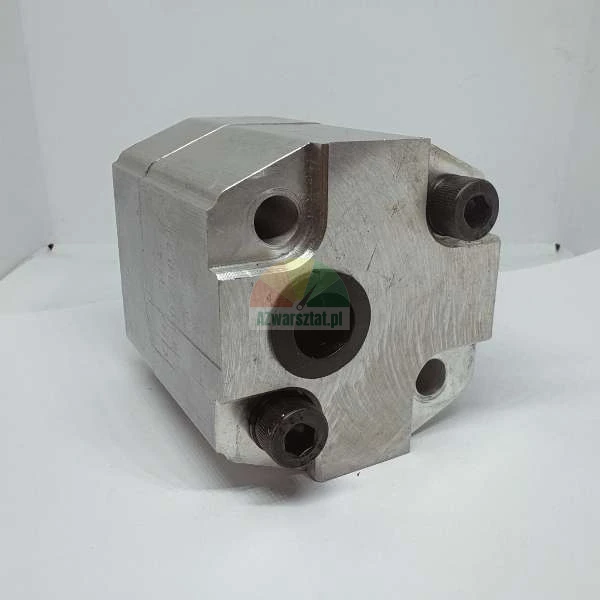

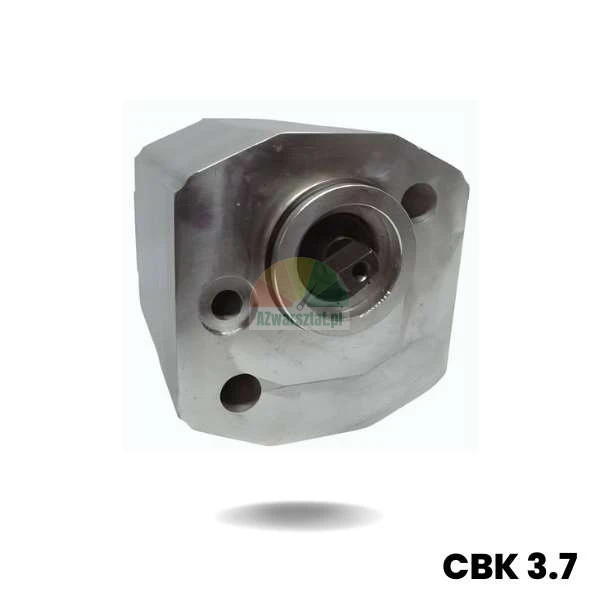

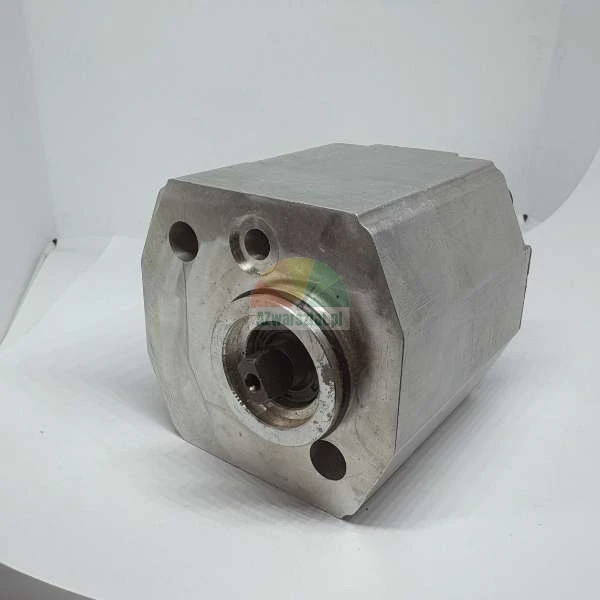

Gear pump 3.7 - CBK 3.7
Reliability and precision for workshop machines
Gear pump 3.7 (CBK 3.7) is a high-end hydraulic component designed for vehicle jacks. Thanks to its robust, simple design, it ensures reliability, long service life and stable operation even in demanding workshop conditions. It is compatible with many popular machine models and is an excellent replacement for original parts.
The ideal choice for professional workshops and service shops - guaranteeing stable operation of hydraulic systems!
Key features and specifications
- Type: Gear pump, group 1
- Displacement: 3.7 cm³/rev (unit capacity)
- Maximum operating pressure: Up to 250 bar (25 MPa)
- Maximum speed: up to 6000 rpm
- Direction of rotation: clockwise
- Operating temperature range: -20°C to +90°C
- Mounting: European standard, 25.4 mm plate
- Connections: flanged, inlet/outlet 30 mm
- Precise dimensions:
- Height: 6.7 cm
- Front width: 5 cm
- Overall length: 7.2 cm
- Diameter of central hole: 3.2 cm (outer), 2.4 cm (inner)
The simple design of the gear pump allows for easy installation and service, which minimises machine downtime and reduces operating costs.
Applications
- Wheel assembly machines
- Wheel balancing machines
- Vehicle jacks
- Other hydraulic machines requiring a precise oil flow
Why choose this pump?
- Highly durable - resistant to wear even with intensive use
- Trouble-free operation - proven design and precisionworkmanship
- Versatility - wide range of applications in power hydraulics
- Easy and quick assembly - dimensional and mounting compatibility
- Immediatelyavailable - fast shipping and technical support
Choose 3.7 gear pumps from our range and ensure your machines are reliable and productive for years to come!

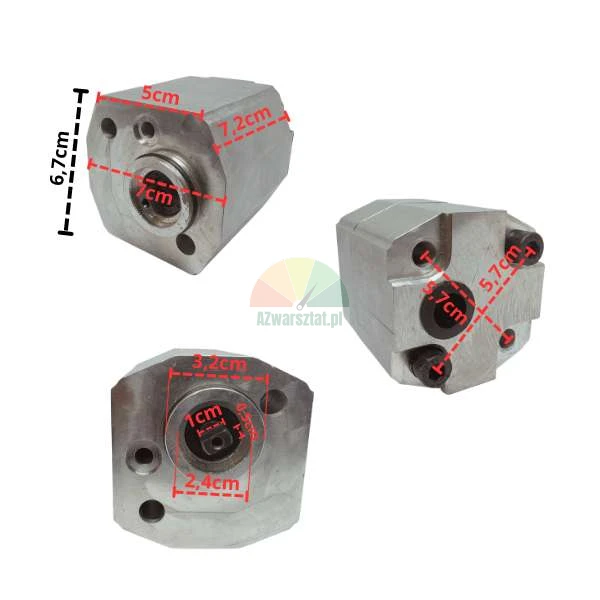

CBK 3.7 gear pump - view with dimensions:
- Height: 6.7 cm
- Front width: 5 cm
- Overall length: 7.2 cm
- Diameter of central hole: 3.2 cm (outer), 2.4 cm (inner)
Gear pump 3.7, hydraulic pump for assembly machines, balancing pump, car jack pump, hydraulic pump replacement, CBK 3.7, gear pump group 1.
