Hydraulic cylinder piston seal 63x47x31mm (compact/combined)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-USZC-0010
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

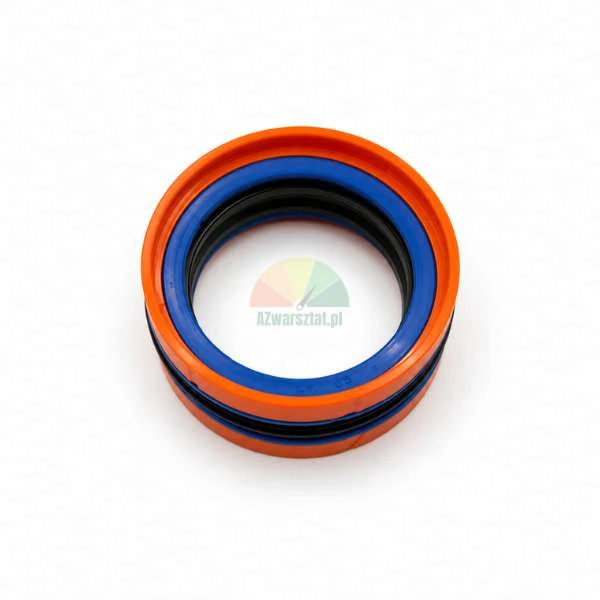

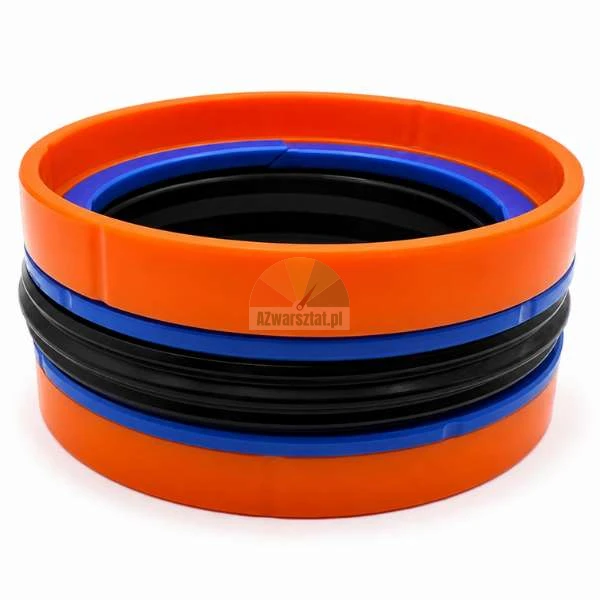

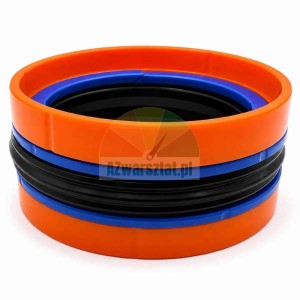

Hydraulic cylinder piston seal, 63 x 47 x 31.1 mm
Compact piston seal for hydraulic cylinders, dimensions 63 x 47 x 31.1 mm. The component ensures the piston seals properly within the cylinder and prevents oil leakage between the cylinder chambers. Used, for example, in car lifts and other hydraulically powered workshop equipment.

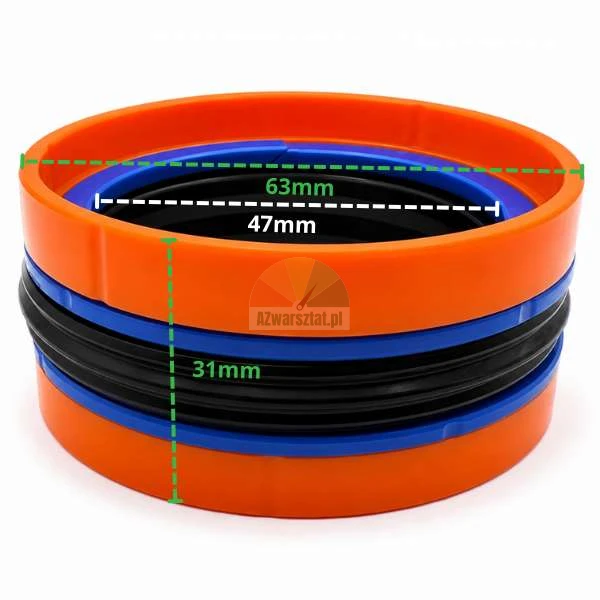

- 63 mm – outer diameter (cylinder diameter)
- 47 mm – internal diameter (piston rod diameter)
- 31.1 mm – seal installation height
Technical specifications
| Product type | Hydraulic cylinder piston seal |
| Dimensions | 63 × 47 × 31.1 mm |
| Outer diameter | 63 mm |
| Inner diameter | 47 mm |
| Height | 31.1 mm |
| Material | NBR rubber + PU rings + POM guide |
| Pressure resistance | up to 35 MPa / 5076 PSI |
| Operating pressure | 25 MPa |
| Operating temperature range | from –30°C to +110°C |
| Operating speed | 0.5 m/s |
| Colour | orange / blue / black |
| Applications | hydraulic cylinders, industrial machinery, excavators, injection moulding machines |
| Condition | new |

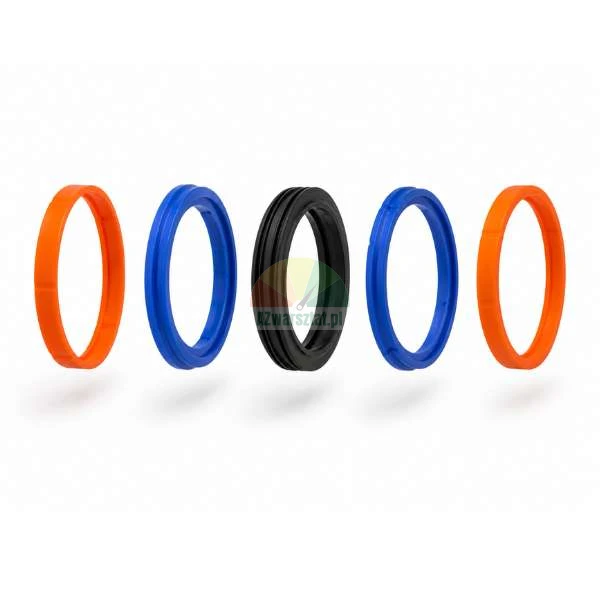

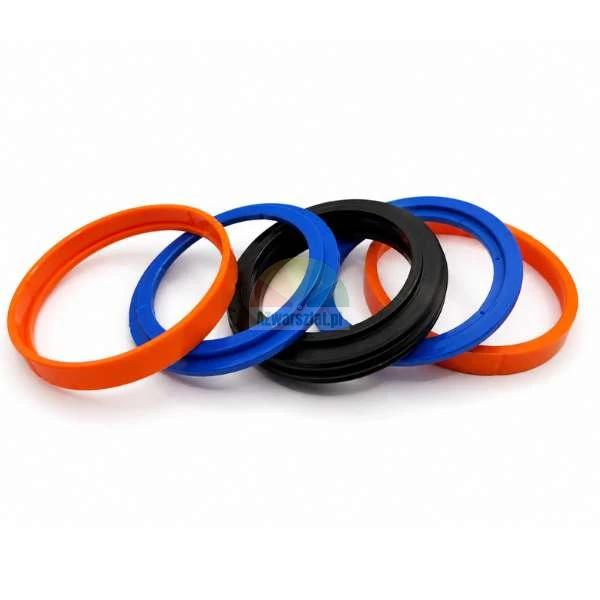

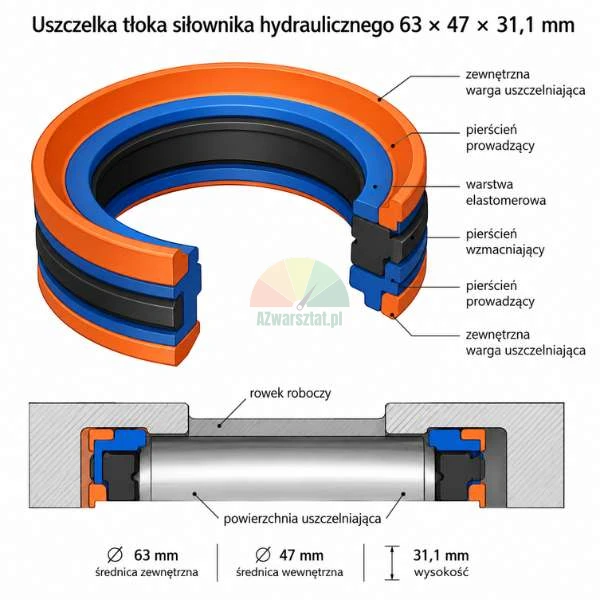

Construction of the cylinder piston seal
This is a compact seal combining several functions in a single unit. The outer polyurethane rings act as guides and supports, whilst the central rubber element ensures proper dynamic sealing. This design provides stable piston operation under load, as well as resistance to abrasion and high operating pressure.
When to replace the piston seal
A worn cylinder piston seal manifests itself as the lift dropping spontaneously, a loss of lifting force, or oil leaks inside the cylinder. Regular replacement restores the system’s full sealing integrity and supports safe operation of the equipment.
Do you have questions about selecting a piston seal?
Not sure if this size fits your cylinder? Give us a call – we’ll help you select the right seal based on the catalogue number or dimensions. Tel. 534 920 100.
