Indicator light LED green 22 mm AC/DC 24V
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-SYGN-0002
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

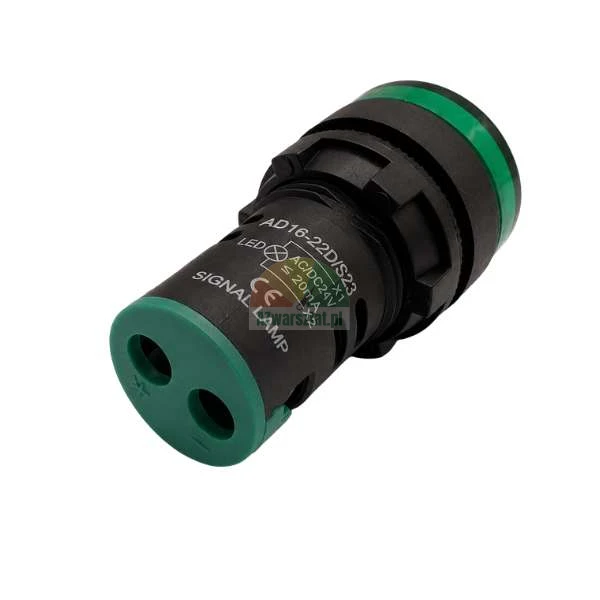

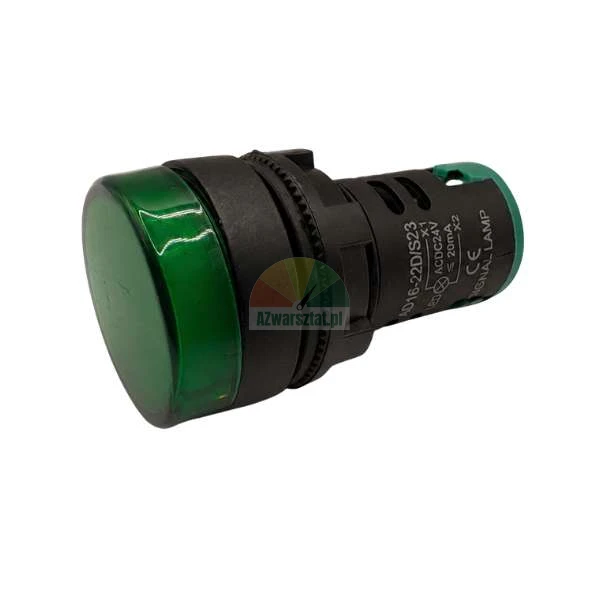

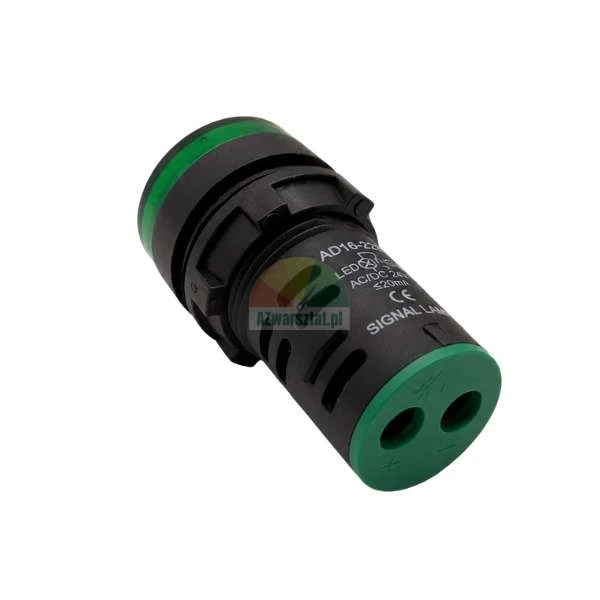

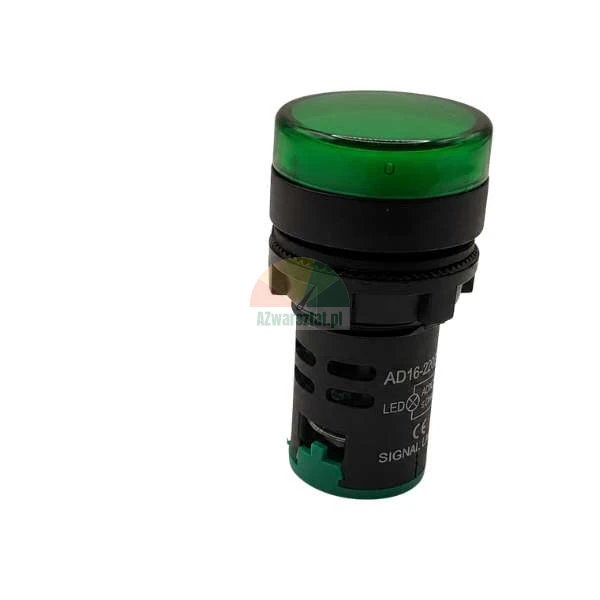

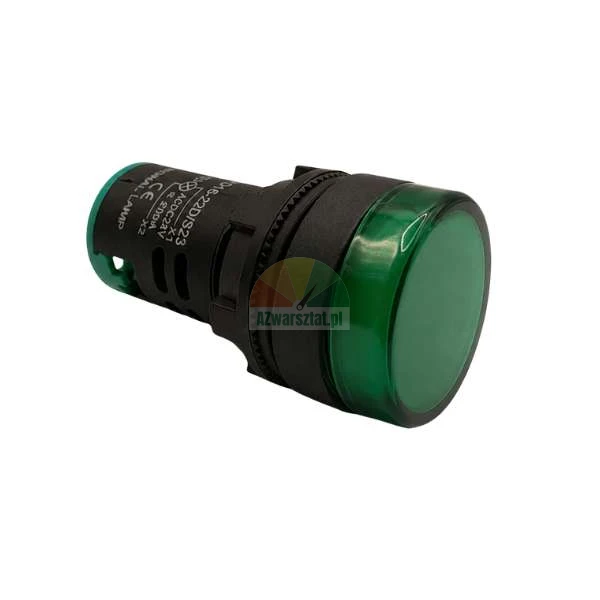

LED indicator light green 22 mm AC/DC 24V
High-quality green LED indicator light dedicated to control panels and consoles of workshop machines. An indispensable spare part for vehicle lifts, tyre changers and wheel balancers, providing clear indication of the equipment's operating status.
Main product advantages
The use of modern LED technology ensures a long service life, excellent visibility and very low energy consumption. The light is highly resistant to shocks and vibrations common in demanding workshop environments.
Technical data:
- Model: AD16-22D (AD16-22D/S23)
- Supply voltage: AC/DC 24V
- Current consumption: ≤ 20mA
- Light colour: Green
- Mounting hole diameter: 22 mm

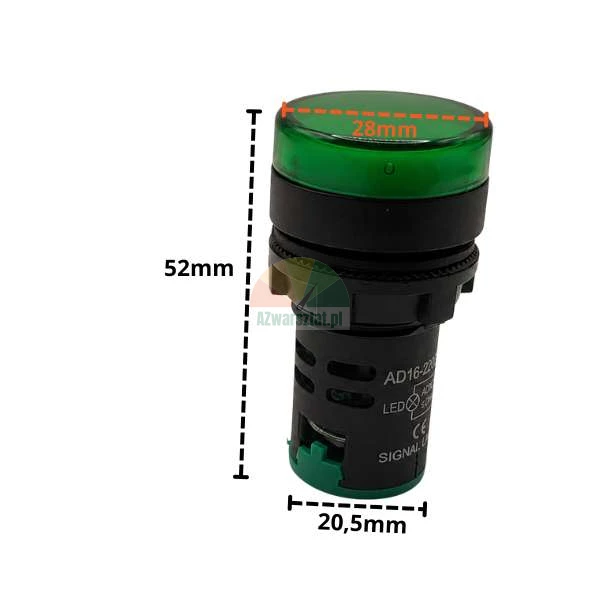

- Overall dimensions: height 52 mm, head diameter 28 mm, thread diameter 20.5 mm
- Compliance with standards: CE
Universal use
The standardised thread allows trouble-free installation in holes with a diameter of 22 mm, which are the absolute standard for most vulcanising and workshop machines on the market.
