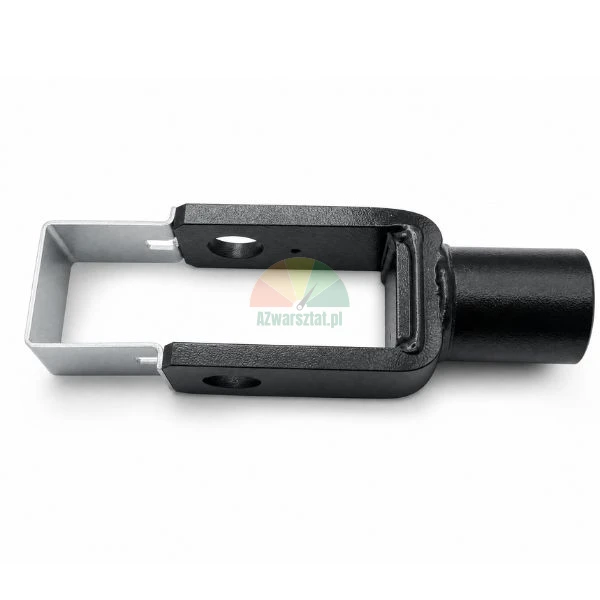

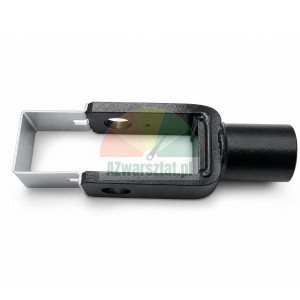

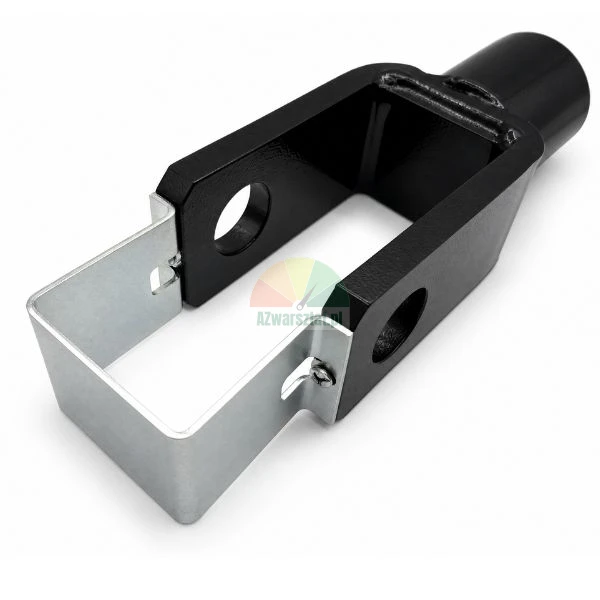

Chain guide wheel bracket for a car lift (38 mm)
A high-quality guide wheel bracket, designed for professional car hoists. This component is essential for ensuring the smooth and trouble-free operation of the lifting system. Thanks to its integrated, specialised guard, it effectively prevents the chain from accidentally slipping off the roller during use.
Robust construction and safety: The bracket is made from thick, durable steel joined by strong welds. This guarantees complete operational safety even at the jack’s maximum load capacity.
Technical specifications and exact dimensions

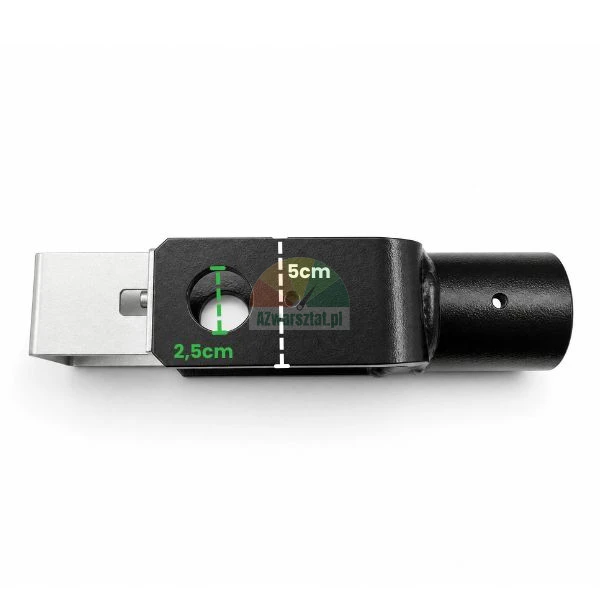

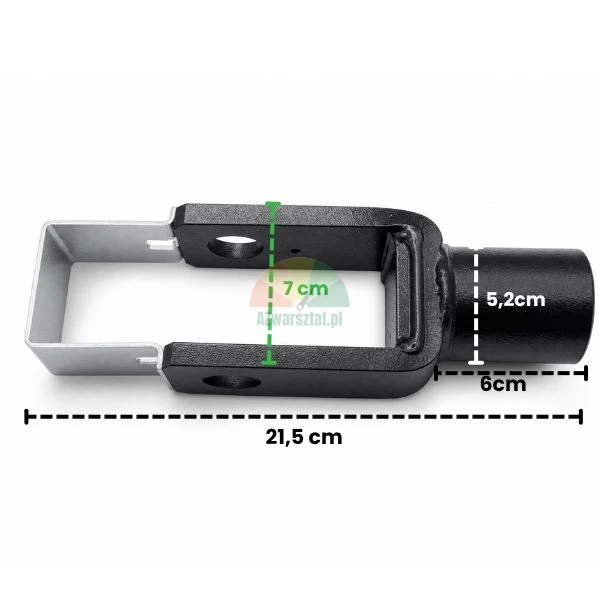

Before purchasing, please ensure that the dimensions match the damaged part in your equipment. The details have been precisely measured and marked on the illustrative photographs:
- Overall length: 21.5 cm
- Internal width (installation space for the roller): 7 cm
- Diameter of the pin hole: 2.5 cm
- Height of side profile: 5 cm
- Length of the mounting sleeve: 6 cm
- Outer diameter of fixing sleeve: 5.2 cm

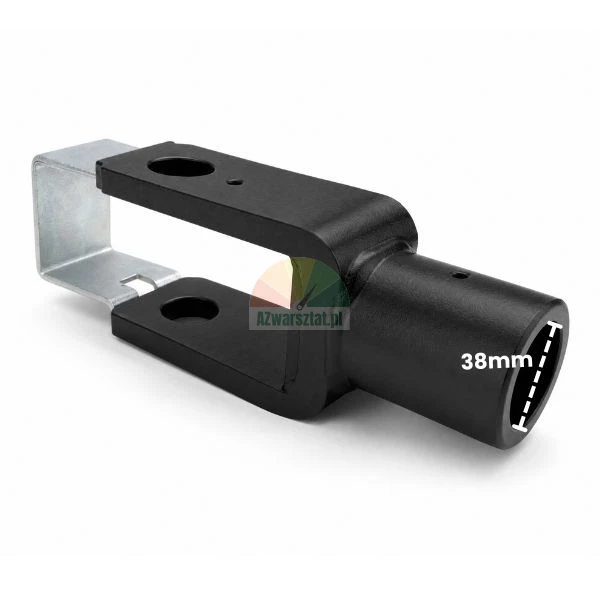

- Version / Variant: 38 mm
Spare parts from azwarsztat.pl
Our spare parts for lifts, tyre changers and wheel balancers are characterised by the highest precision of manufacture and reliability. The clamp on offer is coated with a protective layer that prevents corrosion and significantly extends the component’s service life in harsh workshop conditions.
The ideal choice for servicing and refurbishing workshop lifts. Trust the experts and ensure your equipment runs smoothly.
