Limit switch with spindle
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-KRAN-0008
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

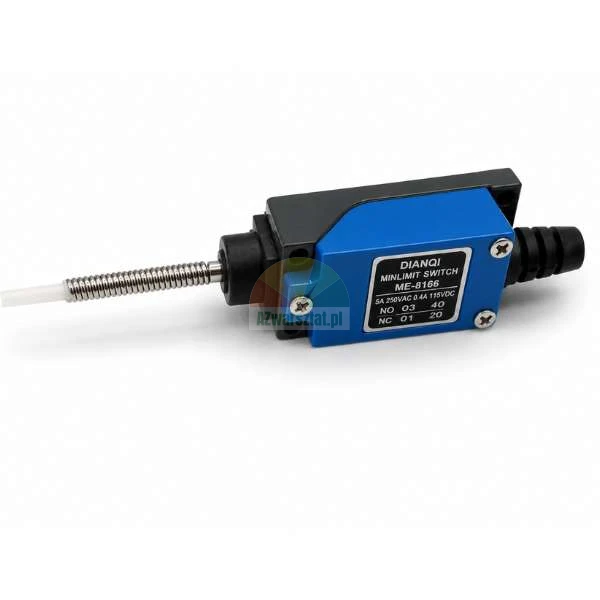

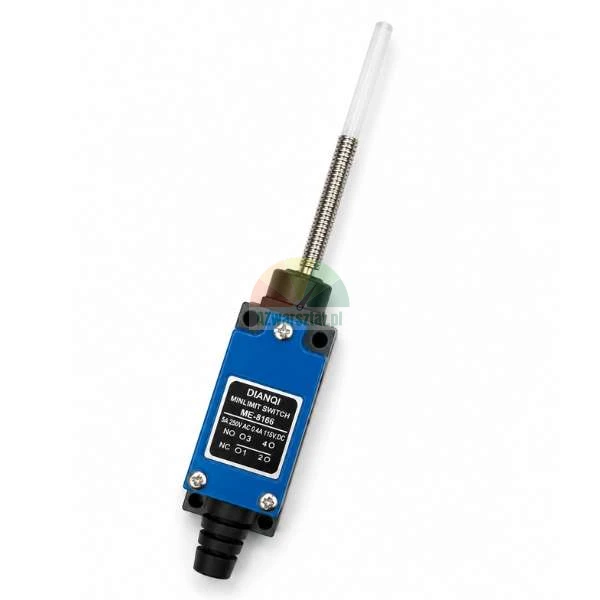

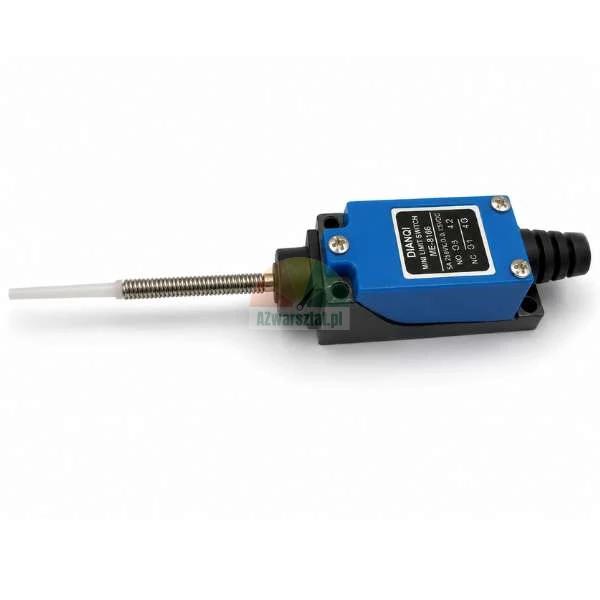

Flexible stem limit switch (ME-8166)
A high-quality limit switch with flexible stem, designed for reliable operation in demanding industrial and workshop environments. It is the ideal replacement part for car lifts, tyre changers and wheel balancers, ensuring precise control of the moving mechanisms in your equipment.
Key benefit – universal operation: Thanks to the use of a flexible spring ending in a robust plastic pin, the switch can be safely activated from various angles and directions. The spring absorbs the impact force perfectly, minimising the risk of damage to the machine itself.
Technical data
- Model: ME-8166 (DIANQI)
- Current capacity: 5A 250V AC / 0.4A 115V DC
- Contact configuration: 1 NO (Normally Open) + 1 NC (Normally Closed)
- Mechanism type: Swivelling spring pin

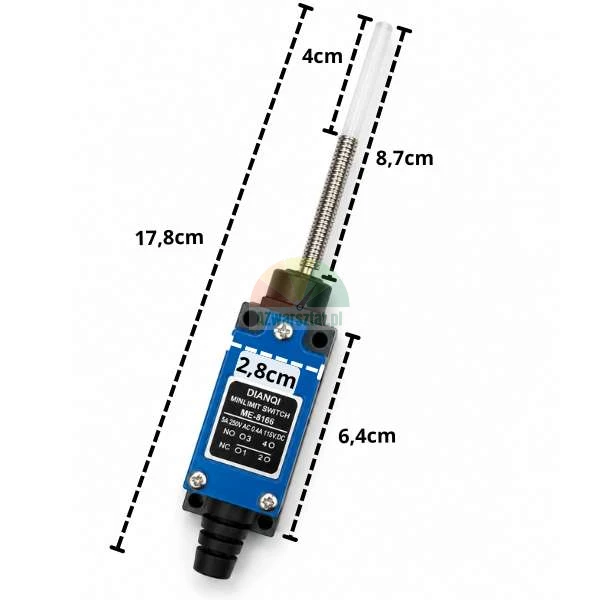

Product dimensions
- Overall length: 17.8 cm
- Body dimension: 6.4 cm (length) x 2.8 cm (width)
- Length of spring element with tip: 8.7 cm
- Length of tip itself (plastic): 4 cm
The compact, two-colour housing effectively shields the internal mechanism from contaminants typical of the workshop, such as grease, oil or dust. The bottom outlet with cable gland insulates and protects the wires. The materials used ensure a long service life and trouble-free operation even under the most intensive use of vulcanising and workshop machines.
