Drain valve for 13mm/G19mm coil
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-ZAWO-0021
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

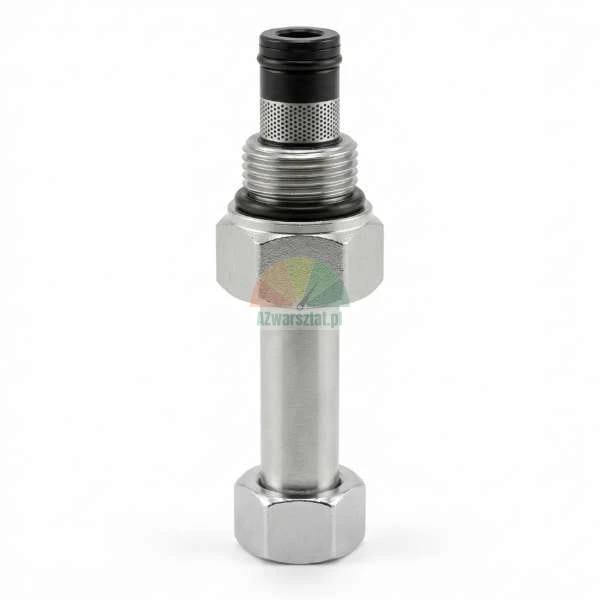

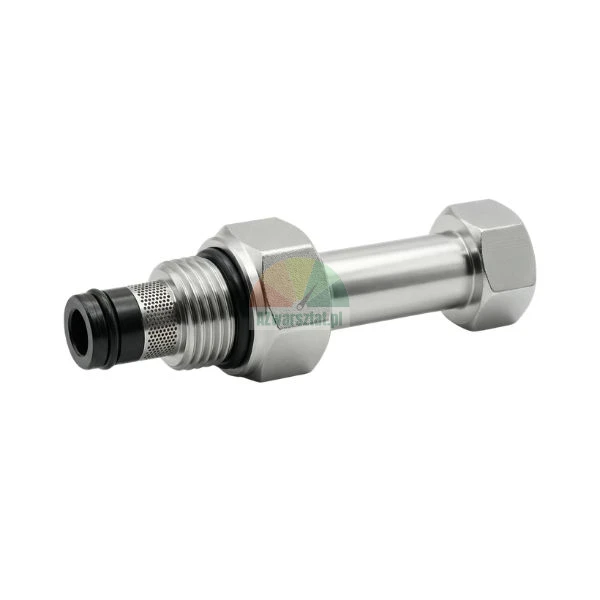

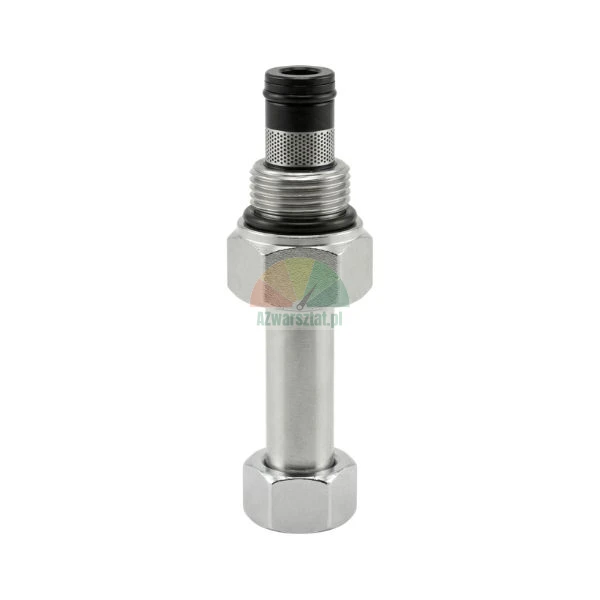

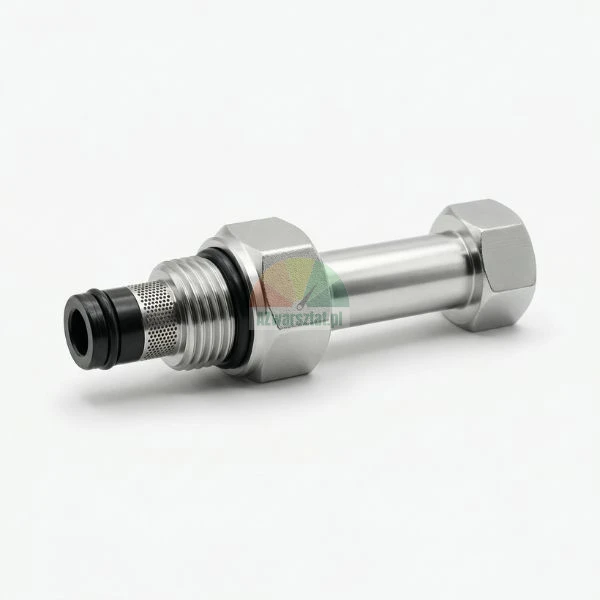

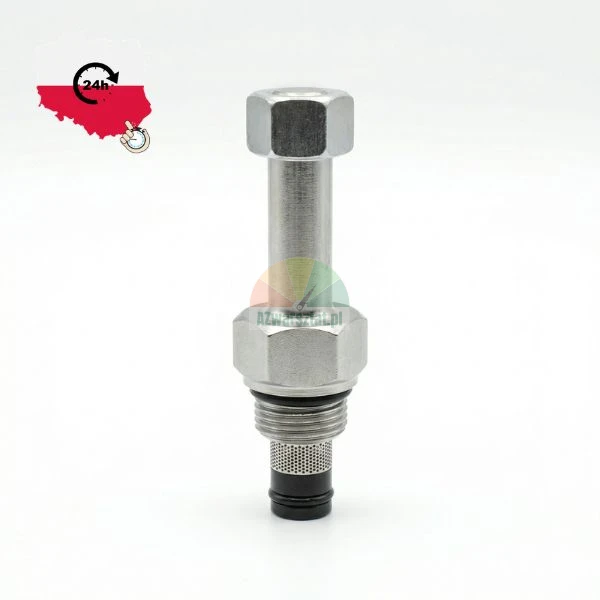

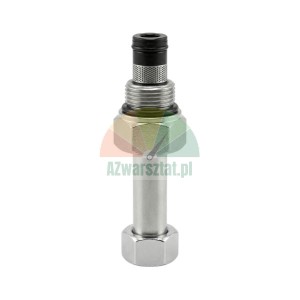

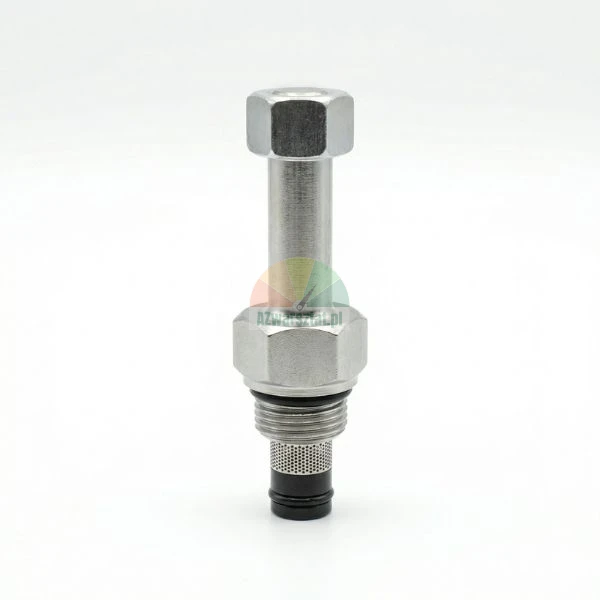

Lowering valve for 13mm / 19mm cylinders
A high-quality lowering valve designed for hydraulic units in car lifts and other workshop machinery. Designed with reliability and long-term operation in mind, it is a key component of the control system, working in precise coordination with the solenoid.
Important: The valve is factory-fitted with an integrated fine mesh filter. This effectively protects the hydraulic system against any micro-contaminants, which significantly extends the service life of the pump itself and the entire mechanism.
Dimensions and technical specifications

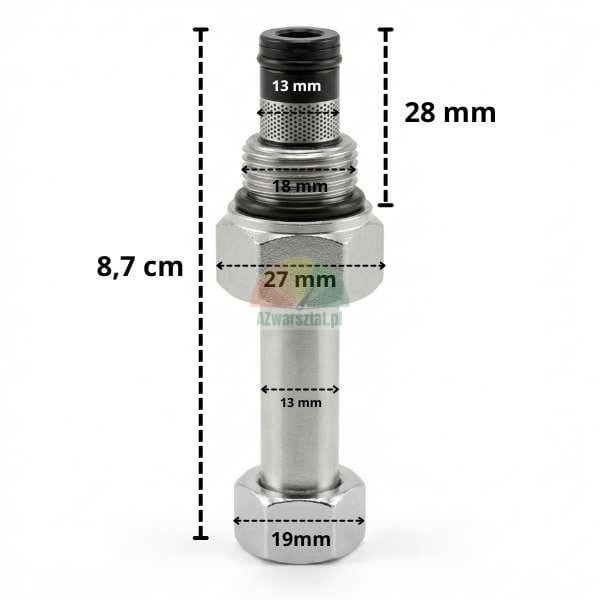

Please check the dimensions of the old component carefully before making a purchase. Below are the detailed specifications of the valve on offer, based on the diagram:
- Overall length: 8.7 cm (87 mm)
- Diameter of the upper stem (the part that fits into the coil): 13 mm
- Length of the upper section: 28 mm
- Diameter of the fixing thread: 18 mm
- Spanner size (main/centre nut): 27 mm
- Diameter of lower shank: 13 mm
- Spanner size (lower nut): 19 mm
Ready for safe installation
The valve shown is a complete unit with all necessary seals (O-rings) pre-fitted. Its robust construction from high-grade steel ensures resistance to high operating pressures and long-term loads in workshop conditions.
We offer only top-quality spare parts. Put your trust in the specialists at azwarsztat.pl and equip your workshop with tried-and-tested, durable components for lifts, tyre changers and wheel balancers!
