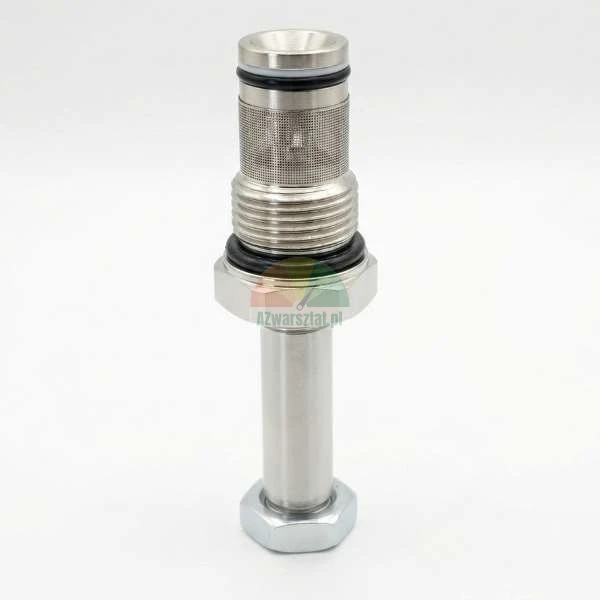

Lowering valve for solenoid 16mm / G27mm
High quality lowering valve designed for hydraulic power units and power packs used in vehicle lifts. It is responsible for the smooth and fully controlled lowering of the lift, which is absolutely key to maintaining safety in every professional mechanical and tyre service workshop.

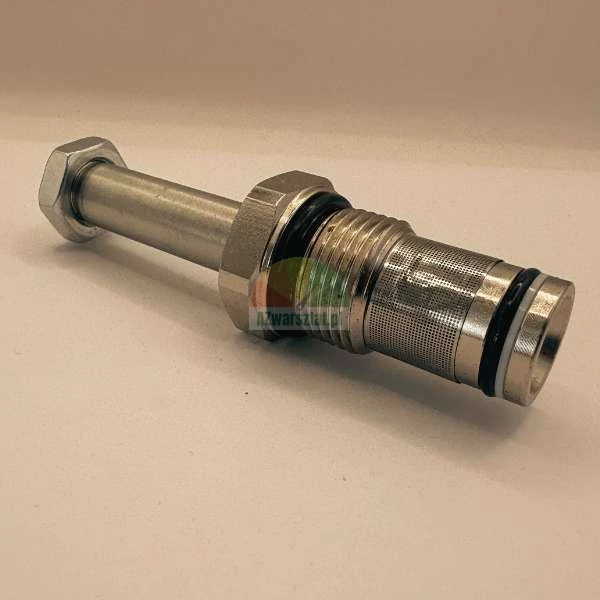

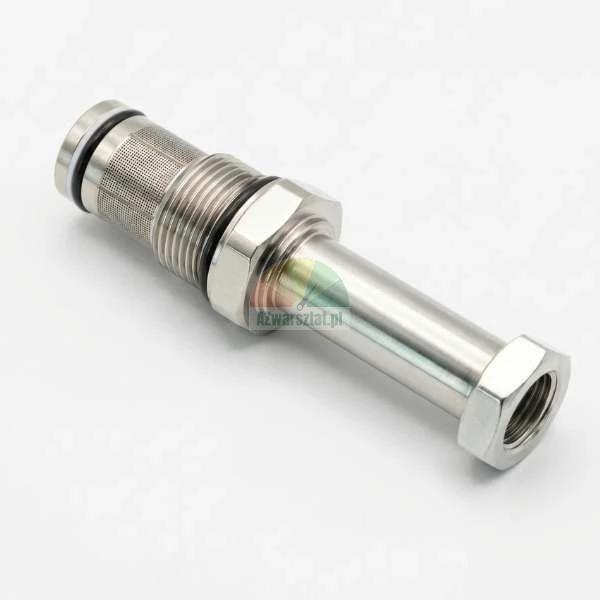

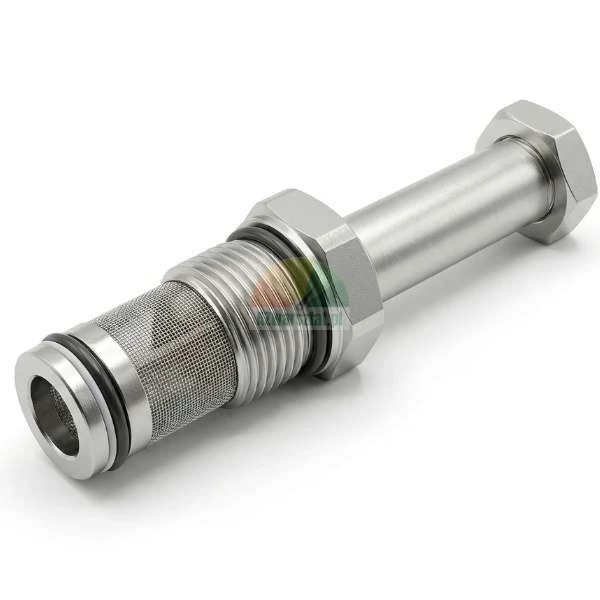

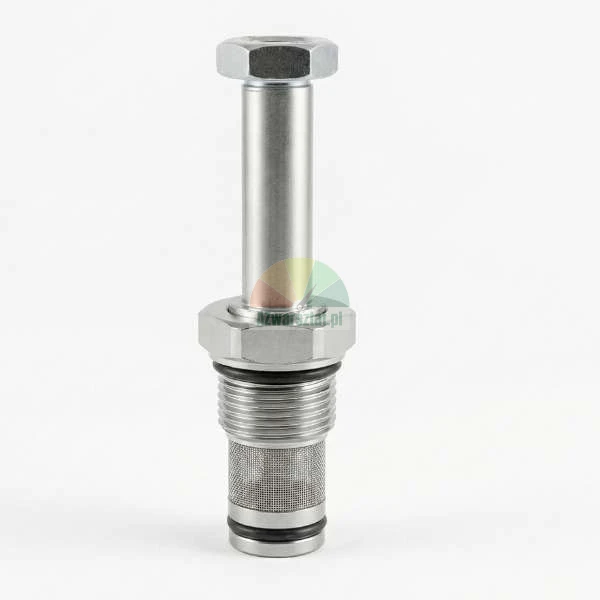

The valve is equipped with an integrated, fine mesh filter. It effectively protects the entire hydraulic system from the ingress of harmful contaminants, drastically reducing the risk of valve blockage and extending the service life of the pump.

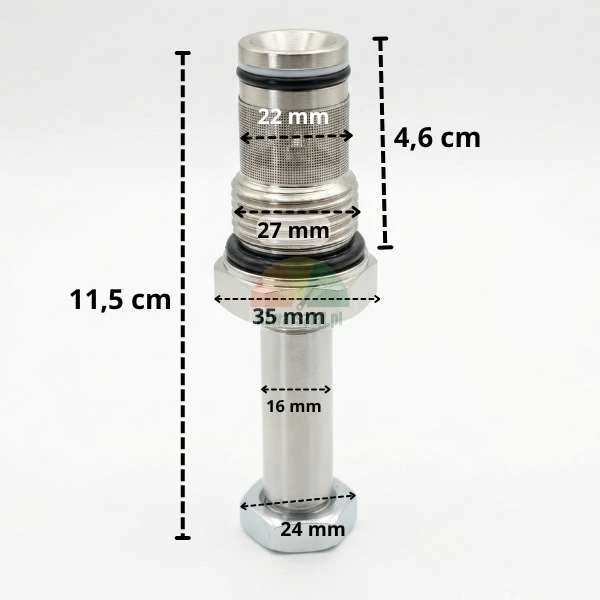

Detailed technical specifications (dimensions):
- Overall length: 11.5 cm
- Stem diameter (under the solenoid): 16 mm
- Mounting thread diameter: 27 mm
- Spanner size (centre nut): 35 mm
- Spanner size (bottom nut): 24 mm
- Length of upper part (with filter): 4.6 cm
- Diameter of upper part (with filter): 22 mm
Robust construction and tightness
The valve presented is compatible with solenoids with a mounting hole diameter of 16 mm. The use of thick, reinforced materials together with precision-made threads and sealing O-rings ensures trouble-free operation even under very high pressure conditions.
When you buy from azworkshop.eu, you are guaranteed the highest quality. We offer durable spare parts dedicated to vehicle lifts, tyre changers and wheel balancers working at full capacity in demanding workshops.
