Pneumatic jack cylinder CDM2B25-100

Secure payment

30 days to return

Fast shipping

€37.37

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

CDM2B25-100 pneumatic lift actuator

The CDM2B25-100 pneumatic cylinder is a high-end component dedicated to car lifts. The product comes from the renowned CM2/CM3 series from SMC, which guarantees reliability, precision and long service life even in heavily used workshops.

An ideal replacement for most popular car lifts and workshop machines!

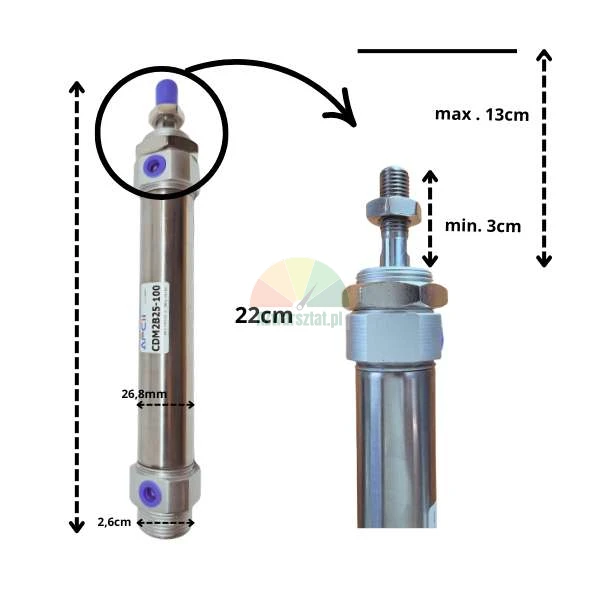

Siłownik pneumatyczny CDM2B25-100 - wymiary

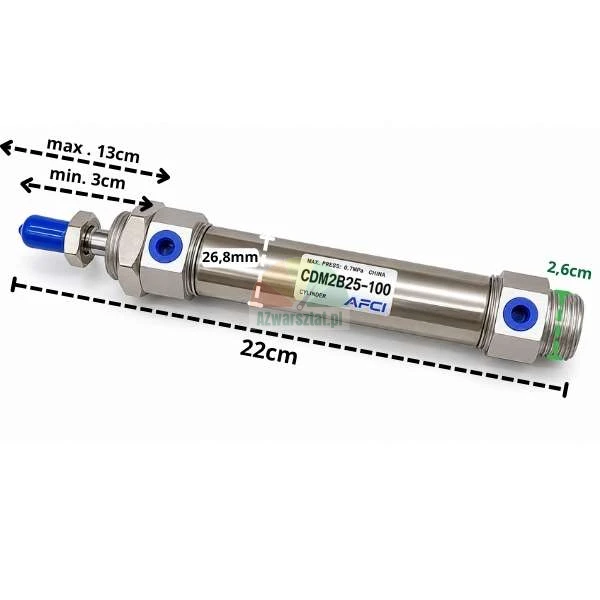

The photo shows the pneumatic cylinder CDM2B25-100.
Dimensions: overall length (without extended piston rod) 22 cm, piston rod extension length from 3 cm to 13 cm, body diameter 26.8 mm, piston rod diameter 2.6 cm.

Dimensions and technical specifications:

Piston diameter: 25 mm
Working stroke: 100 mm
Overall length (without extended piston rod): 22 cm
Length of piston rod extension: 3 cm to 13 cm
Body diameter: 26.8 mm
Piston rod diameter: 2.6 cm
Type of action: Double Acting - the piston works in both directions
Connection thread: Rc (pneumatic standard)
Possibility of mounting position sensors: Yes (versions with magnet)
Material: High-quality aluminium - resistant to corrosion and mechanical damage

The CDM2B25-100 actuator is compatible with a wide range of lift models and workshop equipment, making it a versatile and practical solution for any service.

Key features and benefits:

High precision operation - smooth and stable piston movement
Easy installation - universal, standardised dimensions and connections
High leak-tightness and durability - resistant to intensive use
Resistant to corrosion and mechanical damage
Possibility to mount position sensors - for precise control of operation
Original SMC product - guarantee of quality and availability of spare parts
Compatible with many machine models

Choose the CDM2B25-100 pneumatic actuator and ensure reliability and a long service life for your workshop equipment!
