Seal for UHS lift cylinder 38x48x6
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-USZC-0008
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

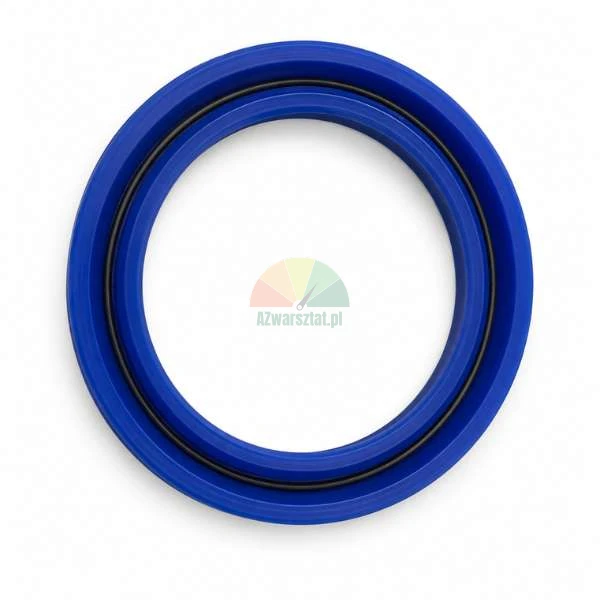

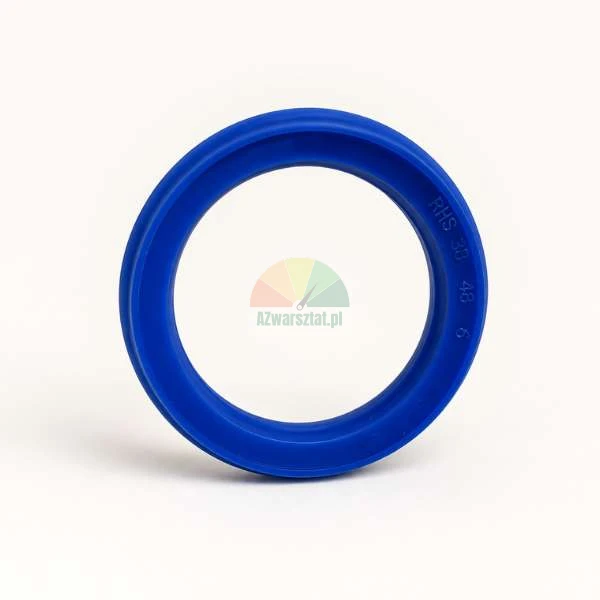

UHS 38x48x6 lift cylinder seal
High-quality polyurethane piston seal, designed for demanding hydraulic systems in vehicle lifts, tyre changers and wheel balancers. It ensures perfect sealing and a long service life even under intensive use in professional workshop conditions.
Technical details and dimensions
The seal is precision-made from durable blue polyurethane (PU). Its distinctive asymmetrical profile performs excellently under high operating pressure.
- Internal diameter: 38 mm
- Outer diameter: 48 mm
- Height (thickness): 6 mm
- Profile: UHS / RHS (with integrated black O-ring)

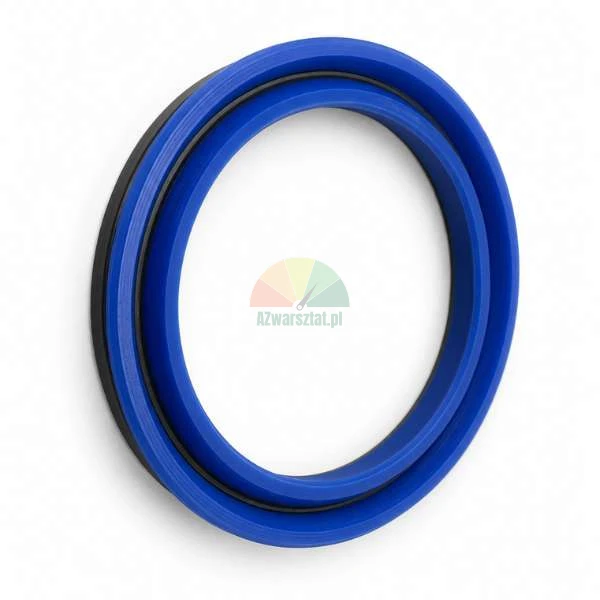

Unique design: The internal black expansion ring (O-ring) ensures initial contact between the sealing lips. As a result, the seal maintains full system tightness even at the lowest operating pressures, effectively preventing unwanted lowering of the lifting arms.
Application and installation
This component is extremely important for the proper operation of the lifting system. It reliably prevents internal hydraulic fluid leaks between the cylinder chambers.
Important service information: In accordance with the attached technical diagram of the cylinder, the seal offered is marked as item no. 154 in the drawing. This component is fitted directly onto the piston, at the end of the main piston rod (no. 156). Please note that the design requires the use of two such seals.
Choose original and proven spare parts from AZ Workshop. Give your equipment the reliability you can count on every day!
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
