Seal for UN lift cylinder 50x60x6
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-USZC-0013
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

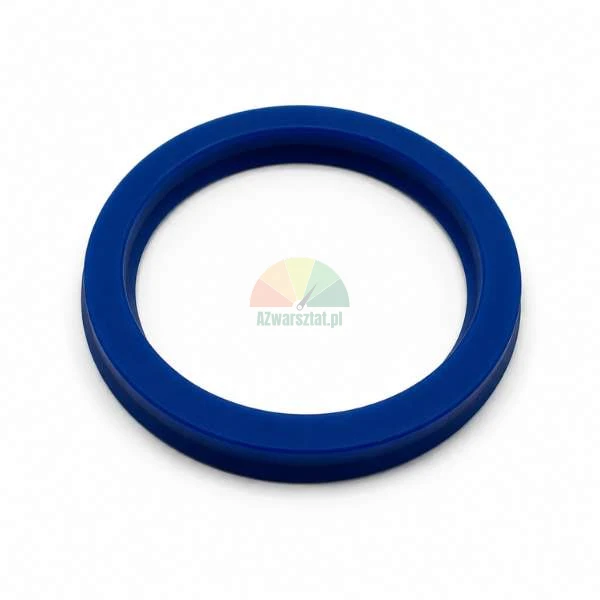

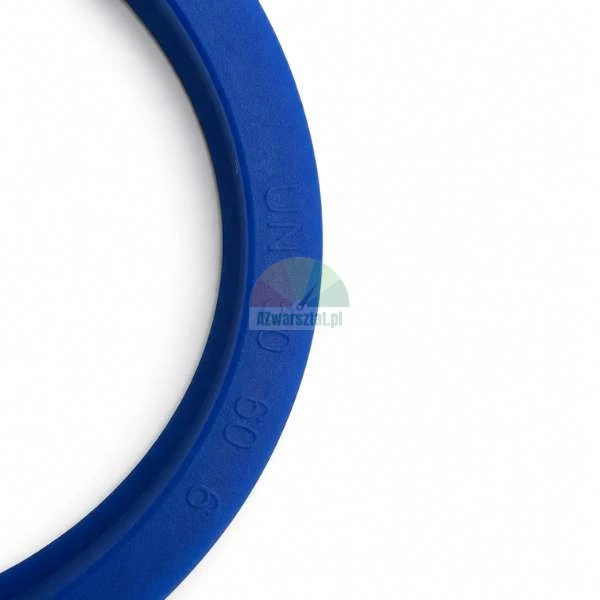

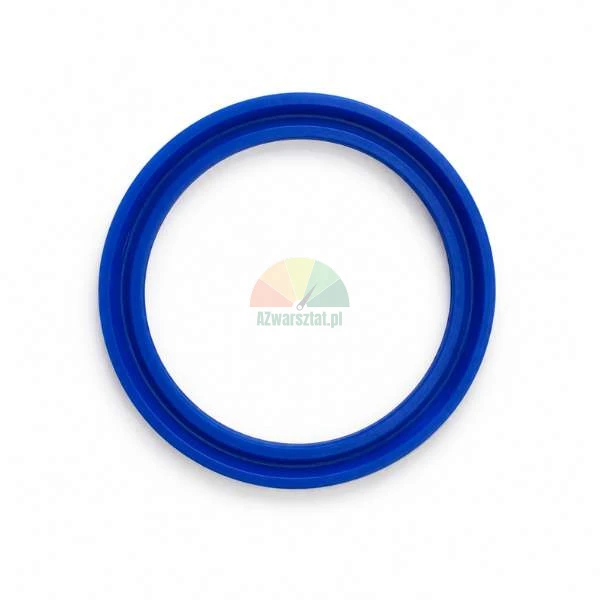

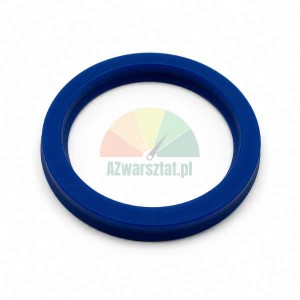

UN 50x60x6 cylinder seal
High-quality UN-profile seal (symmetrical lip seal), designed for hydraulic cylinders in vehicle lifts. It ensures excellent sealing of the lifting system, effectively protecting against dangerous pressure drops and hydraulic fluid leaks.
Technical parameters
- Profile type: UN

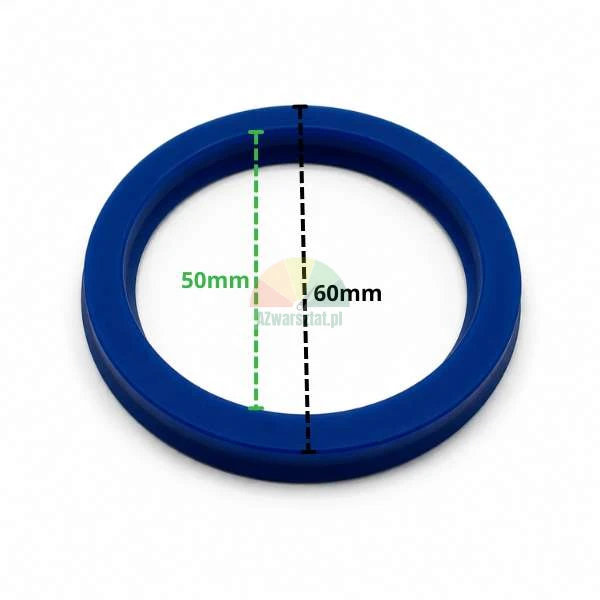

- Internal diameter: 50 mm
- Outer diameter: 60 mm
- Height (thickness): 6 mm
- Application: Hydraulic cylinders for vehicle lifts / car lifts
In accordance with the attached cylinder construction diagram, this seal is fitted directly onto the cylinder piston (marked as component no. 154 on the technical drawing). Regular replacement of these seals is essential for maintaining the machine’s full lifting capacity.
Why choose parts from AZ Workshop?
This product is made from a specially selected polyurethane material, which offers exceptional resistance to abrasion and the corrosive effects of high-pressure hydraulic oils. This ensures long and trouble-free operation of your equipment.
If your lift is slowly lowering under load or you have noticed the cylinder ‘sweating’, replacing the internal seals is an essential maintenance step. Choose proven solutions and restore your workshop to full working order!
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
