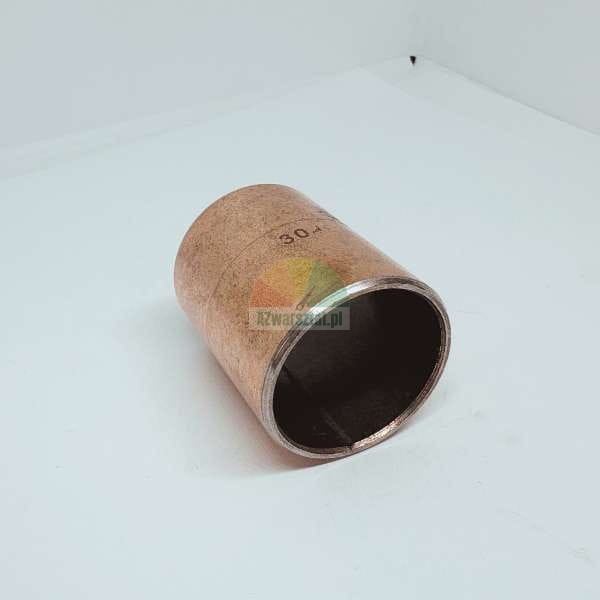

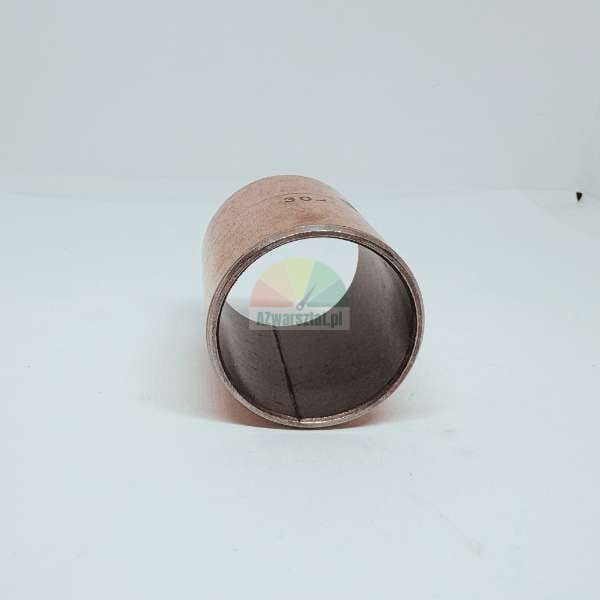

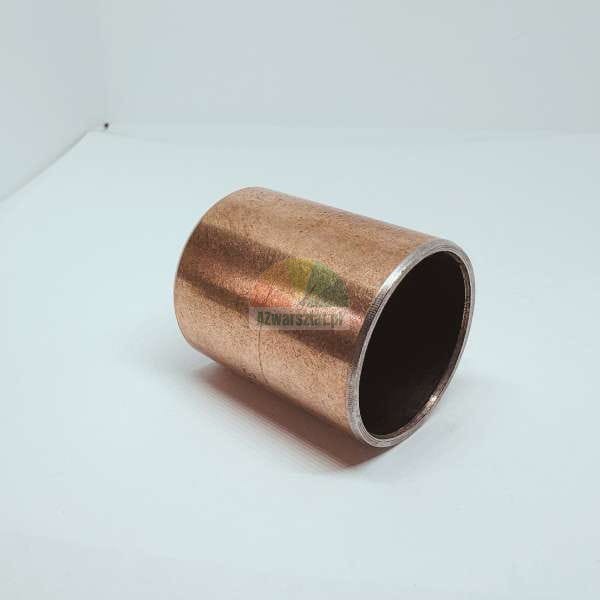

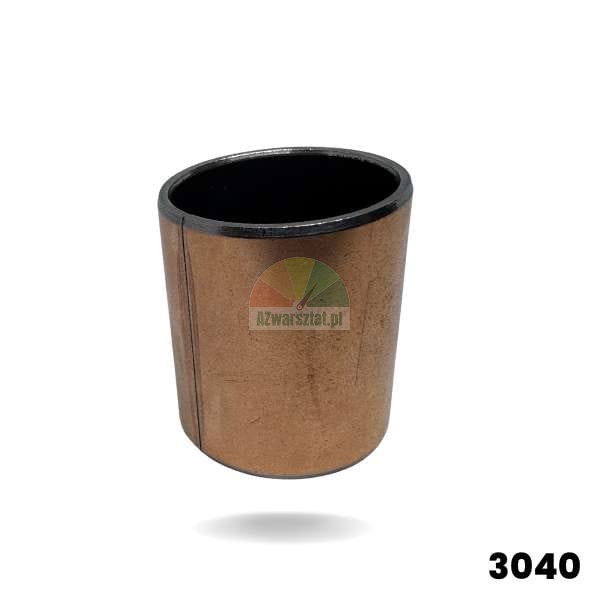

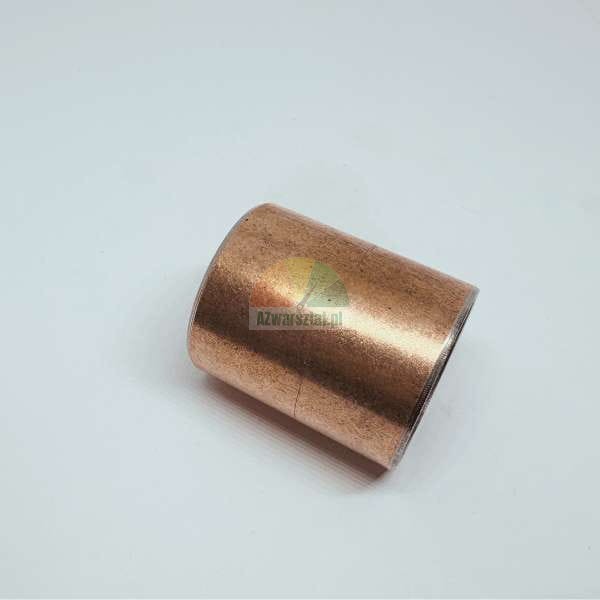

Self-lubricating bushing 3040
The self-lubricating bushing 3040 is a high-quality sliding element made of a high-tech PTFE composite on steel, designed for tyre changers, wheel balancers and vehicle lifts. Thanks to its innovative design, the bushing ensures a low coefficient of friction, significantly reduces wear and guarantees a long service life even under intensive use.
The 3040 bushing is a reliable solution for service centres and workshops that value maintenance-free operation, minimised machine downtime and reduced service costs.
Technical specifications:

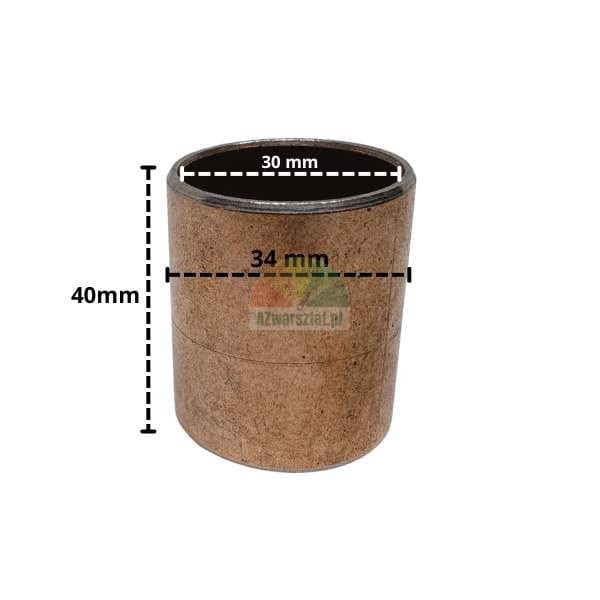

- Dimensions: 30 mm (inner diameter) x 34 mm (outer diameter) x 40 mm (length)
- Material: PTFE sliding layer on steel - abrasion and corrosion resistant
- Replacement markings: PAP 3040, TUP1 3040, 3040DU, BS 3040, KU 3040, PCM 303440 E, PG 303440 F
- Dynamic loading: up to 40 N/mm²
- Operating temperature range: -100°C to +200°C
- Coefficient of friction: 0.08-0.25 (dry running)
- Application: Ideal for areas with limited lubrication access
The 3040 self-lubricating bushing will prove its worth wherever reliability, quiet operation and freedom from regular lubrication are important.
Benefits of the self-lubricating bushing 3040
- Reduced maintenance costs - no lubrication required
- High resistance to wear and corrosion
- Easy replacement and installation
- Quiet and smooth running of machines
- Extended equipment life due to self-lubricating technology
Choose the 3040 self-lubricating bushing and ensure smooth, trouble-free operation of your workshop equipment!
Self-lubricating bushing 3040
Dimensions: 30 mm (inner diameter) x 34 mm (outer diameter) x 40 mm (length)
