Spare parts for workshop lifts, tire changers, and wheel balancers

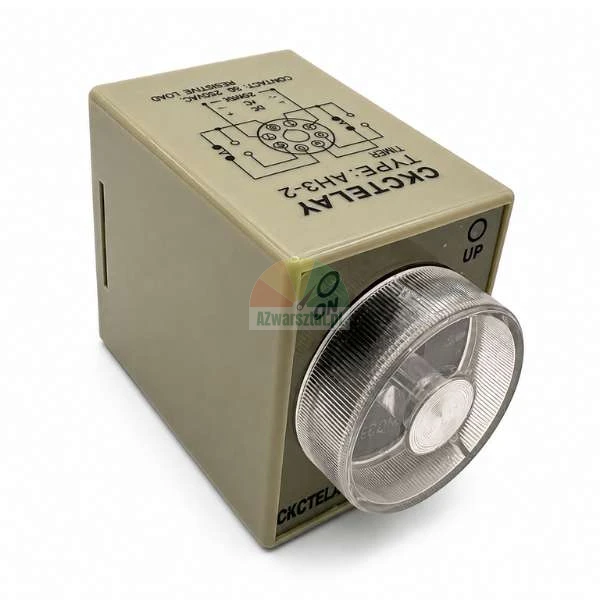

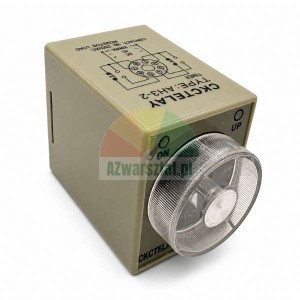

  • CKCTELAY AH3-2 time relay with a rotary dial and a wiring diagram printed on the beige housing.

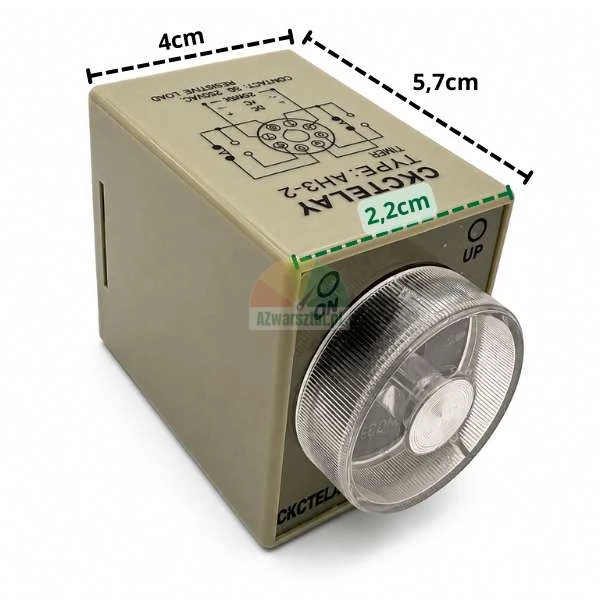

  • AH3-2 24VDC 6s time relay with housing dimensions of 4cm by 5.7cm and a 2.2cm dial.
  • An industrial CKCTELAY Type AH3-2 timer relay with an 8-pin plug-in base, showing the printed wiring diagram on its grey plastic casing against a white background.

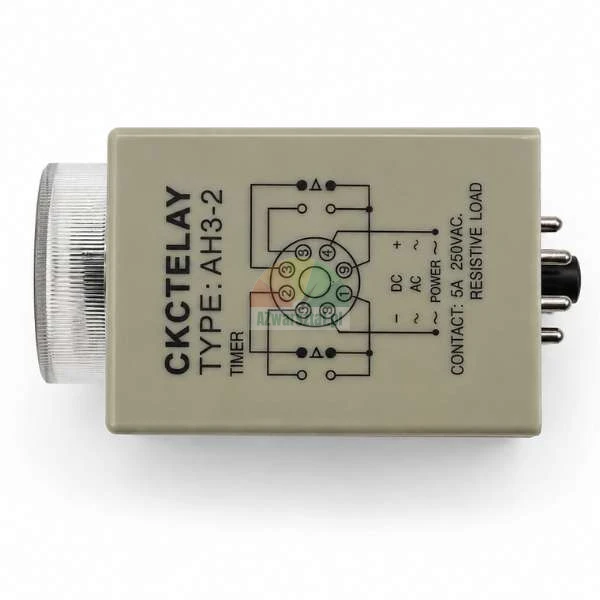

  • Gray CKCTELAY Type AH3-2 timer relay with a clear plastic adjustment dial on the left, an octal connection plug on the right, and a wiring diagram printed on top.

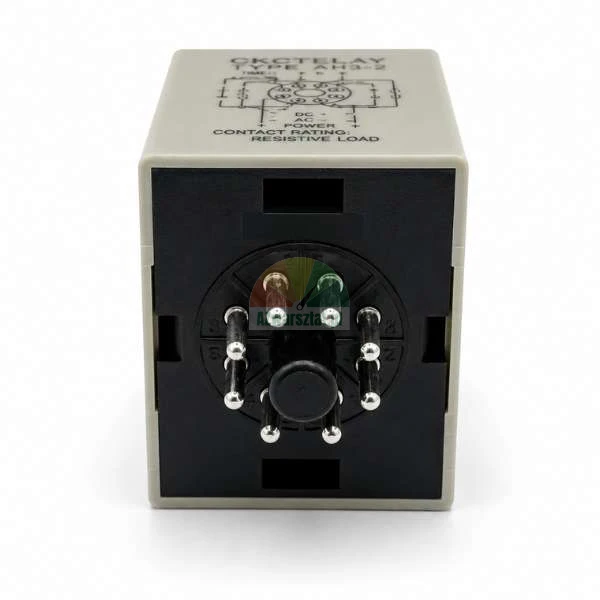

  • Bottom view of a CKC time relay type AH3-2 showing the 8-pin octal connector and the wiring diagram printed on the grey housing.

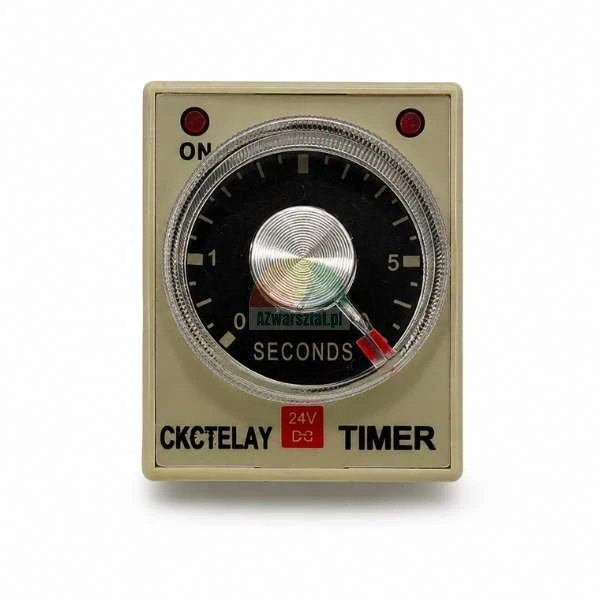

  • Analog time relay CKCTELAY TIMER 24V with a scale from 0 to 5 seconds, featuring a central adjustment knob and indicator LEDs.

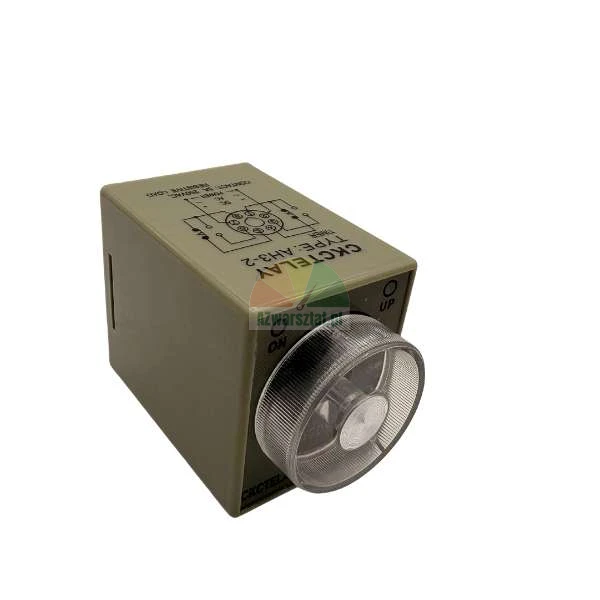

  • CKCTELAY AH3-2 time relay with a gray housing and transparent adjustment dial on a white background.
Go to Product feedback
Manufacturer: AZ (go to products)

Time relay AH3-2 24VDC / 6 sec

Secure payment
30 days to return
Fast shipping
Types of payment
with VAT without VAT
Price €23.37
incl. 23% VAT

Shipping costs are not included in the price.

pc.
Shipping time: 24 hours
Share
Ask about the product
Why us?
  • Only real product reviews.
  • Secure online payments.
  • Hassle-free returns within 14 days.
  • A reliable company - we have been on the market for many years.
Platby

AH3-2 24VDC / 6 sec or AH3-3 time relay

The AH3-2 precision time relay (by CKCTELAY) is a high-performance control system component designed for stable and continuous operation. Due to its performance, it is an ideal spare part for machines operating under harsh conditions, such as car jacks, tyre fitters and wheel balancers.

The use of this relay guarantees failure-free and accurate automatic processes in your workshop equipment. The component is equipped with a highly legible dial for time setting and two built-in LEDs (ON and UP) to indicate the current operating status.

Key technical data and dimensions:

  • Supply voltage: 24V DC
  • Time adjustment range: up to 6 seconds
  • Number of pins (plugs): 8 pins (round connector)
  • Width of body: 4 cm
  • Body length: 5.7 cm
  • Diameter of transparent dial (dial): 2.2 cm
  • Contact load: 250VAC (Resistive Load)

Top quality spare parts at azwarsztat.pl

There is a clear and permanent wiring diagram on the relay housing, which makes the process of diagnosis and replacement of the component by the installer as easy as possible. By shopping at azwarsztat.pl, you can be sure that you are choosing proven and reliable components which will restore full efficiency to the machines in your tyre service or mechanical workshop.

Product safety

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl
