20A main switch (49 mm x 49 mm)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-PRZY-0037
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
20A main switch – 49 × 49 mm

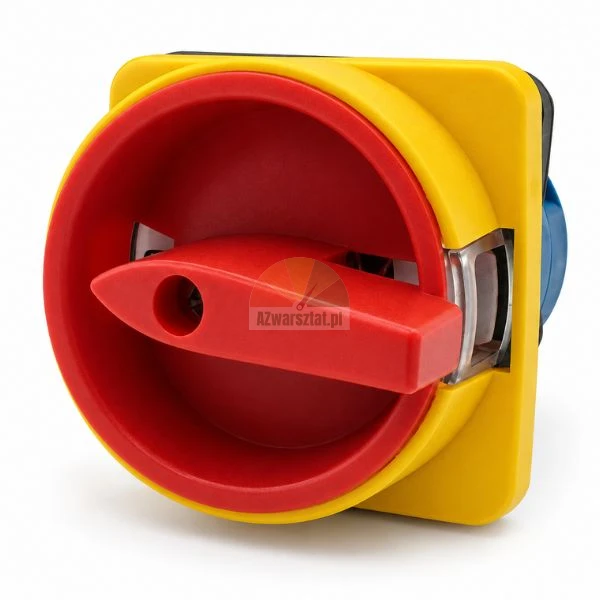

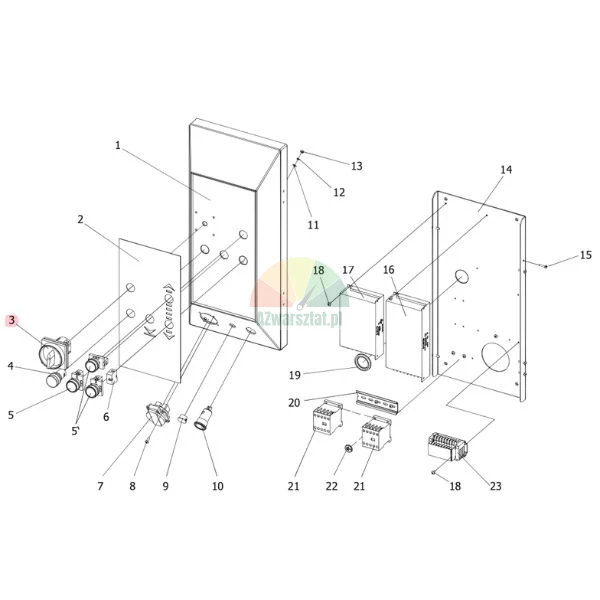

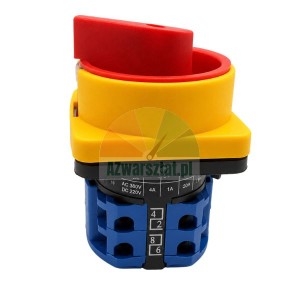

Main switch for switching the machine’s power supply on or off. It is a component of the control panel – the red knob is housed in a yellow cover, whilst the blue rear section contains the switch terminals.
Note when selecting: before ordering, compare the front panel dimensions and the layout and numbering of the terminals. The example shown features terminal pair markings 2–4 and 6–8. The appearance of the knob alone does not guarantee electrical compatibility with every 49 × 49 mm main switch.
Technical specifications
| Type | Main switch / rotary switch |
| Rated current | 20 A |

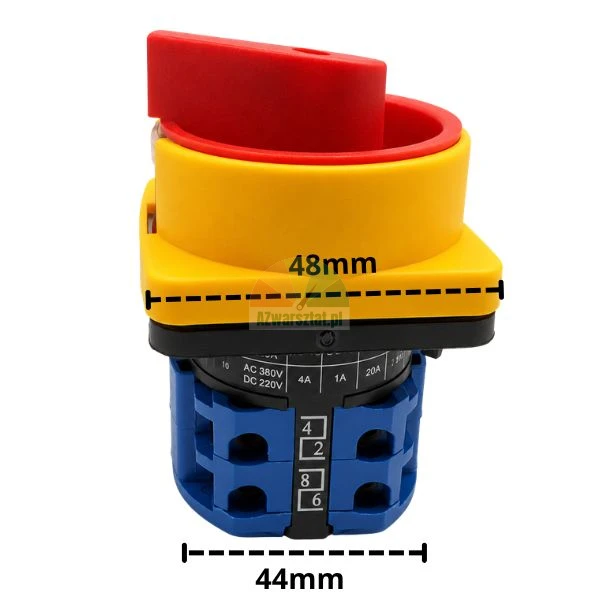

| Front panel dimensions | 49 × 49 mm; the dimensional drawing shows a front width of 48 mm |
| Rear width | Approximately 44 mm according to the dimensional drawing |

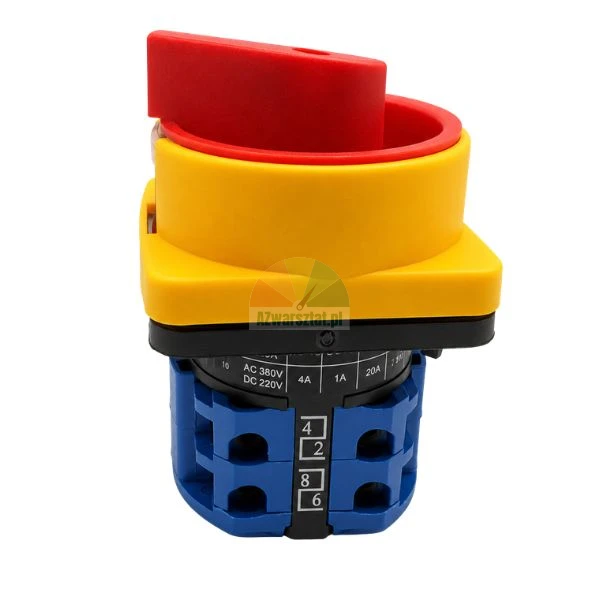

| Visible terminal numbering | 2–4 and 6–8 |

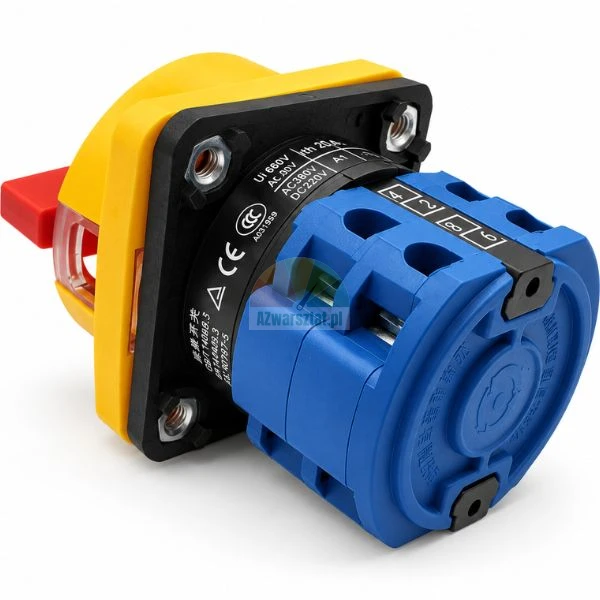

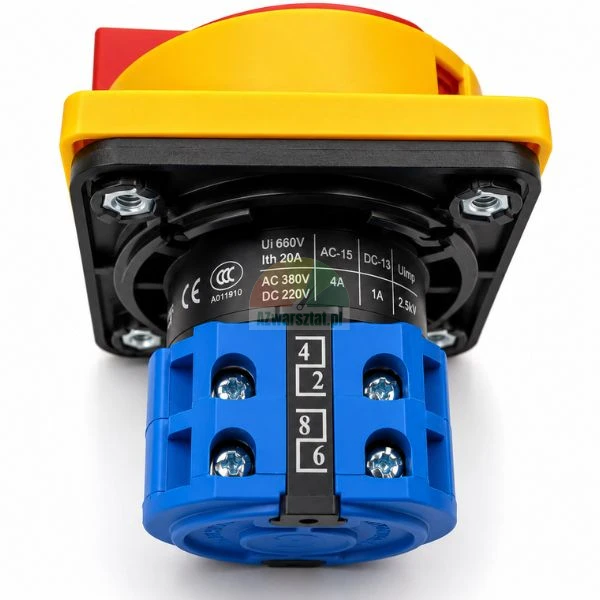

| Markings visible on the switch | AC 380 V, DC 220 V |
| Colour scheme | Red knob, yellow cover, blue terminal block body |
What to look out for during replacement
- Before dismantling, take a photograph of the wiring layout and use a multimeter to check which terminals are connected in each knob position. Do not rewire based solely on the colour of the wires.
- Compare the numbering of the new and removed switch. An identical front panel layout does not necessarily mean an identical contact arrangement or that the functions of the individual positions are the same.
- Check that the wires are not burnt at the terminals. A worn-out or overheating switch often also damages the wire ends, insulation and components located directly behind the panel.
- After reconnection, check that each circuit is live when the switch is on and disconnected when it is off. Simply checking that the machine starts up may not detect a contact with increased resistance.
- A 20 A current rating is a parameter of the switch, not an overload protection feature. Protection of the cables and motor must be ensured by appropriate safety measures incorporated into the machine’s installation.
Signs of switch wear
The first sign of a problem need not be a complete loss of power. In practice, a worn contact may cause intermittent power cuts, erratic control operation, momentary dimming of indicator lights, or an increase in the temperature of the cables and terminals during operation. Under motor loads, a loose or burnt-out contact may also cause a voltage drop at start-up and accelerate the wear of the contactor or other components in the power supply circuit.
Do not wait for complete failure: if, after prolonged operation, the circuit breaker or the wires at its terminals are noticeably warmer than the rest of the panel, check the condition of the contacts, the tightness of the wiring and the circuit load. Simply replacing the knob without addressing the cause of the overheating may result in the new component becoming damaged again.
