30mm composite mounting bracket
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-STOP-0081
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

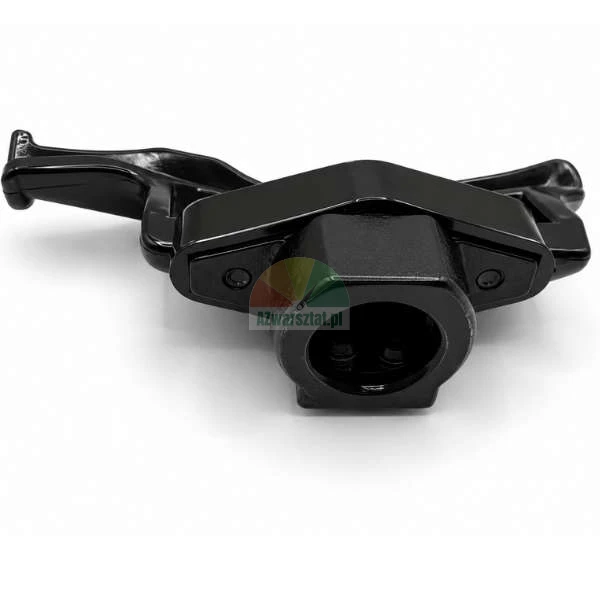

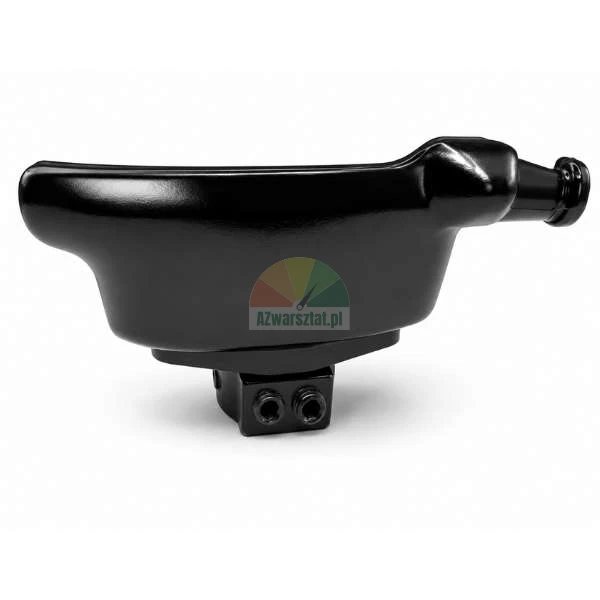

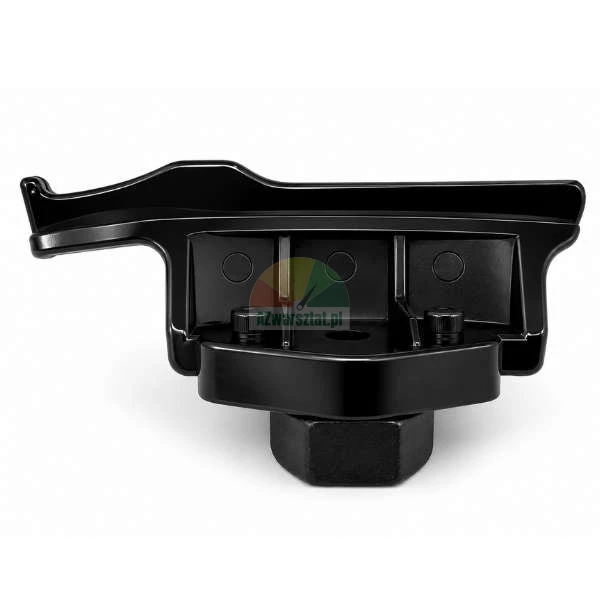

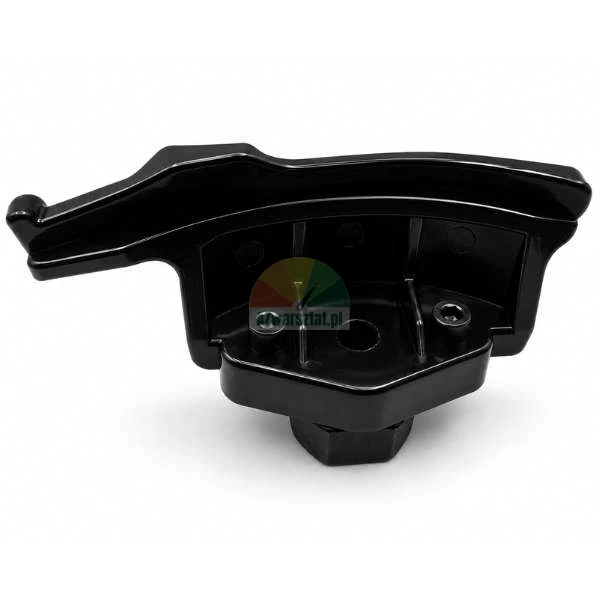

30 mm composite mounting head
A high-quality composite mounting head designed for professional tyre changers. It is an essential piece of equipment for any modern tyre workshop that prioritises fast and safe wheel handling. Thanks to the use of a very strong plastic, the head eliminates the risk of scratches on the rim flange during the tyre mounting and demounting process.
Complete safety for alloy wheels: Made from durable composite material, the mounting head directly protects painted and polished light alloy wheels. No need for additional, abrasive plastic covers!
Technical specifications and construction

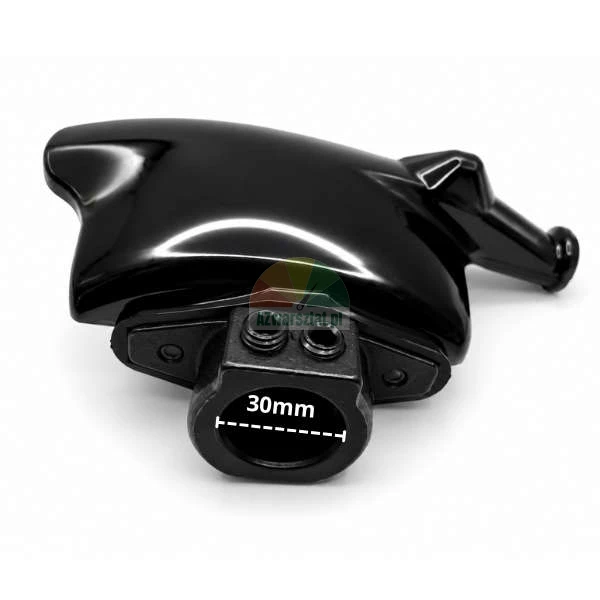

- Mounting hole diameter: 30 mm – a popular and universal size, perfectly suited to the spindles of many tyre changer models available on the market.
- Material: Stress-resistant composite (nylon). Withstands the significant forces encountered when working with rigid run-flat tyres or low-profile tyres.
- Mounting system: The head is mounted on the machine spindle using two sturdy Allen screws, ensuring high stability and no play.
- Contoured profile: The anatomical shape of the head facilitates the insertion of the mounting/demounting lever and ensures the tyre bead slides smoothly.
Trust the quality from AZ Workshop
At our online shop, azworkshop.eu, we fully understand the needs of the workshop industry. We supply carefully selected spare parts for vehicle lifts, tyre changers and wheel balancers. By choosing our 30 mm composite mounting head, you are investing in the efficiency of your work, reducing the risk of damage to the customer’s property and ensuring the trouble-free operation of your machinery.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
