Actuator mounting flange with eye (11 cm) - 100 mm actuator
High quality mounting flange (cover) for pneumatic actuator with eye. It is an absolutely essential spare part for professional workshop machines such as tyre changers, wheel balancers and vehicle lifts. It ensures a tight and secure closure of the cylinder and stable clamping of the working elements.
A guarantee of precision and reliability: The flange is cast from a robust alloy that is resistant to the high operating pressures found in pneumatic systems. This ensures long and trouble-free operation even in the most demanding tyre workshops.
Exact dimensions and technical parameters:

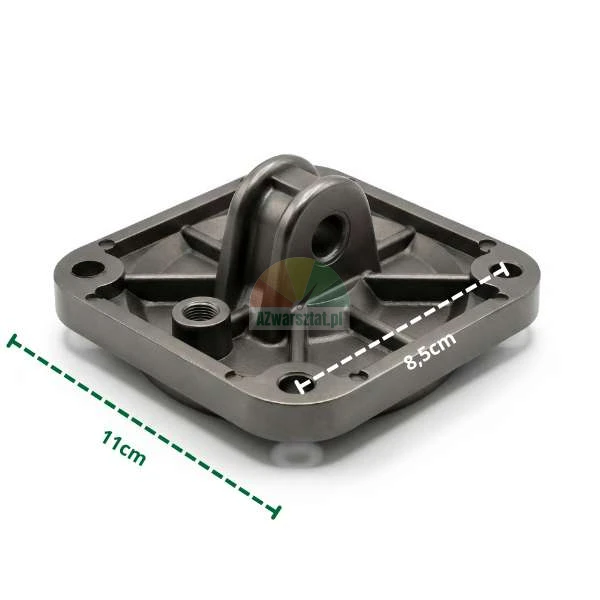

- Side length (outer dimension): 11 cm
- Mounting hole spacing: 8.5 cm (measured from centre to centre of hole)

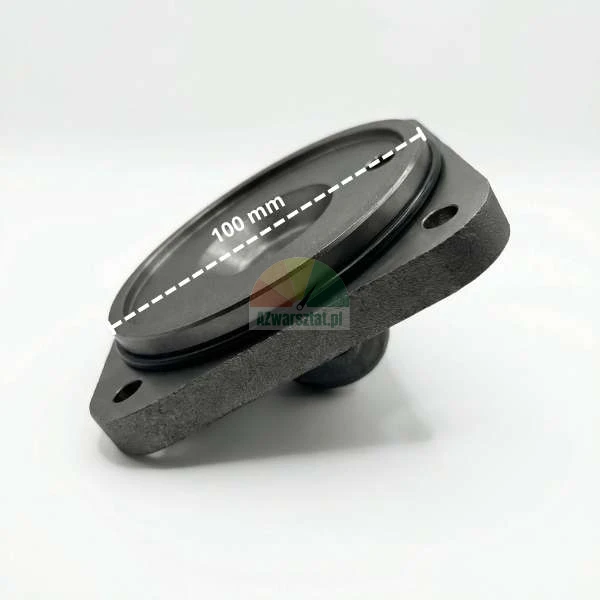

- Working diameter under actuator (internal): 100 mm

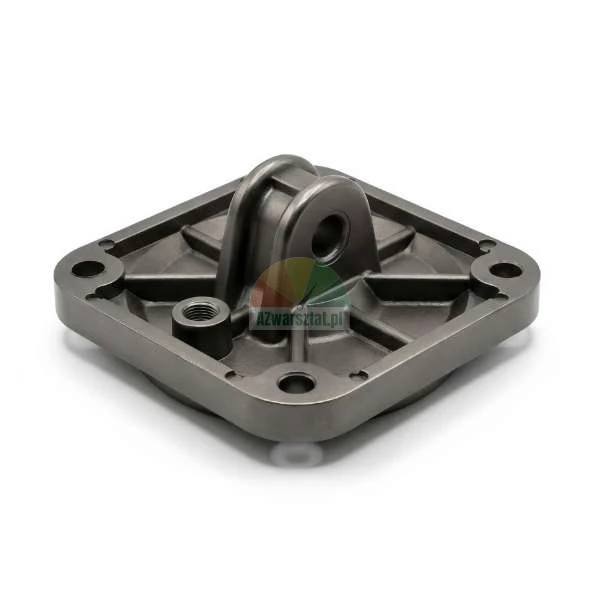

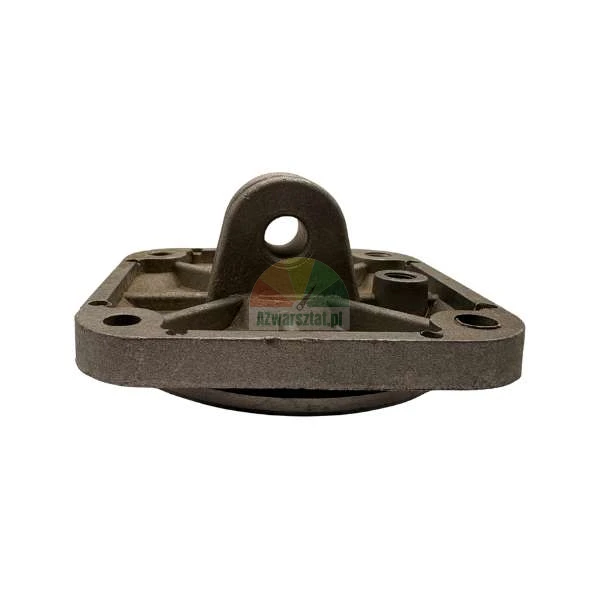

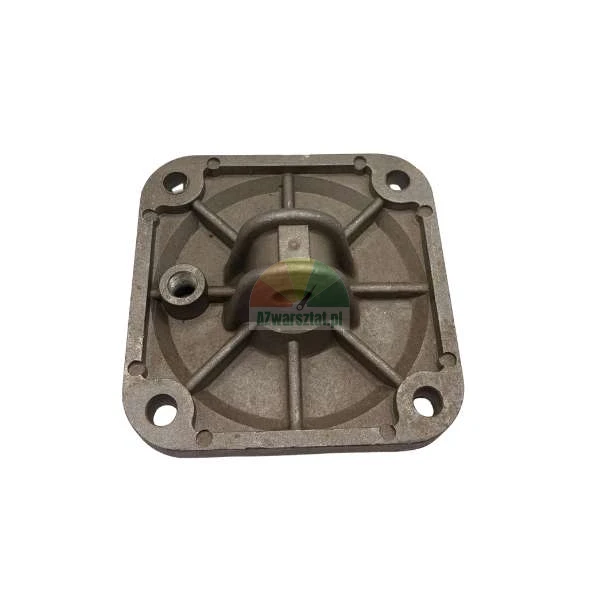

- Main attachment type: Robust central eye for pin connections
- Pneumatic connection: Fitted with a threaded supply hole visible on the body

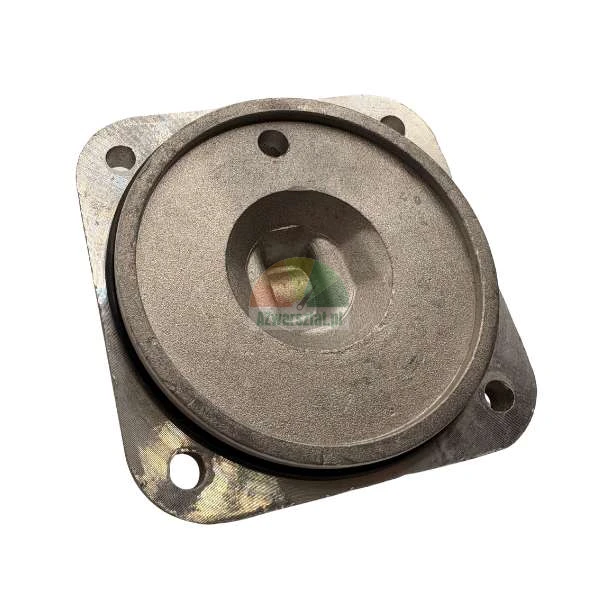

- Sealing: Factory-fitted O-ring type seal on the working flange
Why choose parts from azworkshop.eu?
As specialists in the workshop equipment industry, we know exactly how important details are. The actuator cover we offer features a factory-integrated O-ring, allowing immediate and trouble-free installation of the part straight out of the package. The perfect fit eliminates the risk of blowouts and leaks.
Trust the experts. Our azworkshop.eu shop is your reliable source for high-quality spare parts for workshop equipment. With us, you can repair your lifting, balancing or mounting machine quickly and professionally!
