Air distributor (bouncer pedal) 3x8mm
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-ROZD-0018
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

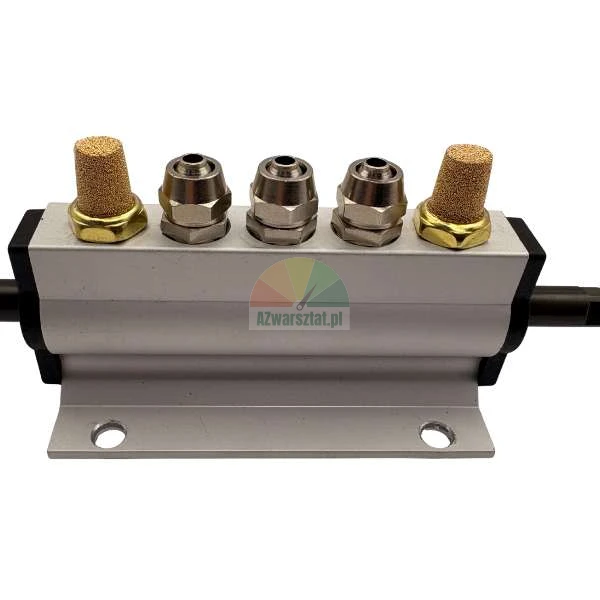

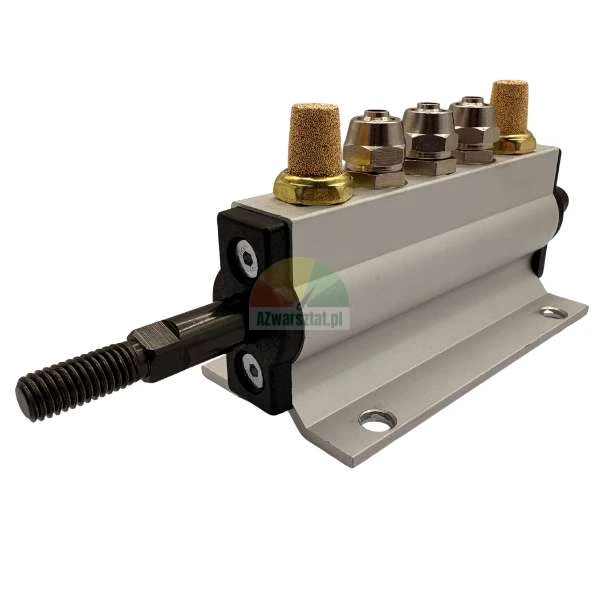

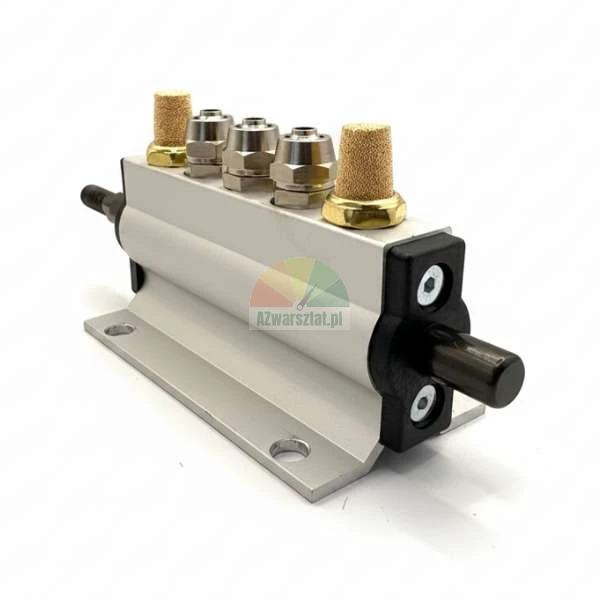

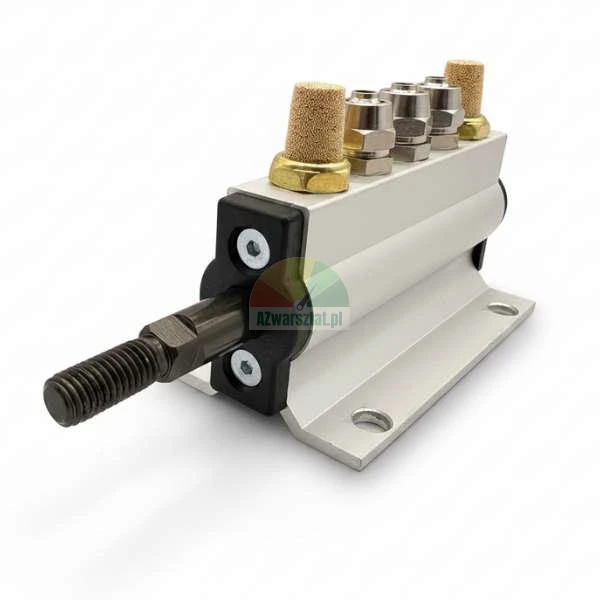

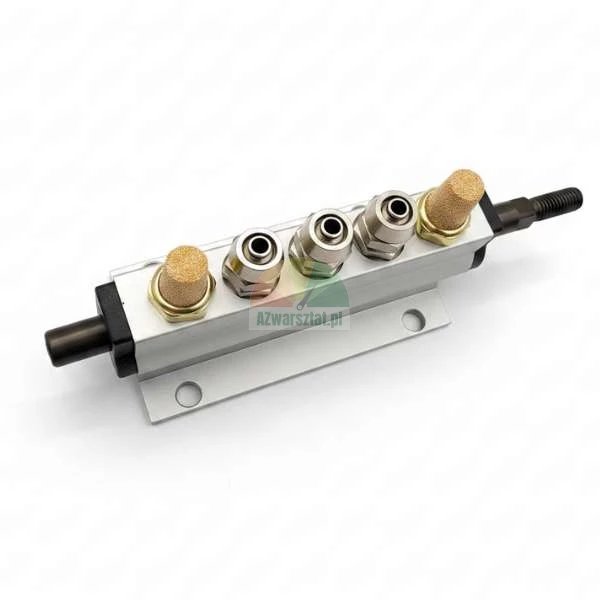

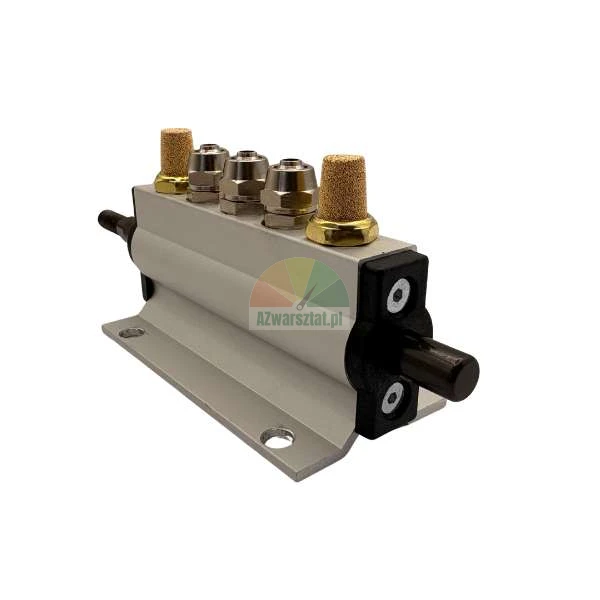

Air manifold (bead breaker pedal valve) 3x8mm
A high-performance pneumatic distributor designed to control the bead breaker actuator on tyre changers. It is an absolutely indispensable component of the pneumatic system of any professional tyre changer, responsible for reliable separation of the tyre bead from the rim.
The robust aluminium and brass construction guarantees a long service life, excellent leak-tightness and resistance to high operating pressures in the workshop.
Technical highlights

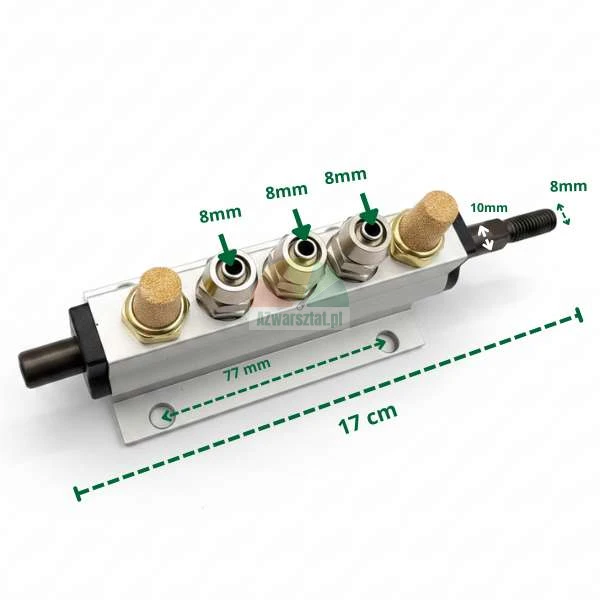

The valve has been precisely measured to make it as easy as possible for you to select parts. The dimensions shown below correspond directly to the diagram in our documentation:
- Hose connections: 3x 8 mm (quick-connect fittings)
- Overall length of the manifold: 17 cm
- Mounting hole spacing: 77 mm
- Stem diameter: 10 mm
- Thread diameter on stem: 8 mm
- Noise suppressors: 2 brass filters included
Replacing a worn distributor is the fastest way to restore full power and smooth operation of the bead breaker pedal. The set is assembled and ready for immediate installation!
Application and compatibility
Thanks to its universal parameters, this valve fits a wide range of tyre changers available on the market. Trust the workshop equipment specialists - in the azworkshop.eu shop we deliver only selected and tested spare parts for vehicle lifts, tyre changers and wheel balancers. We guarantee that you choose components which will ensure safe and uninterrupted operation of your workshop.
