Air distributor (bouncer pedal)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-ROZD-0019
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

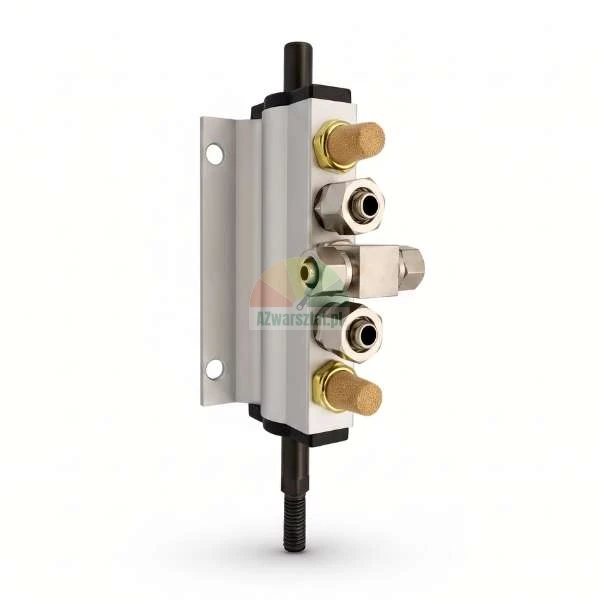

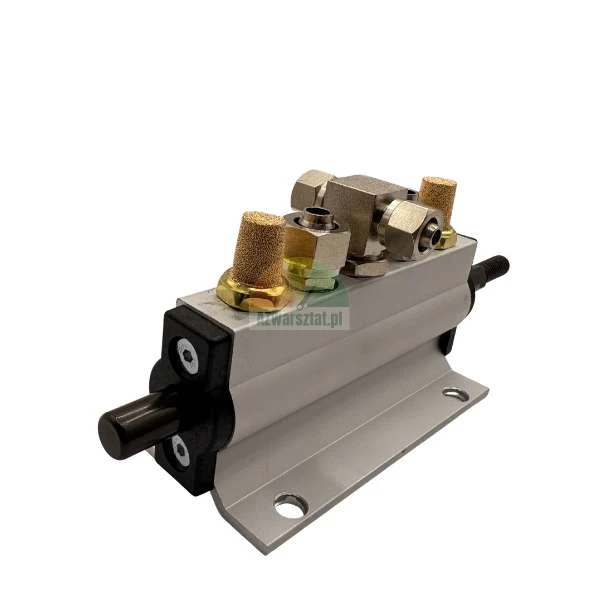

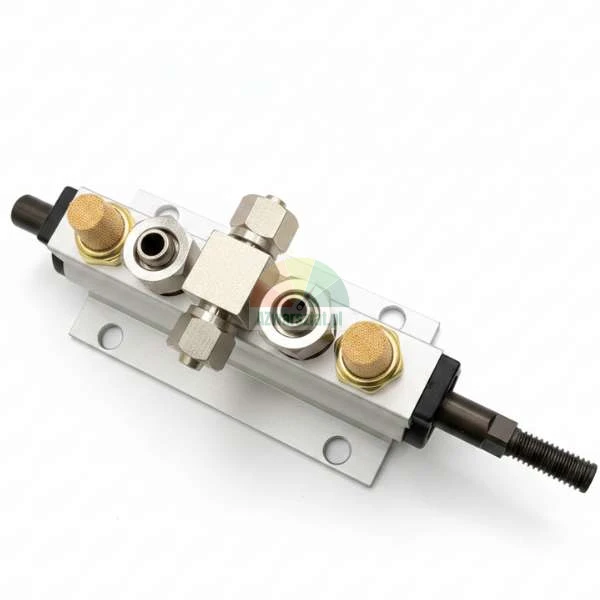

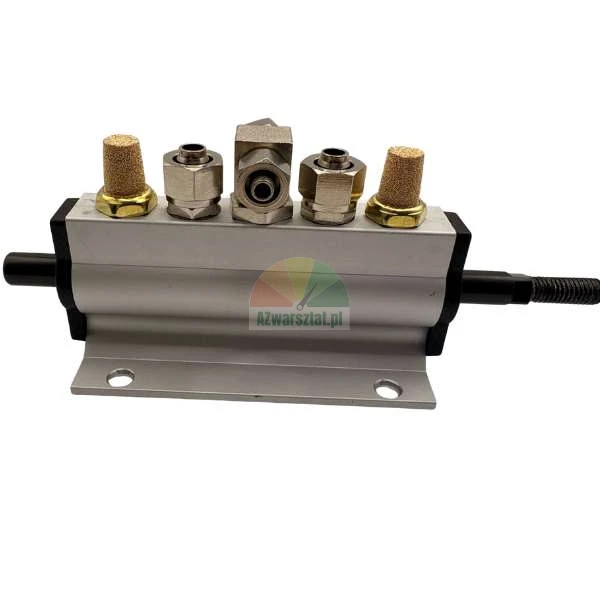

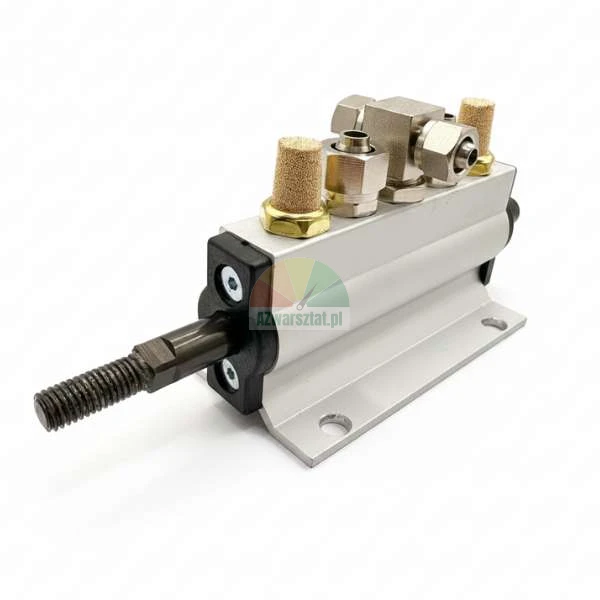

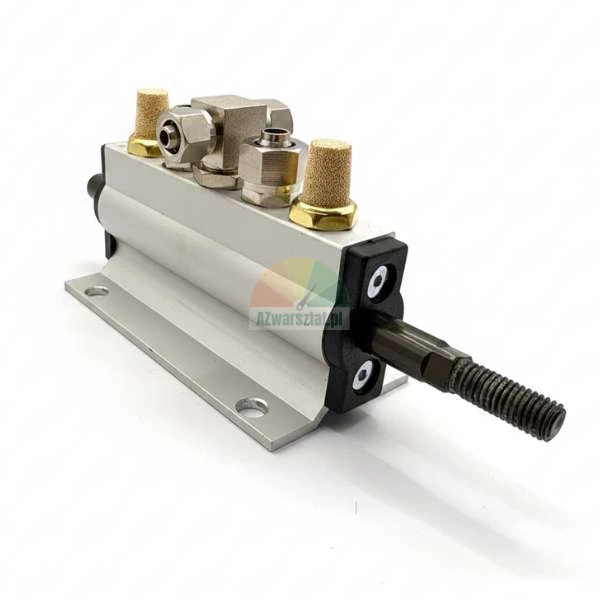

Air control valve for tyre changers (foot-operated pedal valve)
High-quality pneumatic air control valve (pedal valve), designed to control the operation of the bead breaker on most common tyre changers. It is responsible for the precise control of the compressed air, ensuring trouble-free operation of the working cylinder. It is a key component of the pneumatic system, which guarantees smooth operation during professional tyre service.
The robust body made of durable aluminium makes the valve resistant to corrosion and mechanical damage, ensuring excellent sealing even under very intensive use in harsh workshop conditions.

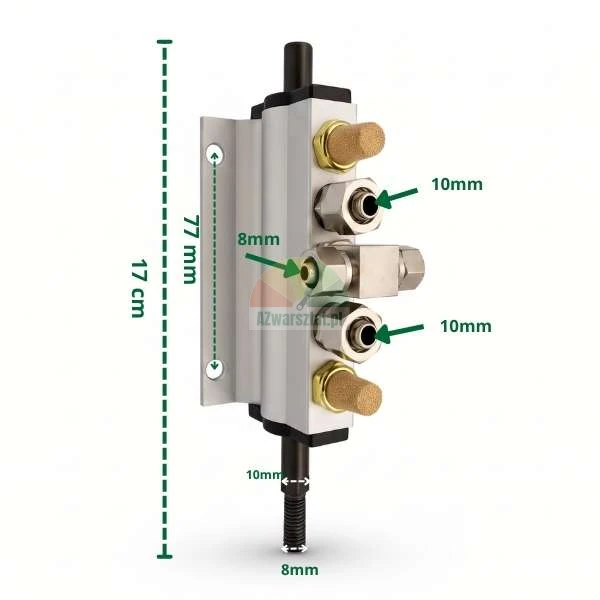

Dimensions and technical specifications:
Before purchasing, we recommend comparing the dimensions of the part carefully to be 100% sure that it will fit your machine:
- Overall length: 17 cm
- Mounting hole spacing: 77 mm
- Stem (piston rod) diameter: 10 mm
- Thread diameter on stem: 8 mm
- Diameter of pneumatic connectors (ends): 10 mm
- Diameter of pneumatic connector (centre): 8 mm
Factory-fitted copper silencers are included. These effectively reduce the noise of the air escaping from the system, which significantly increases acoustic comfort.
Reliable parts from azworkshop.eu
The control valve we offer stands out for its versatility — it fits many leading brands of tyre changers available on the market. By choosing proven and precisely made components, you avoid costly downtime and extend the service life of your equipment.
