Complete vertical/horizontal actuator (piston) TYPE G
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-SILO-0020
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

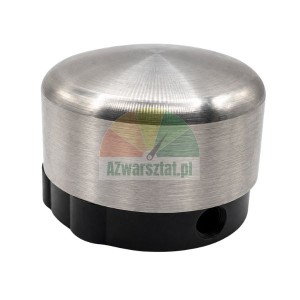

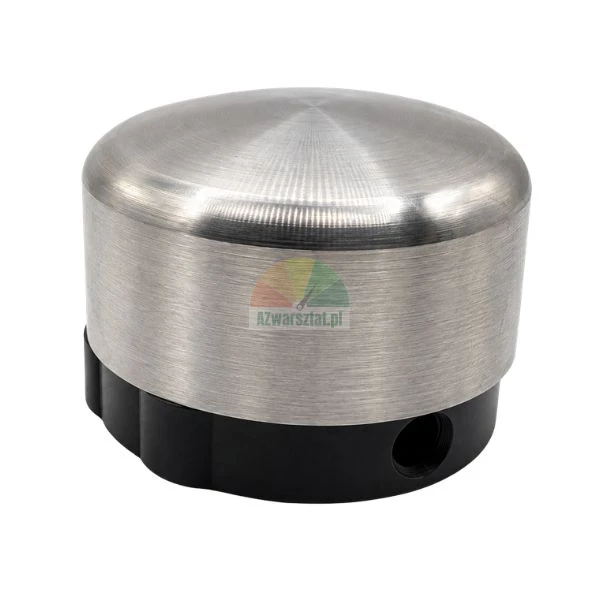

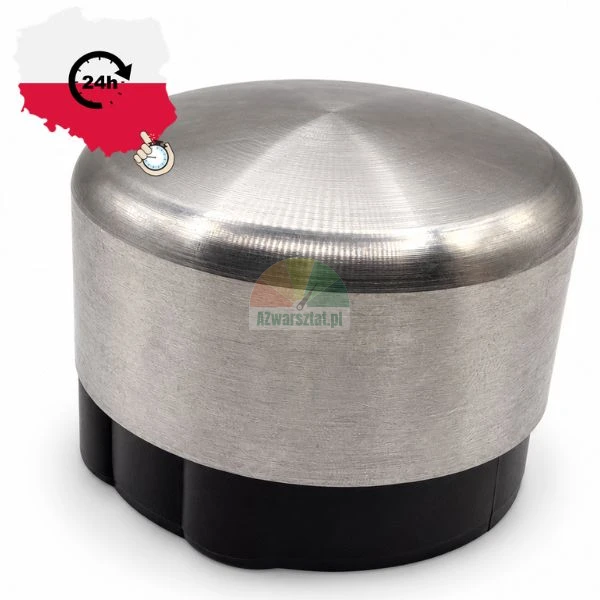

Complete vertical/horizontal ‘mushroom’ actuator, TYPE G
The complete ‘mushroom-type’ actuator is an actuating component of the pneumatic locking mechanism used in tyre changers. Depending on the machine’s design, it operates in either a vertical or horizontal configuration, moving and locking the associated component upon the supply of compressed air.

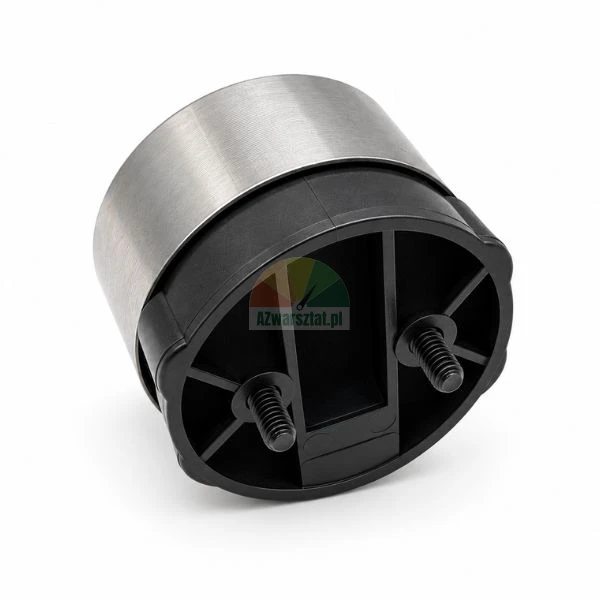

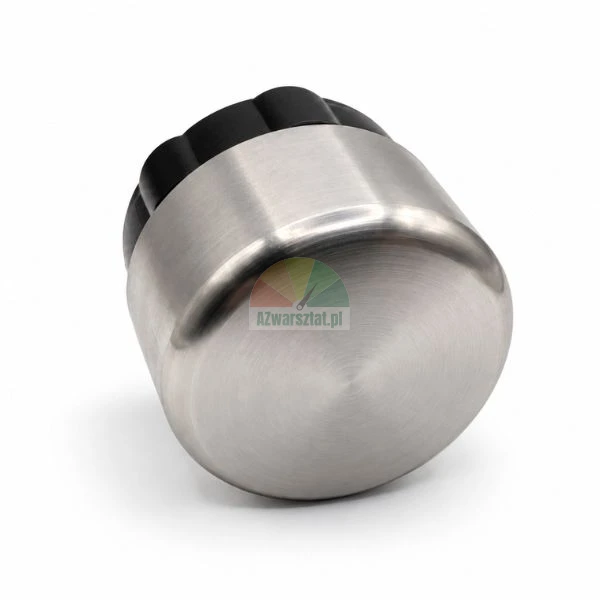

The design consists of a metal working dome and a black plastic base. The circular surface of the dome bears the load, whilst the base guides the component and is used to mount the actuator in the machine. The product is a complete assembly, not just the dome or the base on its own.
Before ordering, check the diameter, height, spacing of the fixing bolts and the position of the pneumatic connection. With actuators of this type, even a slight difference in the fixing spacing may prevent correct mounting within the mounting bracket.
Technical data

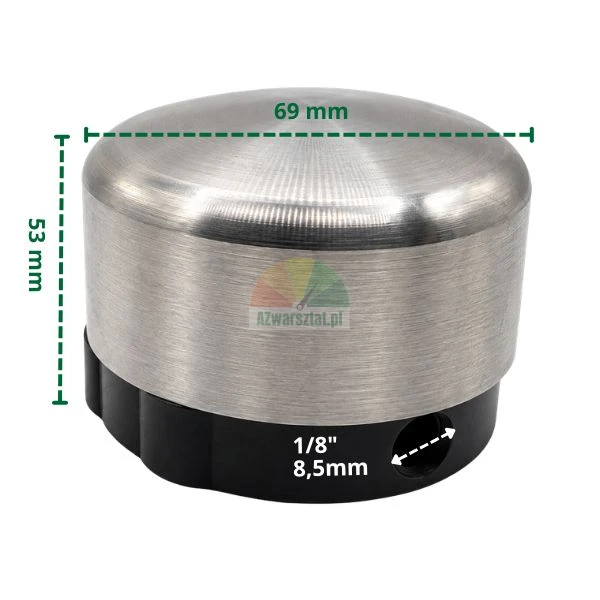

| Type | G – complete vertical/horizontal ‘mushroom’ type actuator |
| Outer diameter | 69 mm |
| Overall height | 53 mm |
| Pneumatic connection | 1/8", dimensional marking in the photo: 8.5 mm |

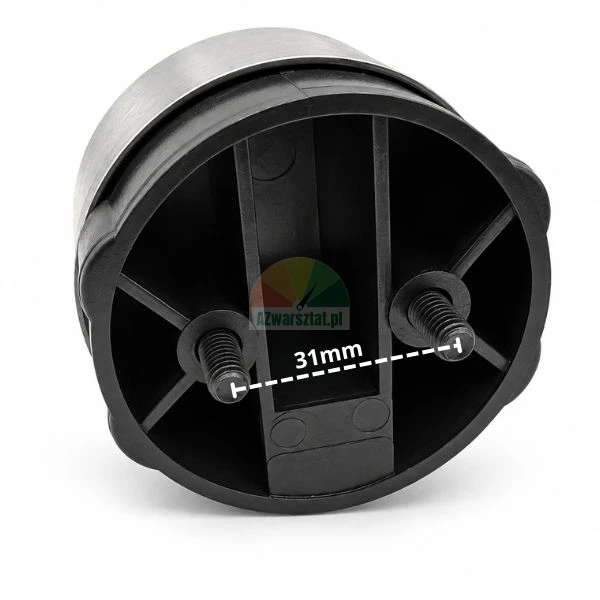

| Spacing between fixing screws | 31 mm |
| Construction | metal working dome, black plastic base |
Signs of wear or leakage
- the lock responds with a delay or requires the control pedal to be held down for longer,
- the locked component does not stop in the same position after each cycle,
- the actuator moves in jerks rather than smoothly, particularly at low system pressure,
- after the control is cut off, a continuous flow of air can be heard at the connection or base,
- the dome has noticeable play relative to the base, and the clamping mechanism loses positional repeatability.
A worn or leaky actuator slows down the operation of the assembly machine. A drop in clamping force may cause the clamped assembly to shift during operation, whilst repeated ramming to the end of the stroke increases the load on the guides, screws and fasteners.
Installation and operating instructions
- Before installation, check that the position of the connector aligns with the route of the pneumatic hose within the machine. Rotating the actuator from its original position may cause the hose to kink or collide with a moving part.
- Tighten the bolts with care. The base is made of plastic, so excessive torque may damage the mounting sockets or deform the base.
- Do not compensate for leaks by increasing the supply pressure beyond the value specified for the machine. Excessive pressure increases the load on the seals and may accelerate damage to the actuator and locking components.
- If, after replacement, the actuator continues to operate unevenly, the cause may be contamination or resistance in the component guided by the locking mechanism, rather than the new actuator itself.
- When selecting a replacement, check all dimensions at the same time: the diameter of the dome alone is not sufficient to confirm compatibility.
Select the product based on the dimensions and design of the fitted component. The product specifications do not include a specific list of machine models, so before purchasing, compare the actuator with the part fitted in the machine.
