Pedal air distributor 4x8mm
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-ROZD-0020
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

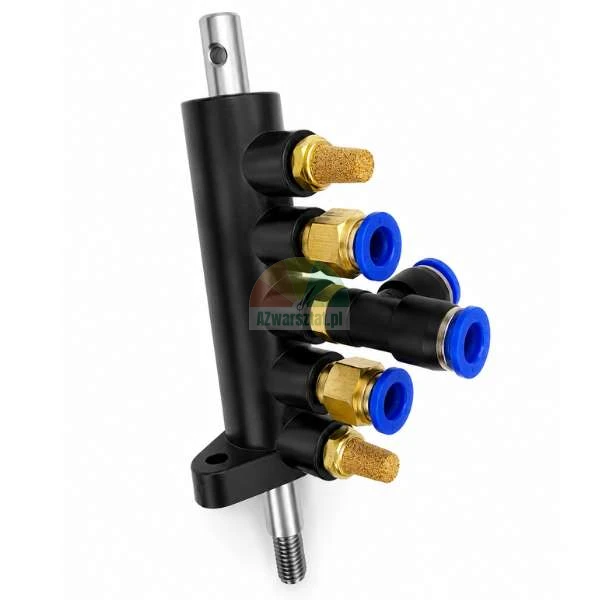

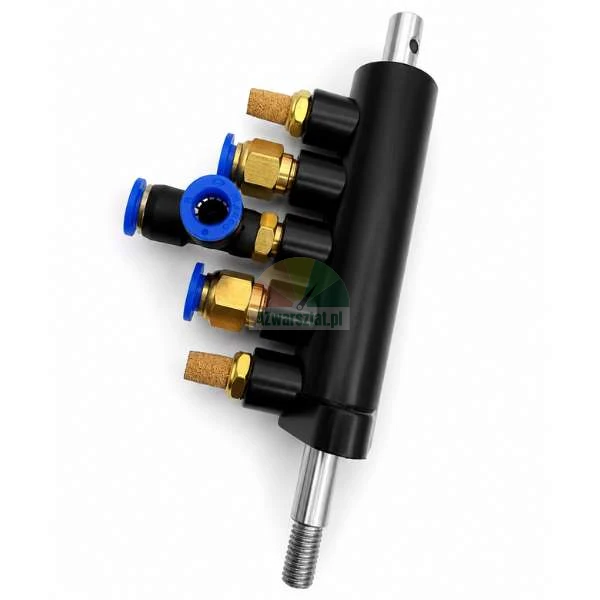

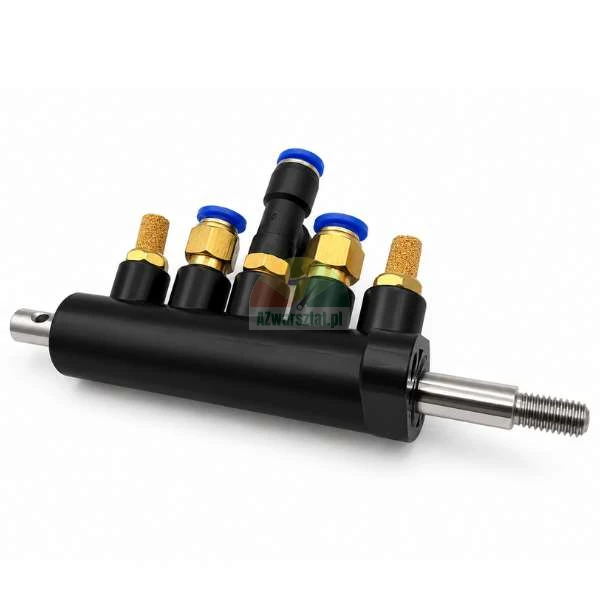

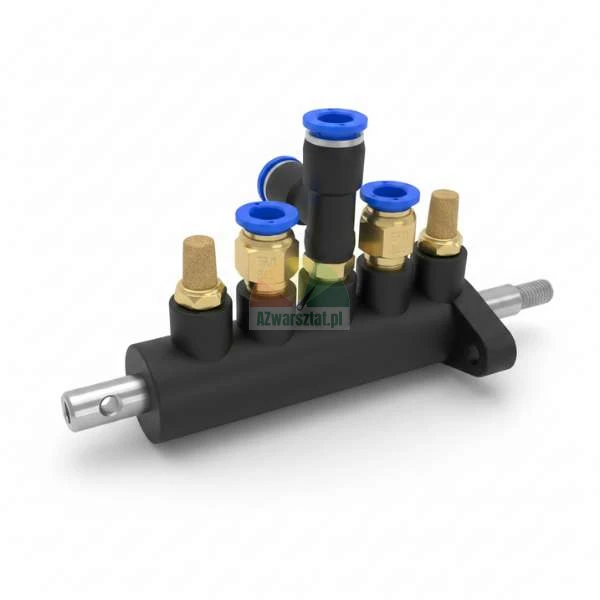

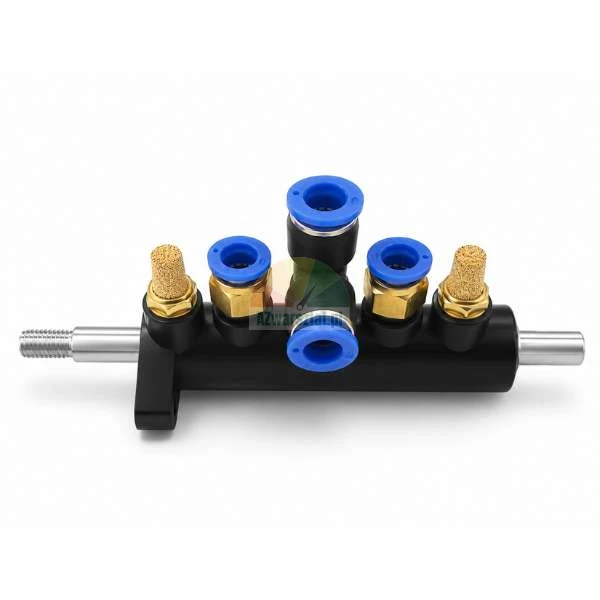

4x8mm Pedal Air Manifold for Tyre Changers
Ensure trouble-free operation of your tyre changer with quality replacement parts from AZ Workshop. The presented air manifold (pedal valve) is a key component of the pneumatic system, responsible for precise control of the actuators in tyre changers.
Reliability and long service life: the robust body, precision steel stem and reinforced seals provide excellent responsiveness of the control pedal and prevent air leakage, even during the most intensive tyre changing season.
The valve on offer is factory-equipped with four plug-in pneumatic quick-connectors suitable for hoses (tubes) with an external diameter of 8 mm. Sintered brass silencers are fitted on the two outermost connections to effectively reduce the sound of air escaping from the system, significantly improving working comfort and safety.

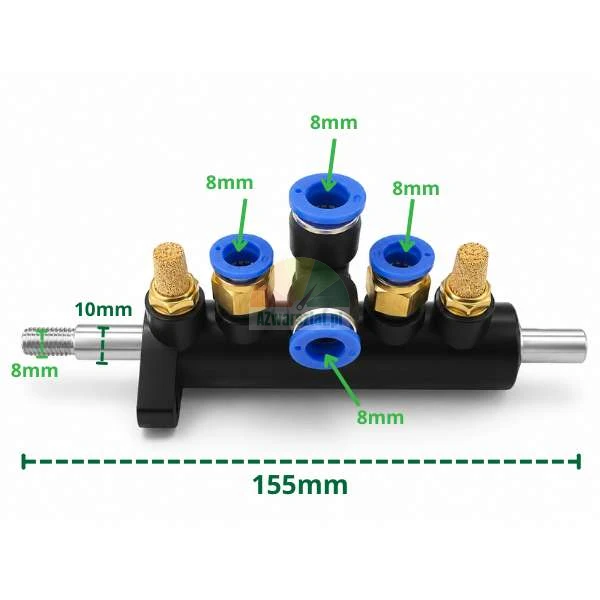

Technical data and dimensions:
- Overall length: 155 mm
- Diameter of pneumatic connections (hoses): 4 x 8 mm
- Mandrel working diameter: 10 mm
- Thread size on stem: 8 mm
- Accessories: 2x brass silencer
Thanks to its universal parameters, the manifold fits the majority of popular tyre changer models on the market. Choose proven solutions and order reliable spare parts for your workshop equipment at azworkshop.eu!
