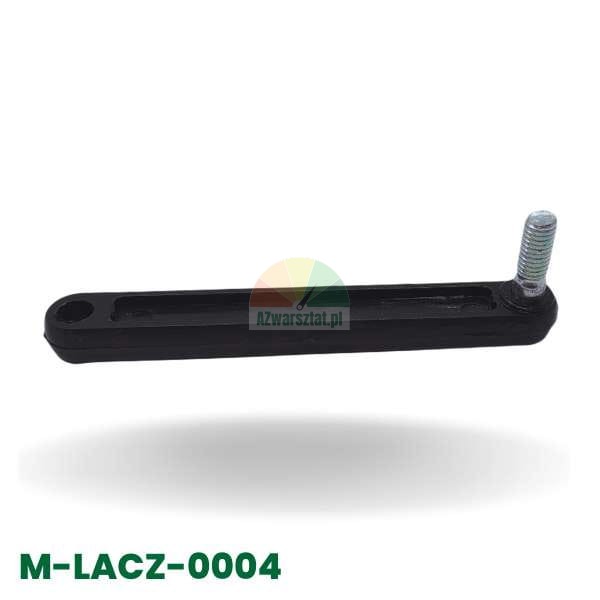

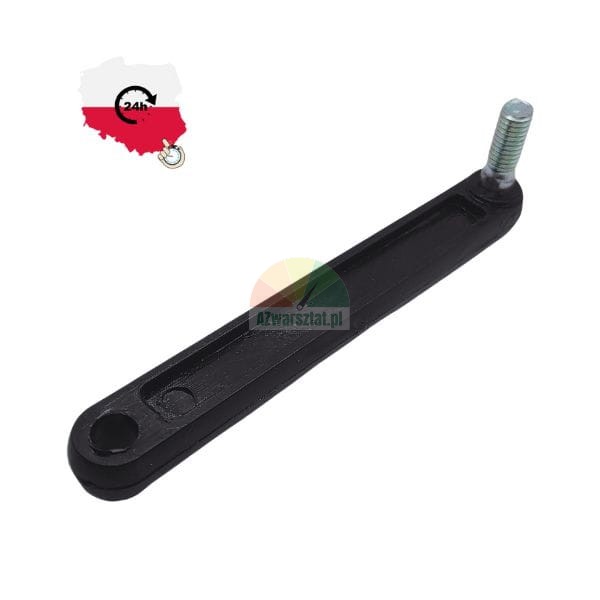

Pedal connector - professional spare part for wheel assemblers

High-quality pedal connector made of durable plastic, specially designed for car wheel assemblers. This component is the key link in the control mechanism of the machine functions.

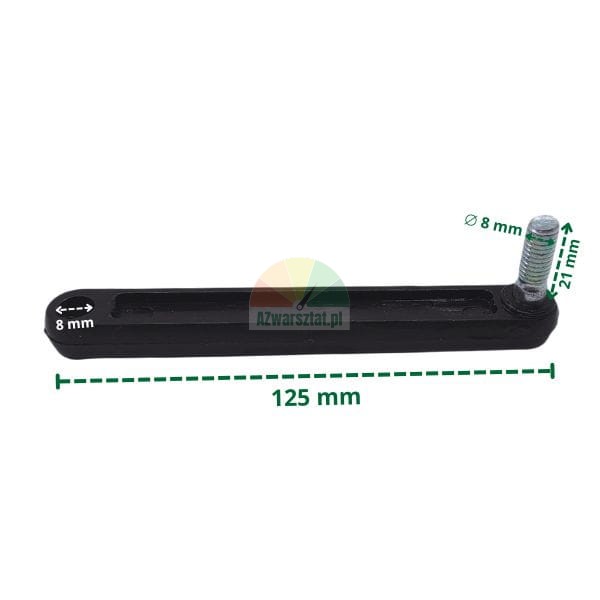

Technical specifications

Overall length: 125 mm
Pin diameter: 8 mm
Shank height: 21 mm
Base height: 10 mm
Internal construction: reinforced grating

Product advantages

Durability

The special trussed construction inside the element ensures excellent resistance to deformation and long service life, even under heavy use.

Precision in operation

The precisely profiled shape and retained technical dimensions guarantee smooth operation of the pedal mechanism, ensuring comfortable operation of the assembly.

Universal application

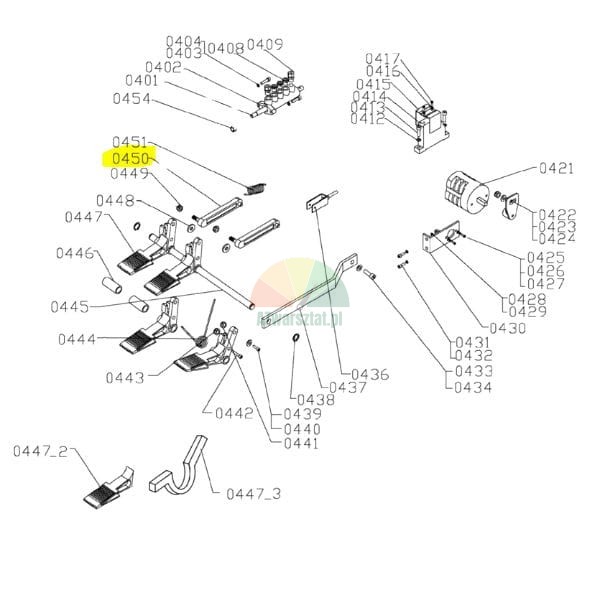

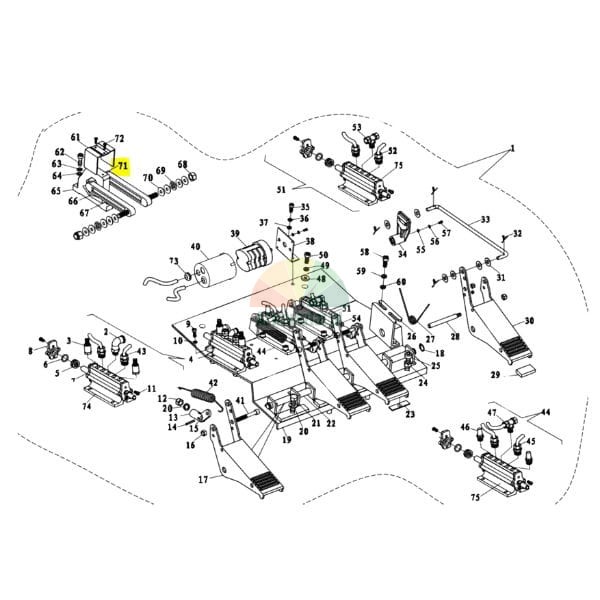

The connecting rod is compatible with the majority of popular passenger wheel assembly models on the market. The component can be easily identified on the technical diagrams of the machine.

Easy to fit

The design of the coupling enables quick and easy replacement of the worn part, minimising workshop downtime.

The product is an indispensable part of the fitter's control system, responsible for the precise transfer of movement from the pedal to the fitter's operating mechanism.
