Piston rod for bouncer gym 40 cm
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-TLOC-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

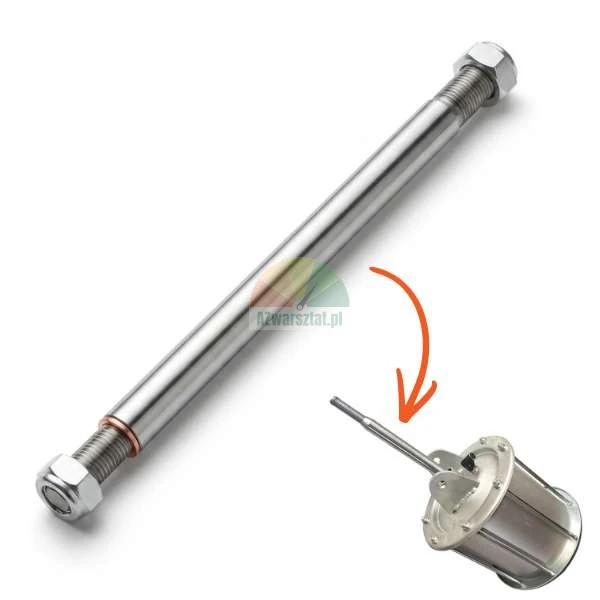

Piston rod for bead breaker cylinder (impactor) 40 cm
Are you looking for reliable and durable parts for your tyre changers? We present the highest quality piston rod for the bead breaker cylinder. It is an indispensable component of the pneumatic system of every professional tyre changer, responsible for the correct and smooth operation of the bead breaker blade during separation of the tyre bead from the rim.
Robust workmanship: Our piston rods are manufactured from hardened, selected steel. This guarantees exceptional resistance to bending, mechanical damage and high operating pressures, resulting in a long service life even in the most heavily used workshops.
Detailed dimensions and technical data
To ensure that the part fits your machine perfectly, please refer to the dimensions below (according to the enclosed technical documentation):

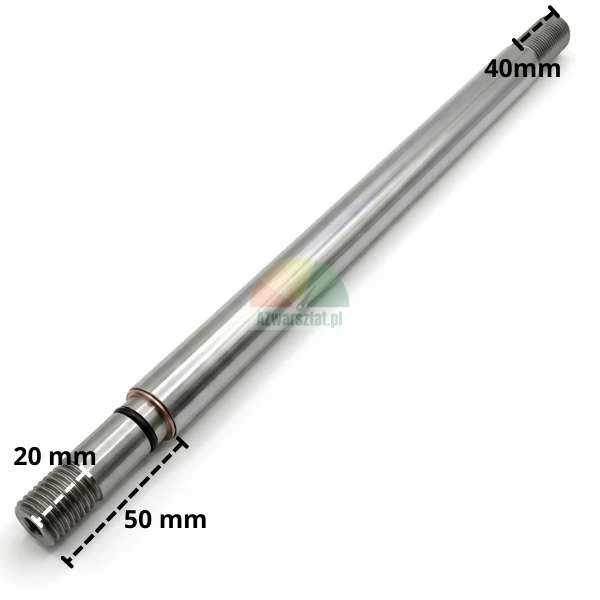

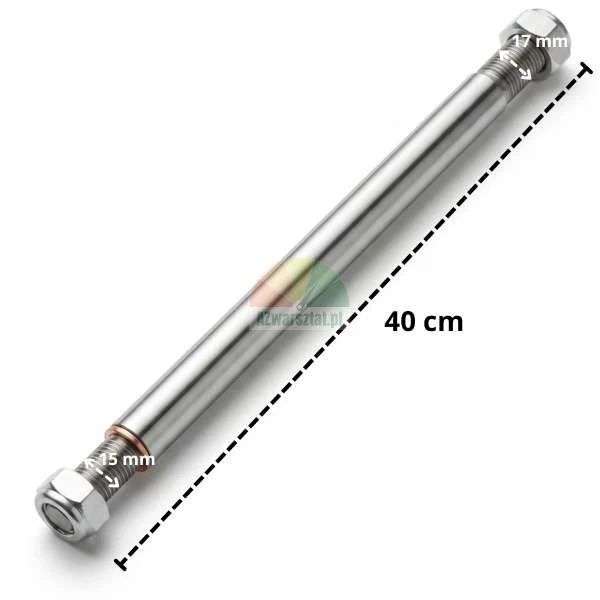

- Overall length: 40 cm (400 mm)
- Diameter of fixing threads at the ends: 15 mm and 17 mm
- Thread working diameter: 20 mm
- Lengths of threaded sections: 40 mm and 50 mm
Application
Thanks to its universal dimensions, the piston rod fits the majority of common cylinders used in modern tyre changers. The precision threads ensure a secure fit and perfect sealing of the entire pneumatic system.
When you order from the azworkshop.eu shop, you choose faultless operation of your vehicle lifts, tyre changers and wheel balancers. We guarantee professional advice and fast shipment of parts straight to your workshop!
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
