Piston rod for bouncer gym 42 cm

Secure payment

30 days to return

Fast shipping

€44.42

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

Piston rod for deflector cylinder 42 cm

High quality piston rod for the rebounder actuator, designed for professional tyre assemblers. It is a key pneumatic repair component, which is responsible for the smooth and faultless operation of the arm that deflects the tyre bead from the rim edge. The part has been manufactured from high-grade, damage- and deformation-resistant steel, which is standard for the AZ Workshop shop range.

Robustness and performance: Replacing the worn piston rod with a new part restores the full performance and strength of the actuator, guaranteeing reliable machine operation even during intensive handling of rigid run-flat tyres in your vulcanising workshop.

Detailed technical specifications:

Thanks to its precision design, the piston rod ensures a perfect fit. Below are the exact dimensions as read from the technical specifications to facilitate the correct selection of parts:

Overall length: 42 cm (420 mm)
Diameter of both external threads: 17 mm

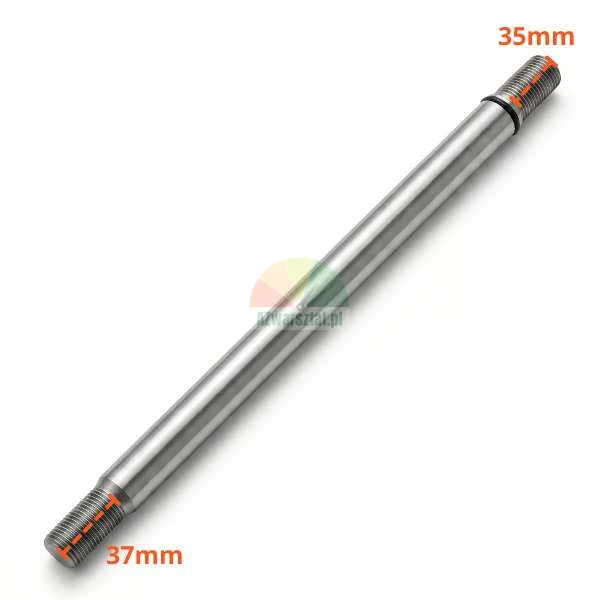

Length of first thread: 37 mm
Length of second thread: 35 mm (side fitted with groove for sealing o-ring)

Before purchasing, we recommend that you carefully verify the overall length as well as the diameter and pitch of the threads on the component currently fitted. This guarantees 100% compatibility with your device.

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
