Plastic cover for mounting feet TYPE B
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-STOP-0017
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Tyre changer mounting head protector
This is a precision-made protective element designed for professional tyre fitters.
Technical specifications
- Overall length: 40 mm
- Top width: 20 mm
- Base height: 15 mm
- Inner hole diameter: 6 mm
- Width of keyway opening: 3 mm
Product features
Design
Made from high quality polymer plastic in a distinctive yellow colour for excellent visibility during operation. The component features increased resistance to abrasion and deformation.
Functionality
The protector effectively protects the rim from scratches during the tyre demounting and mounting process. The specially profiled shape ensures optimum adhesion to the work surface.
Mounting

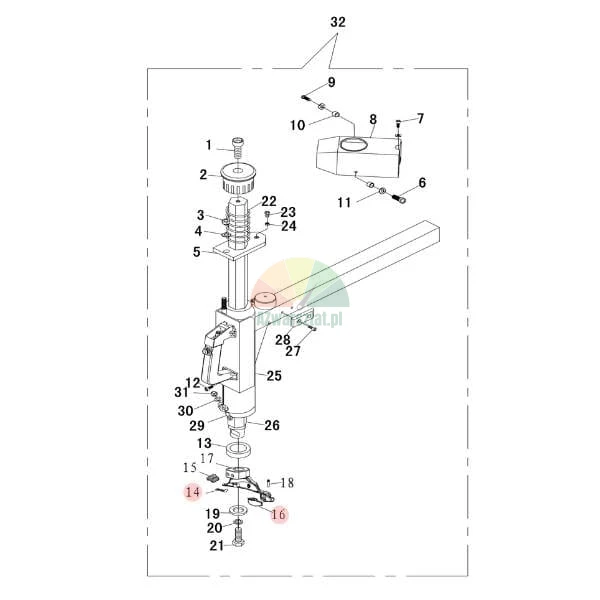

The simple mounting system with a precise 6 mm mounting hole guarantees a stable fit on the mounting head. The item appears as position 16 in the mounting diagram.
Durability
The material is highly resistant to workshop chemicals and changing weather conditions. The design ensures long-term use without any loss of protective properties.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
