Plastic cover for a tamper (yellow – contoured)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-LYCH-0009
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

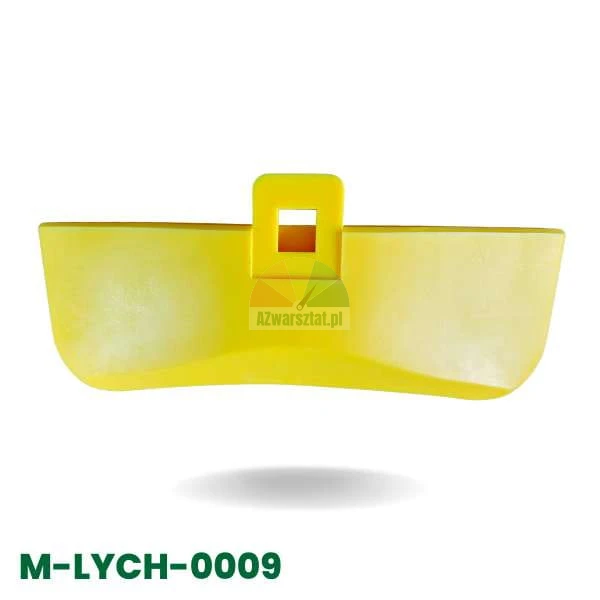

Plastic cover for mounting/demounting head (yellow – contoured)
This high-quality yellow plastic cover for the mounting/demounting head is an essential piece of equipment for any professional tyre fitting workshop. Designed specifically for the arms of tyre changers, it is intended to provide maximum protection for the rim edges during tyre demounting.
The use of protective covers is an absolute must when working with alloy rims. With this cover, you effectively eliminate the risk of costly scratches, which builds trust and satisfaction among your customers.

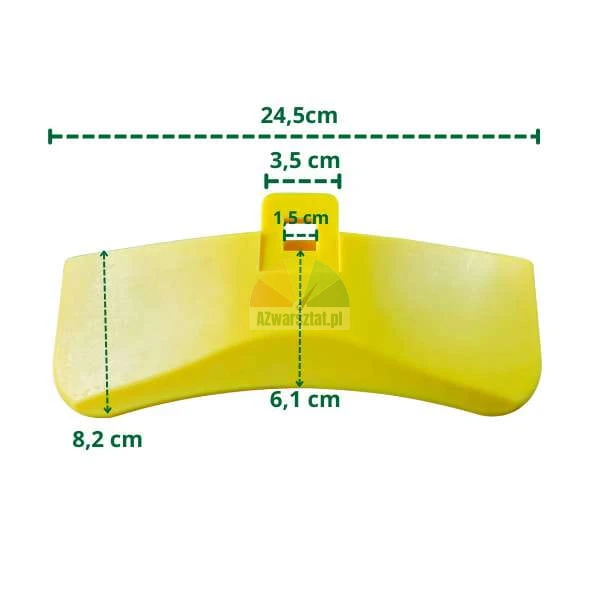

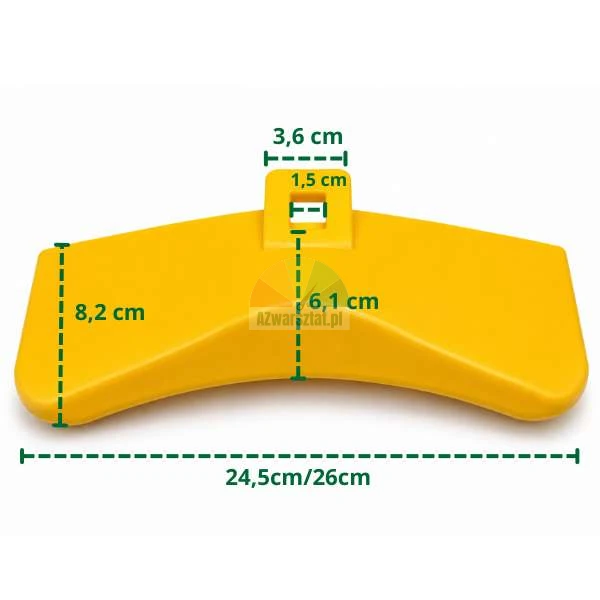

Exact dimensions – match them to your machine
Before making a purchase, please compare the dimensions below with your old cover or the dimensions of the metal mounting/demounting lever. Our product stands out for its precision manufacture:
- Total length: 24.5 cm (internal) / 26 cm (external)
- Height at the edges: 8.2 cm
- Height at the indented centre: 6.1 cm
- Width of the mounting tab: 3.6 cm
- Width of the mounting hole: 1.5 cm
- Shape: Contoured (fits perfectly to the curve of the mounting/demounting head)
Application and fitting on the mounting head

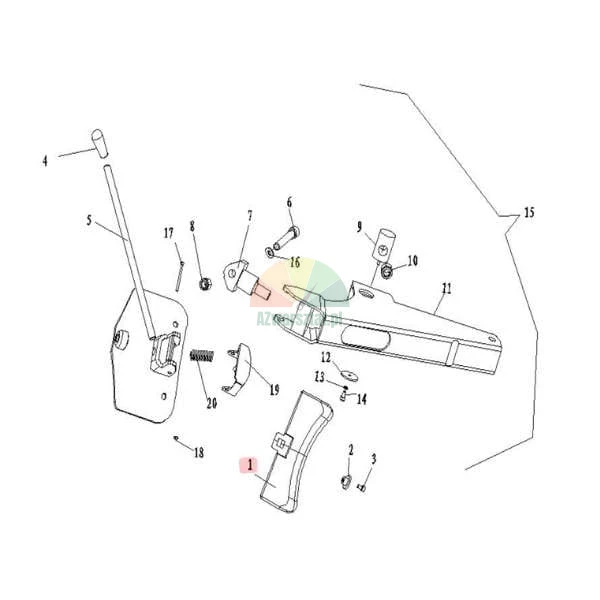

As shown in the attached technical diagram (the cover is component no. 1 in the drawing), the cover is fitted directly onto the steel pressure plate. Its contoured shape ensures that the part glides smoothly over the tyre without damaging its structure. An integrated mounting tab with a 1.5 cm wide hole allows the cover to be securely bolted or clamped in place, ensuring it does not slip off during operation under heavy loads.
By choosing spare parts from the azworkshop.eu range, you are investing in proven durability. Our components for tyre changers and wheel balancers guarantee trouble-free operation of your workshop throughout the season.
Product safety
Manufacturer
Jin Hoi International Trading Ltd
Office Tower 625 and 639 Nathan Rd
Rm1101-02.11 Hong Kong, China
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
