Pneumatic nipple type L (thread 12.7mm - plug 6mm)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-ZLAC-0036
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

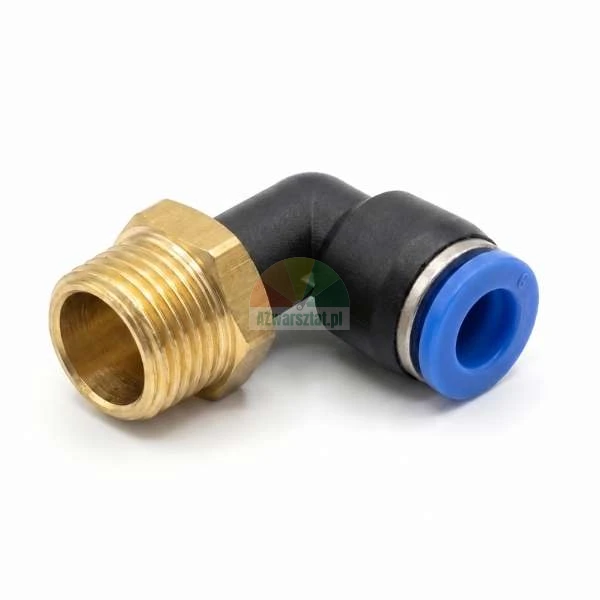

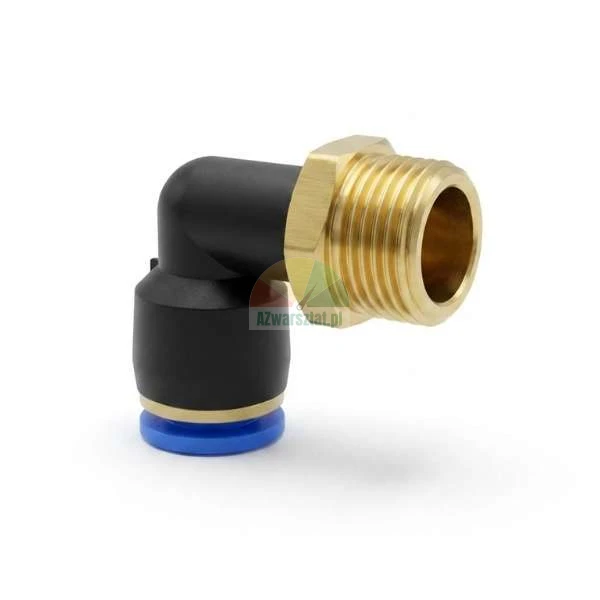

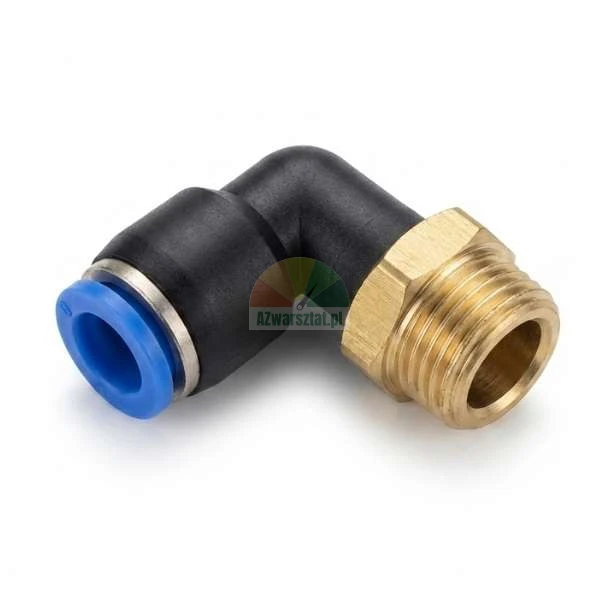

Angled Pneumatic Push-In Fitting Type L (Thread 12.7 mm - Plug 6 mm)
High quality angled push-in pneumatic fitting (type L), designed for the assembly, maintenance and repair of professional pneumatic systems. This component is essential for the proper functioning of vulcanising and workshop machines. It is ideal as a reliable spare part for vehicle lifts, tyre changers and wheel balancers available in our azworkshop.eu shop offer.
Instant connection and disconnection! The fitting is equipped with a modern push-in (quick-connect) system that allows you to securely and tightly fix a 6 mm diameter pneumatic hose with one simple movement, completely eliminating the need for additional tools and significantly reducing service time.

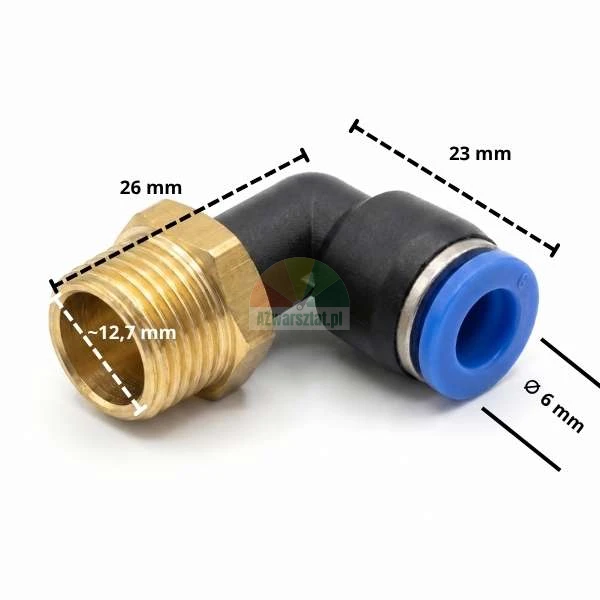

Exact dimensions and technical specifications:
- Shape: Angled (Type L) - ideal for routing hoses inside the confined space of the machine housing.
- Thread diameter (external): ~12.7 mm.
- Hose connection diameter (external): 6 mm (fitted with blue release ring).
- Length from axis to end of thread: 26 mm.
- Length from axis to end of plug: 23 mm.
- Materials: Durable brass (threaded part) and robust plastic resistant to damage and pressure surges.
Robust and safe to use in the workshop
The precisely threaded brass fitting guarantees a fully sealed pneumatic system and prevents loss of air pressure, which is crucial for the performance of cylinders in vehicle lifts or pneumatic units in assembly machines. The well-engineered design of the fitting perfectly withstands vibrations and the harsh conditions present in the daily work of any professional workshop.
Looking for proven and durable solutions? By choosing dedicated parts and components from azworkshop.eu, you can be sure that you are investing in top class equipment which will minimise the downtime of your workshop and guarantee trouble-free operation for years.
