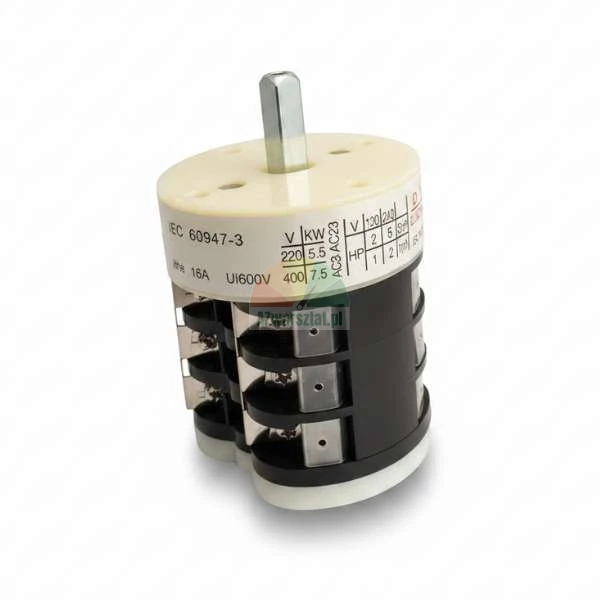

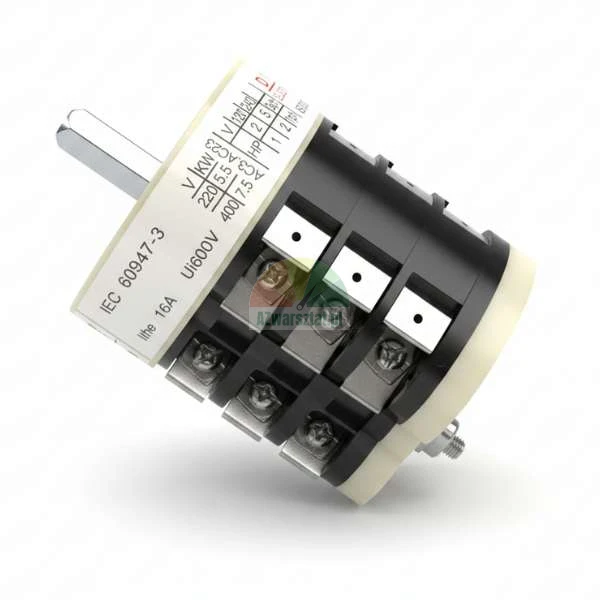

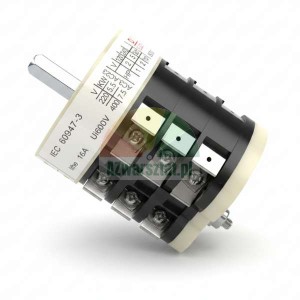

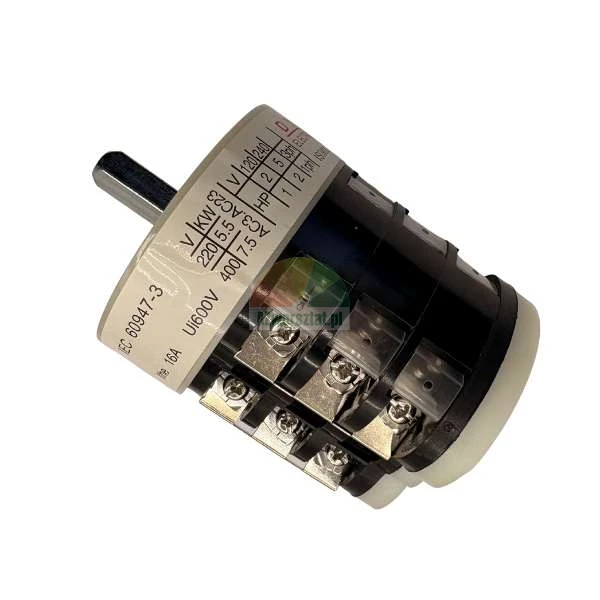

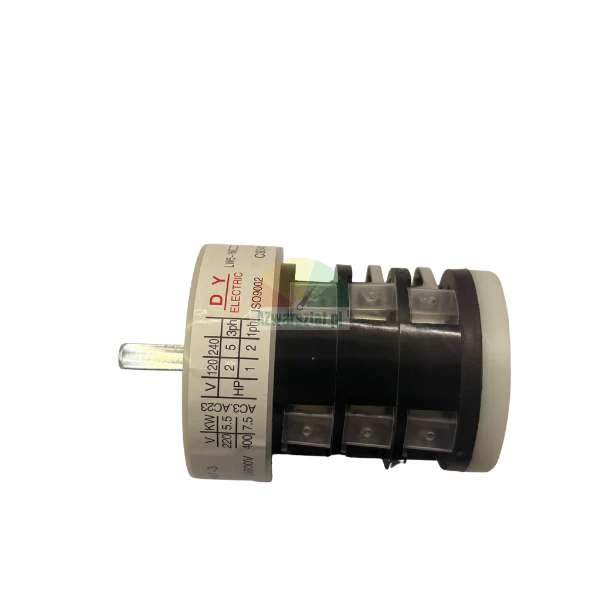

LW15-16 single-speed rotary switch
Welcome to AZ Workshop – your trusted shop for spare parts for vehicle lifts, wheel balancers and tyre changers. We offer a high-quality LW15-16 rotary switch (QBT-16), dedicated to single-speed tyre changers. It is a key control directly responsible for the reliable and smooth operation of the turntable during daily work in the tyre workshop.
Our switch has been designed in accordance with the stringent IEC 60947-3 standard, which ensures long contact life and a high level of safety at current loads of 16A.

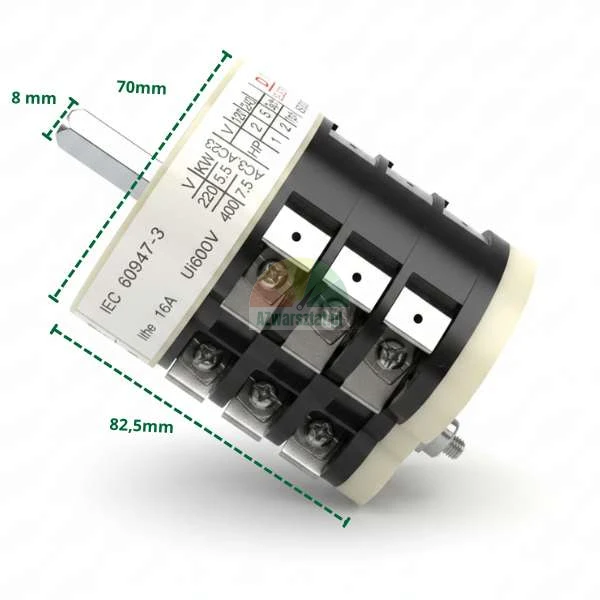

Technical data and exact dimensions
To ensure that the part will fit your machine, please refer to the following details taken directly from the technical specifications:
- Model: LW15-16 / QBT-16
- Rated current (Ith): 16A
- Rated insulation voltage (Ui): 600V (500V at the connector)
- Stem size: 8 mm square

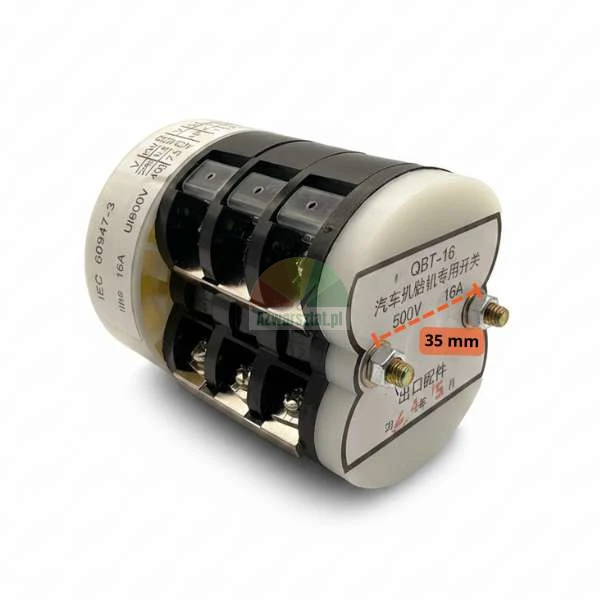

- Fastening screw spacing: 35 mm
- Overall body length: 82.5 mm
- Housing width: 70 mm
Why choose this model?
By choosing to buy from AZ Workshop, you can be sure that you will receive a product that has been tested and is ready for intensive use. The standard stem dimensions (8 mm) and the typical mounting screw spacing (35 mm) make the switch a universal replacement for many leading brands of tyre changers available on the market. The robust housing protects the internal components of the switch from dust and workshop contamination.
Technical note: Before finalising your order, be sure to measure the spacing between the mounting screws on the rear panel of your old switch and check the stem cross-section. This verification will give you complete certainty of a correct fit for the new part.
