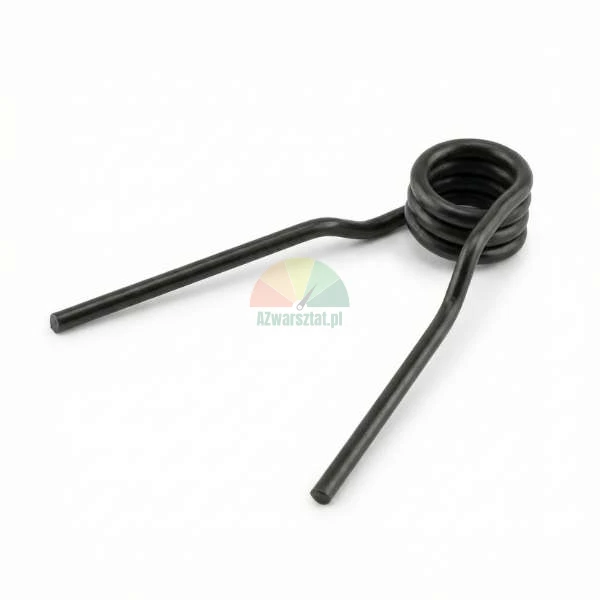

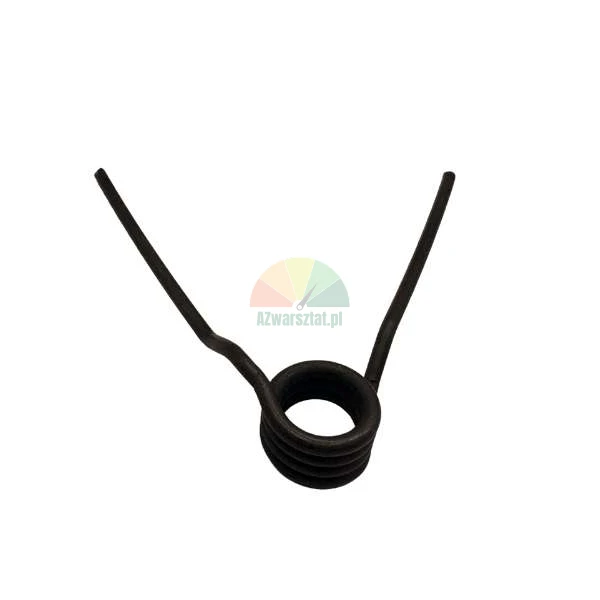

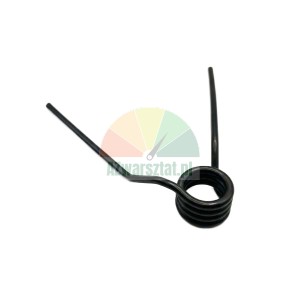

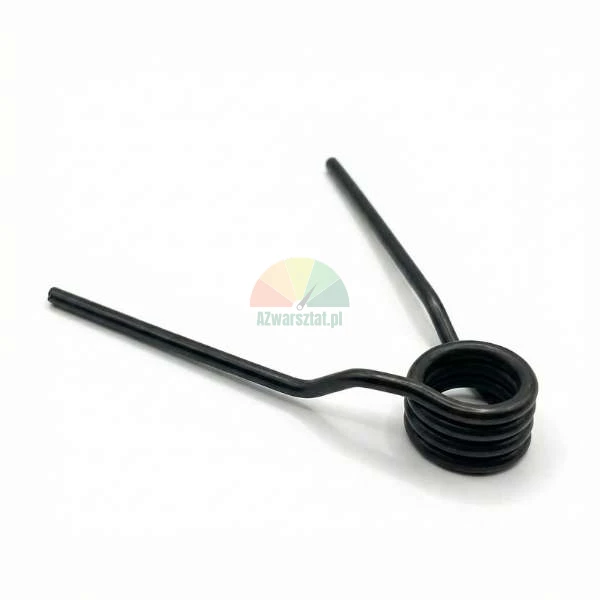

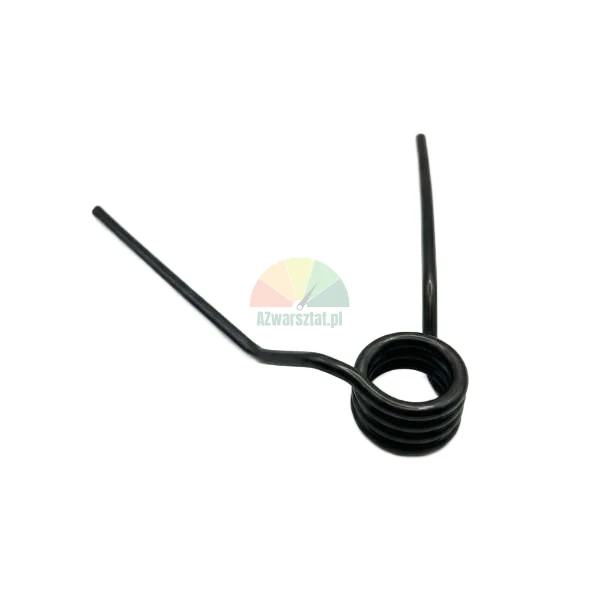

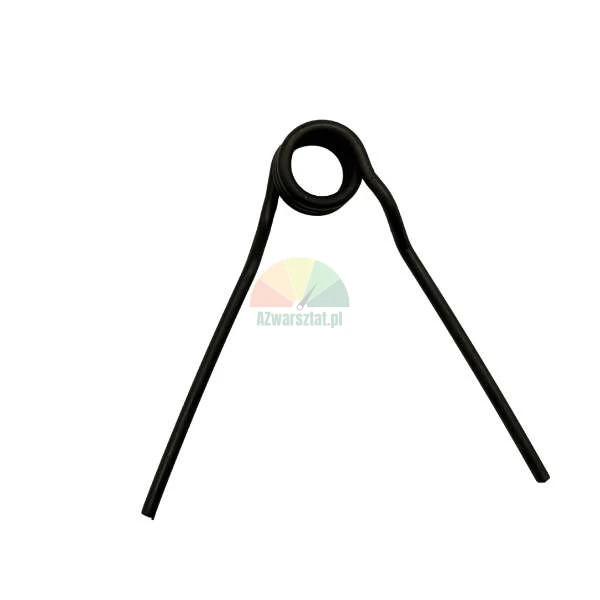

Torsion spring 21 mm for tyre changer pedal block

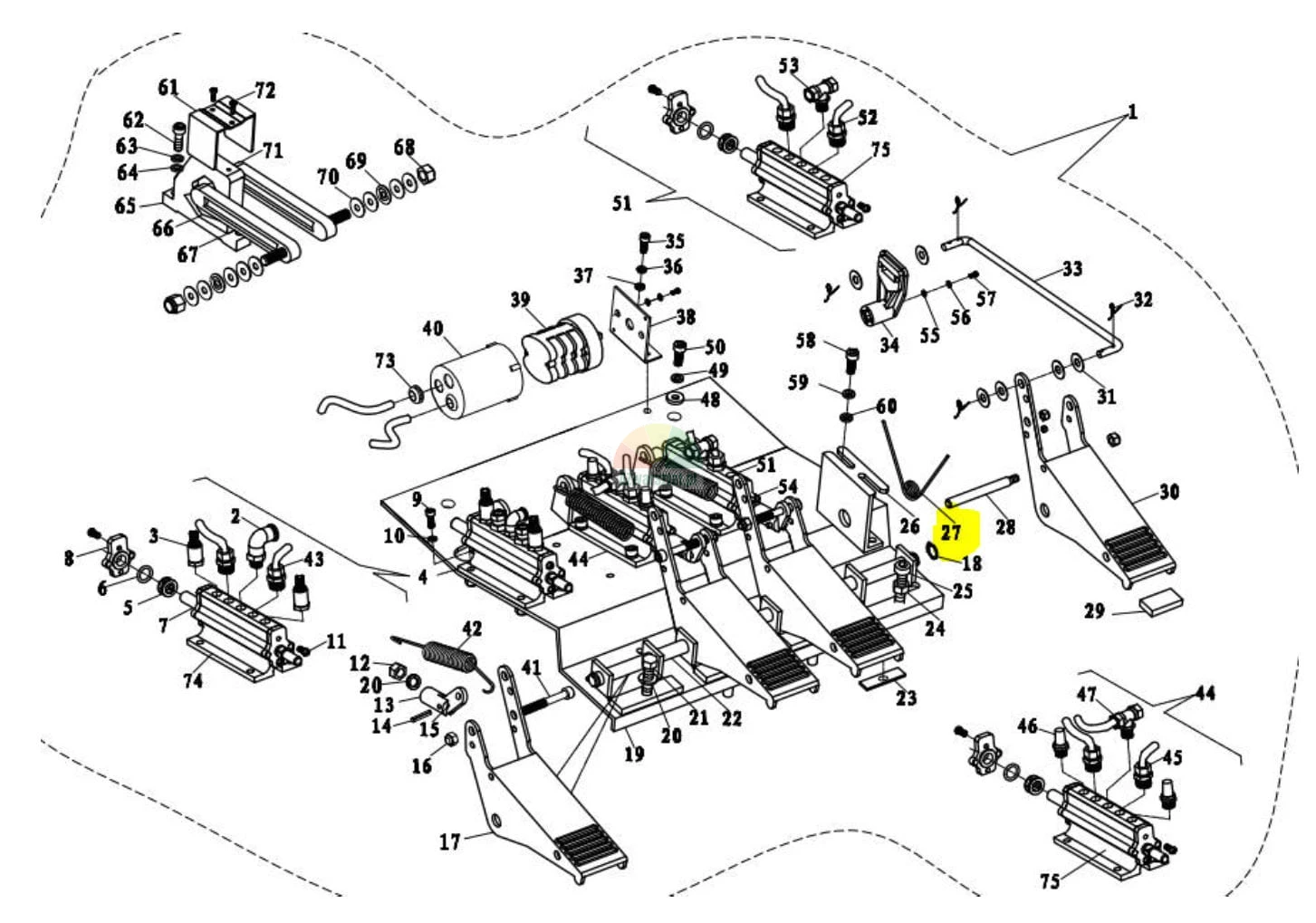

A high quality 21 mm torsion spring designed for tyre changers. It is a key component of the control mechanism, used in the pedal block of the tyre changer (marked as item number 27 on the attached diagram). It ensures that the pedal returns correctly to its initial position when released.
The solid workmanship and the appropriate elasticity of the wire used guarantee smooth and trouble-free operation of the mechanism, which directly translates into comfort and safety at work in your workshop.

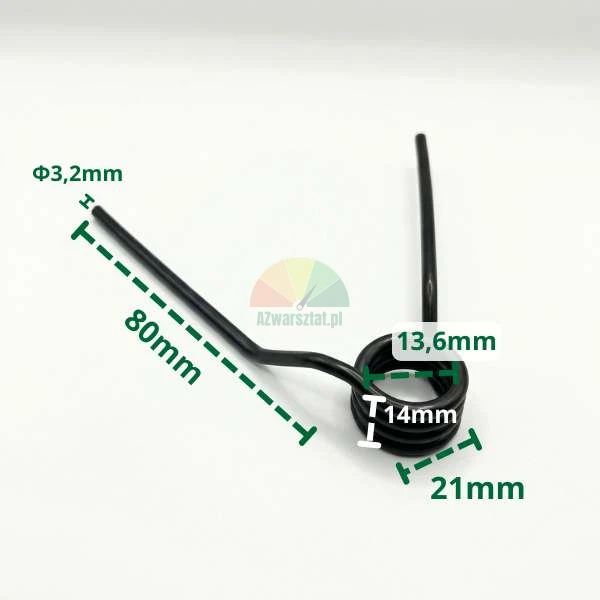

Technical parameters and dimensions:
- Outer diameter of the spring: 21 mm
- Inner coil diameter: 13.6 mm
- Wire thickness (Φ): 3.2 mm
- Height of coils: 14 mm
- Length of straight arm: 80 mm
Reliable parts for your workshop
A cracked or worn-out spring in the pedal block can lead to jamming and malfunctioning of the machine, so it is worth replacing it with components of proven origin. At azwarsztat.pl we supply the highest quality spare parts for vehicle lifts, tyre changers and wheel balancers. The spring presented here is ready for immediate installation in your device.
See the product in action
Watch a short presentation to see how to install this product in your machine.
