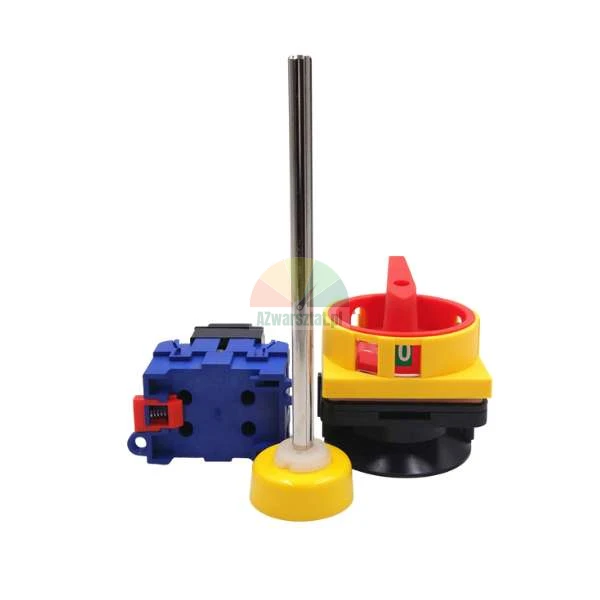

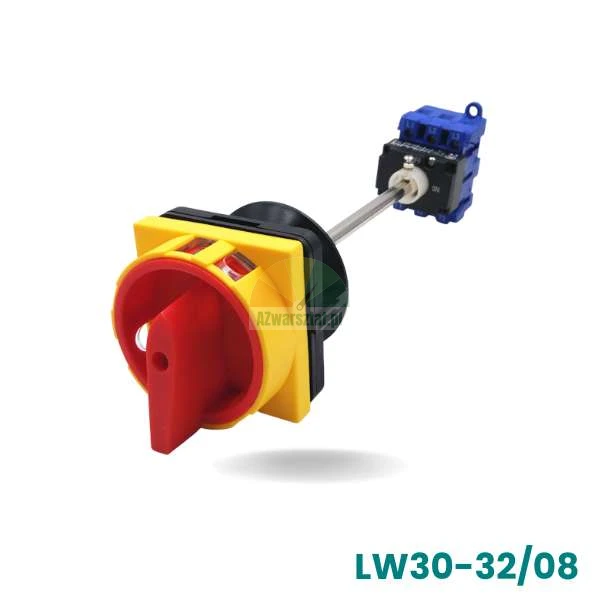

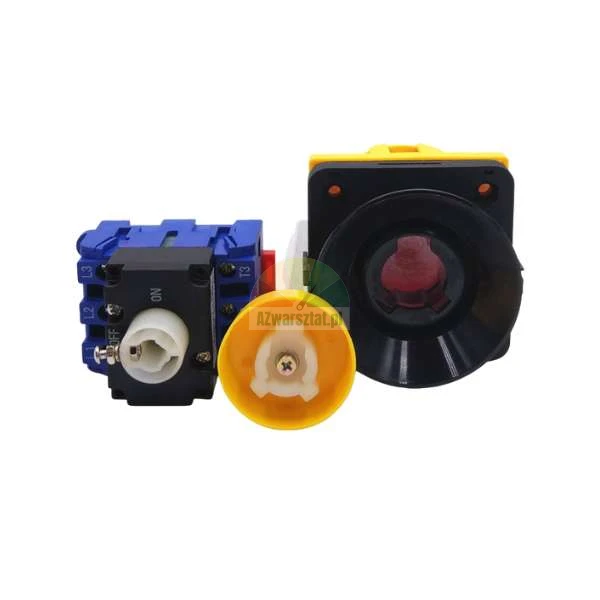

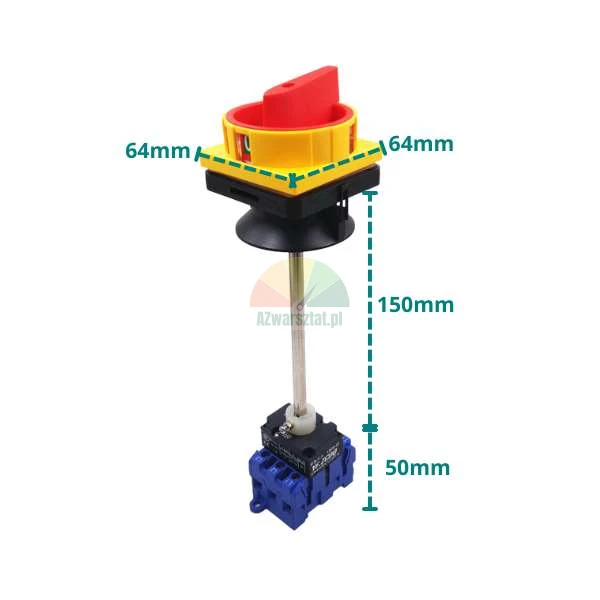

Safety main switch 32A LW30-32/08 with interlock
Product description
The 32A LW30-32/08 safety main switch with interlock is a reliable industrial rotary switch designed to safely disconnect the electrical supply to machinery, installations and workshop equipment. Equipped with an interlocking mechanism, it allows a padlock to be fitted in the '0' position, effectively preventing accidental or unauthorised energisation during service work.
The use of a safety main switch is required by occupational health and safety standards and machine safety regulations - a key component of any professional workshop installation!
Key features
- Rated current: 32A
- Rated voltage: up to 690V AC
- Lockable: Yes, padlockable in the "0" (OFF) position
- Degree of protection: IP20 (panel mounting) or IP65 (sealed enclosure version)
- Enclosure: Robust plastic, resistant to mechanical damage
- Mounting: On the panel or in an enclosure
- CE marked
Application
- Industrial machinery
- Production lines
- Electrical switchgear
- Control cabinets
- Compressors, pumps, fans
- CNC machines, machine tools
- Workshop and service equipment
The LW30-32/08 switch ensures full power control and operational safety - a must for any professional workshop!
Why choose this switch?
- Safety: Full isolation of all current paths, lockable - compliant with occupational health and safety regulations.
- Versatile: Universal application for different types of machines and installations.
- Easy to install: Simple assembly and clear markings.
- Durability: Robust, damage-resistant construction.
Technical specifications
- Type: Safety main switch (rotary)
- Model: LW30-32/08
- Rated current: 32A
- Rated voltage: up to 690V AC
- Degree of protection: IP20 / IP65
- Lockable: Yes
- Enclosure: Plastic
- Certification: CE
Looking for reliable protection for your workshop? The 32A LW30-32/08 safety main switch with interlock is your guarantee of safety and compliance!
