Calliper wheel rim width gauge for truck wheels
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-MIER-0009
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

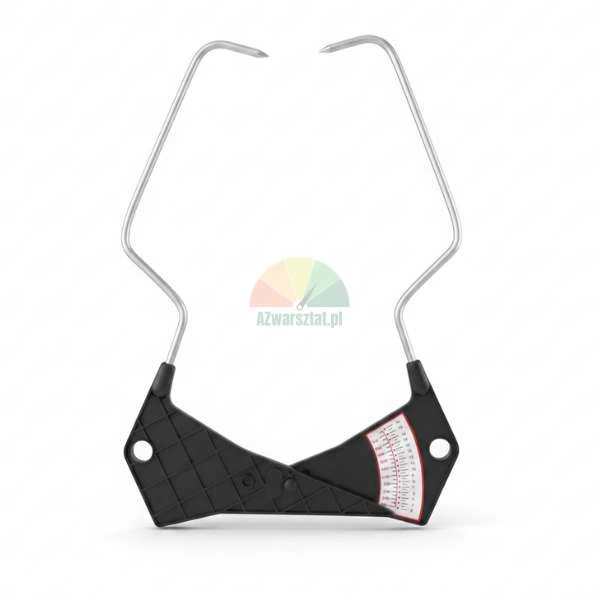

Wheel Width Gauge - Heavy-Duty Rim Width Measuring Calliper
High-quality measuring calliper designed for precise determination of the rim width of truck, bus and agricultural machinery wheels. It is an absolutely indispensable tool for correctly entering the dimensional parameters into the wheel balancer before starting the wheel balancing process.
Accurate measurement is essential! A correct reading of the rim width is a key step for perfect balancing of a heavy wheel. Our professional calliper ensures error-free measurement and minimises the risk of subsequent vibration of the running gear.
Dimensions and technical specifications
The design of the gauge has been optimised with large rims in mind. The elongated arms guarantee easy access and precise contact with the rim flange.

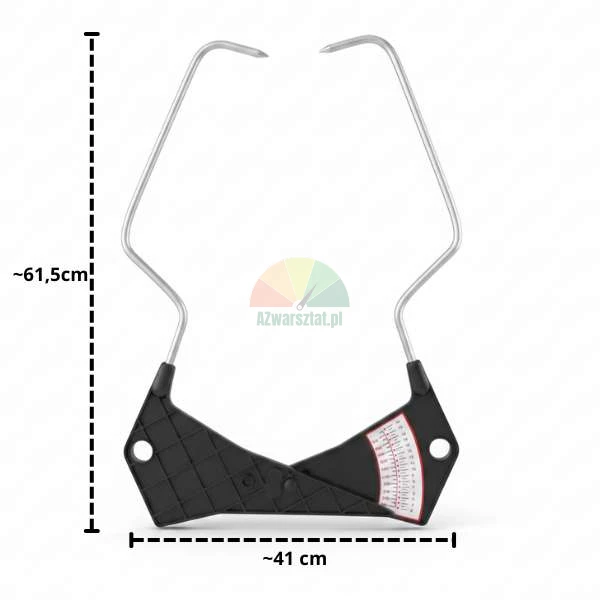

- Overall height: ~61.5 cm
- Base width: ~41 cm
- Application: Truck and machinery wheel balancers

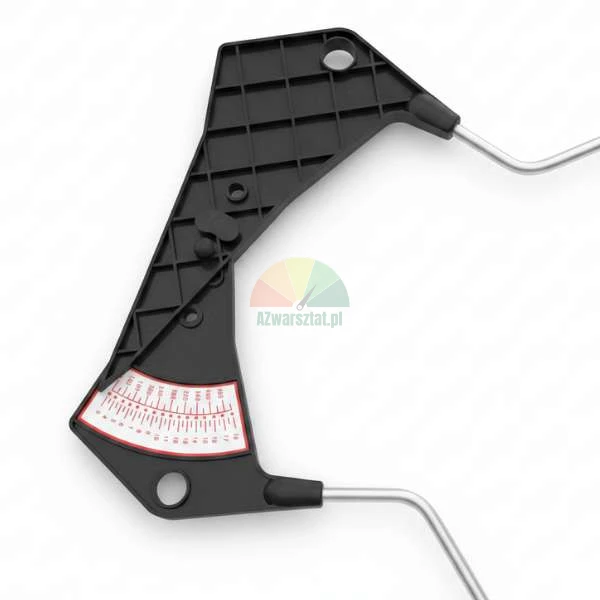

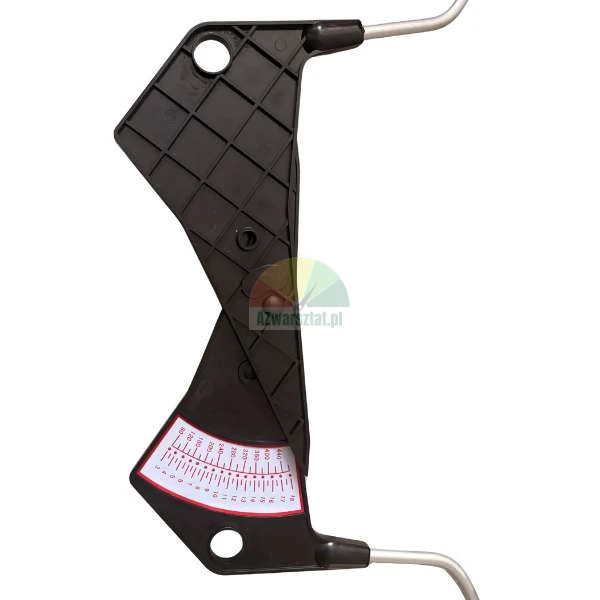

- Scale: Clear, integrated graduation for quick reading

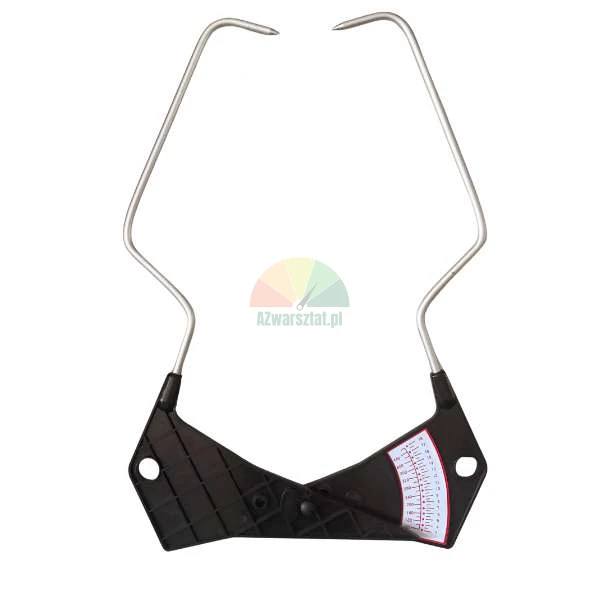

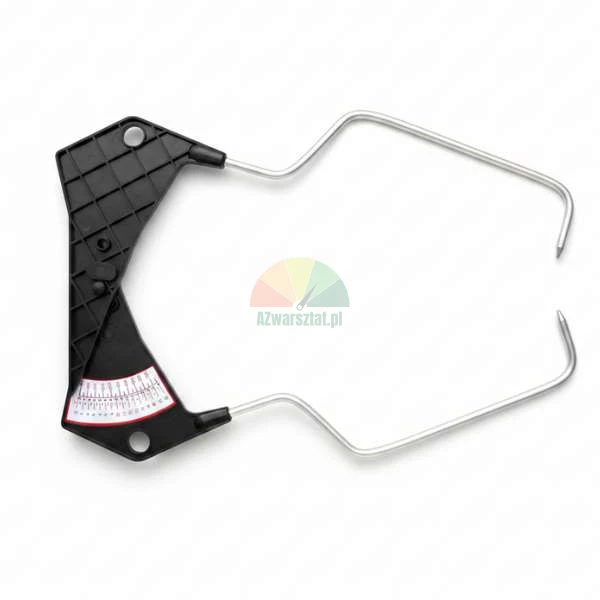

The metal arms of the calliper have been specially shaped and reinforced to comfortably span wide tyres. The heavy-duty plastic base makes the instrument relatively lightweight, yet resistant to mechanical damage and will successfully withstand daily, intensive work in tough workshop conditions.
Looking for other tyre service accessories? Check the full range of high-quality spare parts for vehicle lifts, tyre changers and wheel balancers in our azworkshop.eu shop and equip your workshop with reliable tools!
