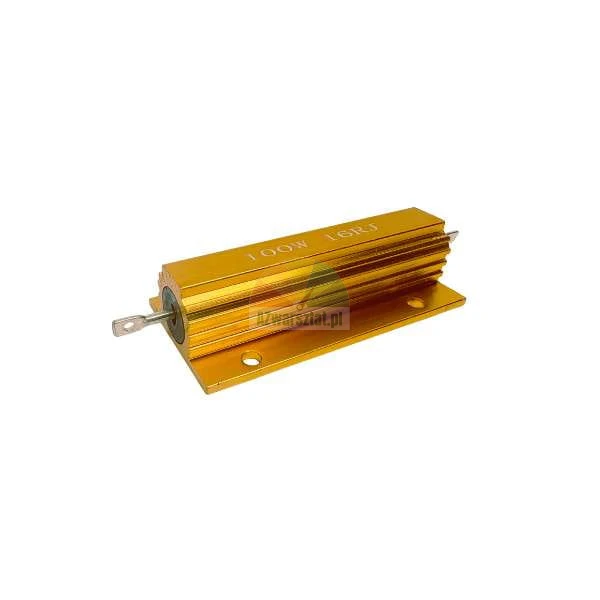

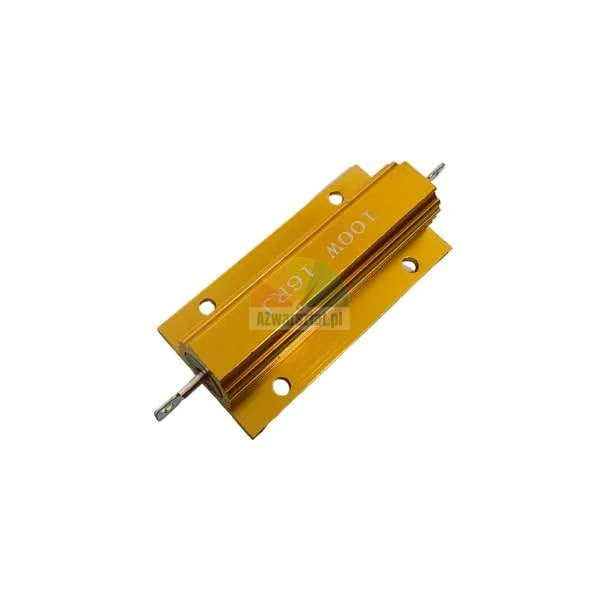

Wheel Balancer Brake Resistor 100W / 16Ω
The 100W brake resistor with a resistance of 16Ω is a key component of the braking system on wheel balancers. Its function is to absorb excess electrical energy, allowing the rotating wheel to be stopped effectively and safely.
Technical specifications:
- Power: 100W
- Resistance: 16Ω
- Housing material: aluminium

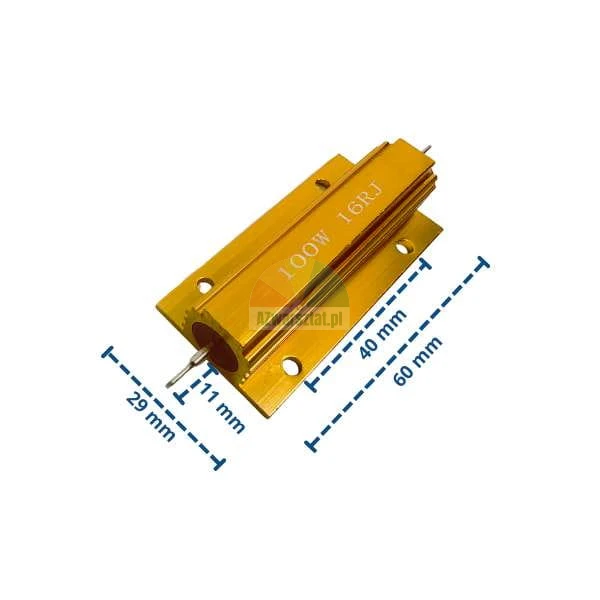

- Dimensions:
- Overall length: 83 mm
- Housing length: 60 mm
- Width: 29 mm
- Mounting hole spacing: 40 mm
Application: The brake resistor is used in wheel balancers, where it is responsible for effectively braking the spindle after the measurement is completed. Thanks to it, the balancing process runs smoothly and safely. It is compatible with most wheel balancers on the market, making it the ideal choice for tyre service centres and workshops.
Product advantages:
- High temperature resistance
- Durable aluminium housing for excellent heat dissipation
- Easy installation thanks to pre-installed cable lugs
- Compatible with many wheel balancer models
By choosing this resistor, you will ensure the reliable and precise operation of your wheel balancer, which is particularly important in professional workshops and service centres. Keep your wheel balancer up and running - choose a high-quality brake resistor and enjoy reliable operation!
