Balancing machine shaft 36 mm/18 cm
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: W-WALW-0007
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Threaded shaft for wheel balancer 36 mm x 3 mm
We offer a high-quality shaft for wheel balancers, designed for installation in wheel balancers requiring a 36 mm diameter mandrel. It is a consumable part responsible for precise wheel centring and secure fastening of the quick-release nut. The product is made of hardened steel, which ensures resistance to thread wear during intensive workshop use.

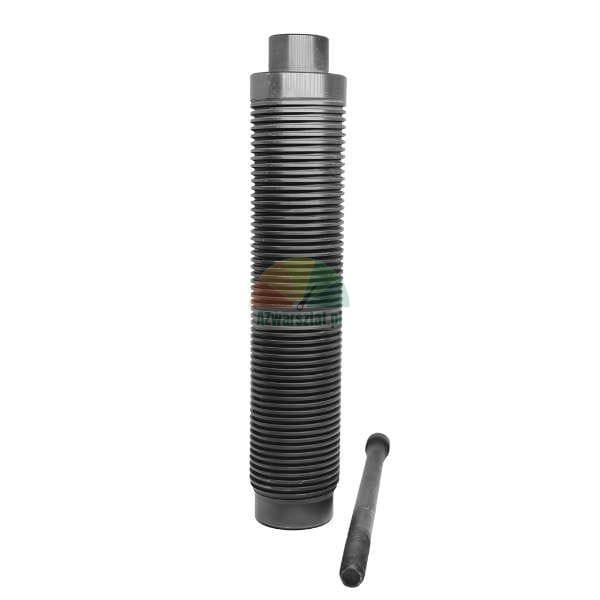

The set includes a complete threaded shaft and a dedicated Allen screw for attaching the shaft to the balancer body. An ideal solution as a spare part for popular Asian and European wheel balancers.

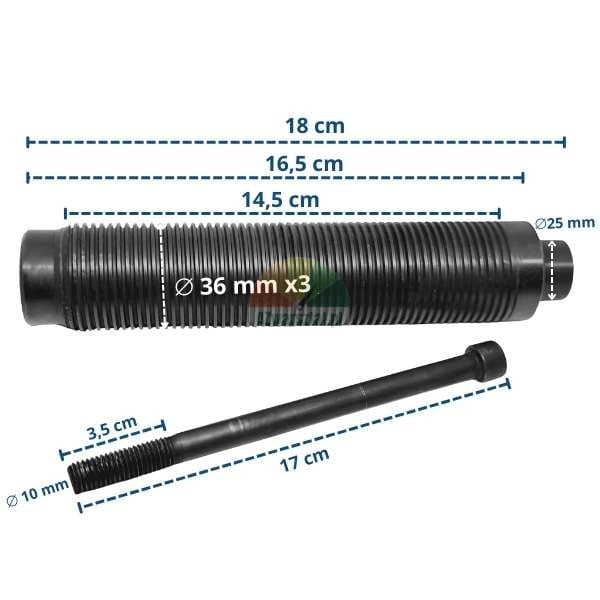

Detailed shaft dimensions
The precision of the thread is crucial for the service life of the quick-release nut. Below are the exact technical specifications of the offered component:
- Thread diameter: 36 mm
- Thread pitch: 3 mm (standard for this size)
- Total sleeve length: 18 cm
- Length of threaded part: 14.5 cm
- Mounting pin diameter (entering the machine): 25 mm

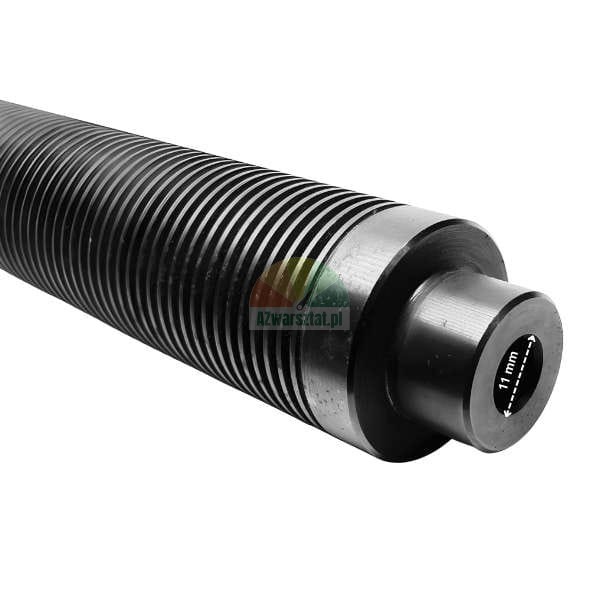

- Internal hole diameter for screw: 11 mm
Fastening screw parameters
The screw included in the set is necessary for the correct mounting of the shaft on the machine spindle.
- Total length of the screw: 17 cm
- Screw thread length: 3.5 cm
- Thread diameter: M10 (10 mm)
Important: Before making a purchase, we recommend measuring your old shaft. Verify the diameter, thread pitch and mounting method (diameter of the mandrel entering the wheel balancer) to avoid incompatibility.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)
The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
Can I return or exchange the part if it doesn't fit?
If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.
For the return to be accepted, the part must:
- be unused and undamaged,
- show no signs of installation,
- be sent back in its original or appropriately secured packaging.
We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
