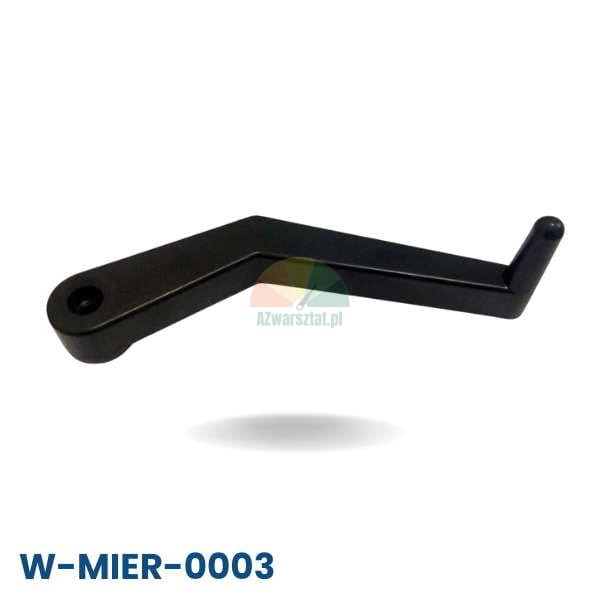

Distance and Diameter Measuring Tip for Wheel Balancers
The measuring tip is used to accurately measure the distance from the wheel balancer to the rim and the diameter of the fitted rim. This component is located on the gauge arm and is an indispensable part for wheel balancers with an automatic measuring system, as well as those with a manual scale reading.

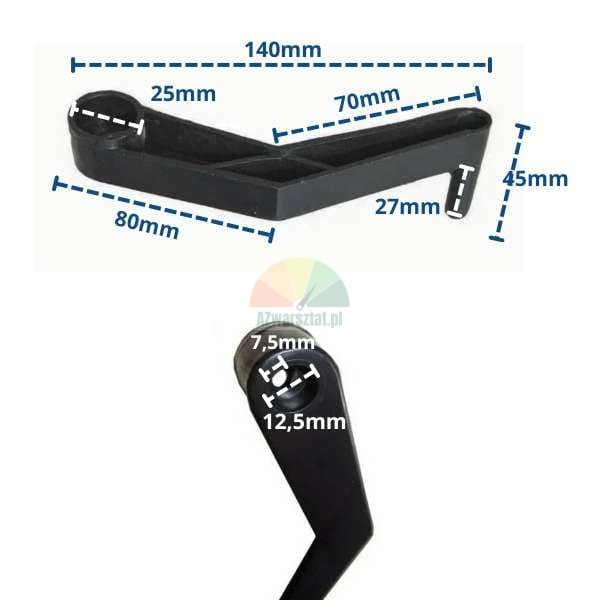

- Overall length: 140 mm
- Diameter of main part: 25 mm
- Length of arm to bend: 80 mm
- Outer diameter of tip: 12.5 mm
- Inner hole diameter: 7.5 mm
- Length of tip itself: 27 mm
Made of durable plastic, the tip is resistant to wear and ensures precise measurements, which is crucial for correct calibration and wheel balancing. The component is compatible with most wheel balancers, with both automatic and manual measuring systems.
The tip is easy to fit onto the gauge arm, allowing the unit to be quickly ready for use. This is an essential component to help you achieve accurate balancing results, ensuring optimum driving performance and longer tyre life.
Order today to increase the efficiency and accuracy of wheel balancing in your workshop. Our measuring tip offers reliable quality and consistent performance in your daily work.
Contact us to find out more about the tip's compatibility with your wheel balancer model and other available accessories.
